Kia Sephia (1994 – 1997) – fuse box diagram

Year of production: 1994, 1995, 1996, 1997

Passenger compartment fuse box

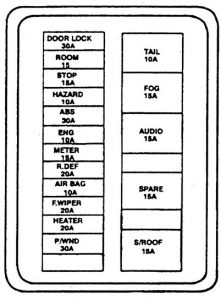

KIA Sephia - fuse box -  passenger compartment
KIA Sephia – fuse box – passenger compartment
Description Ampere rating [A] Protected component
TAIL 10 License light, tail light. rear combination light
AUDIO 15 Audio. cigarette lighter, remote control door mirror
S/ROOF 15 Sun roof motor
DOOR LOCK 30 Door locks
ROOM 15 Interior lights, clock, trunk compartment lamp
STOP 15 Rear stop light assemblies
HAZARD 10 Hazard warning
ABS 30 Anti-lock brake control unit, ASS modulator
ENG 10 Engine
METER 15 Instrument panel (gauges and warning lamps), turn signals
RR DEF 20 Rear window defroster
AUR BAG 15 Air bag system
WIPER 20 Windshield wiper and washer
HEATER 20 Blower motor
POWER WINDOW 30 Power window

Engine compartment

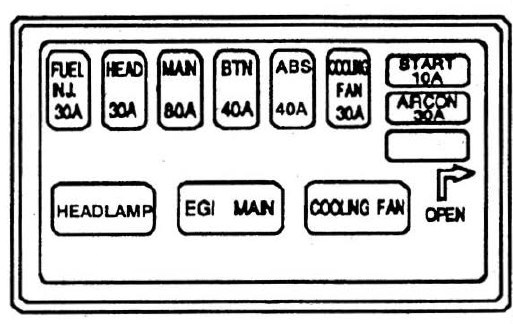

KIA Sephia - fuse box -  engine compartment
KIA Sephia – fuse box – engine compartment
Description Ampere rating [A] Protected component
FUEL INJ 30 Fuel injectors
HEAD 30 Head lights
MAIN 80 Power distribution
BTN 40 Generator, power distribution
ABS 40 ABS pump motor
COOLING FAN 30 Cooling fan
START 10 Start signal, fuel, pump
AIR CON 30 A/C compressor controls, cooling fans
TAIL RH 10

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
