Hyundai Ioniq Hybrid (2017) – fuse box diagram

Hyundai Ioniq Hybrid (2017) – fuse box diagram

Year of production: 2017

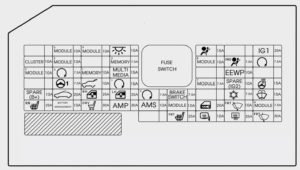

Instrument panel fuse panel

Hyundai Ioniq – fuse box – instrument panel
Hyundai Ioniq – fuse box – instrument panel
Fuse name Symbol Ampere rating [A] Circuit protected
Module 5 10 Electro Chromic Mirror, A/V & Navigation Head Unit, Audio, Driver IMS Module, A/T Shift Lever Indicator, A/C Control Module, Rear Seat Warmer Module, Console Switch LH/RH, Head Lamp Leveling Device Actuator LH/RH, Vess Unit, Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module
Module 4 10 Lane Departure Warning Unit, Crash Pad Switch, AEB Unit, Blind Spot Detection Radar LH/RH
Interior Lamp 10 Front Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp, Ignition Key ILL. & Door Warning Switch, Luggage Lamp
Air bag 15 SRS Control Module
Ignition 1 25 PCB Block
Cluster 10 Instrument Cluster
Module 3 10 BCM, DCT Shift Lever, Stop Lamp Switch, Driver Door Module, Passenger Door Module
Memory 2 7,5 Active Air Flap LH/RH
Module 8 10 Active Air Flap LH/RH, Electric Water Pump (Engine), VPD Sensor, BMS Control Module, E/R Junction Block
Air bag Indicator 7,5 A/C Control Module, Instrument Cluster
Start 7,5 Burglar Alarm Relay, Transaxle Range Switch
Module 2 10 E/R Junction Block, Wireless Charger Unit, BCM, USB Charging Connector, Smart Key Control Module, Audio, A/V & Navigation Head Unit, Power Outside Mirror Switch, AMP
Button Start 3 7,5 Immobilizer Module, Smart Key Control Module
Memory 1 10 Wireless Charger Unit, Instrument Cluster, Driver Ims Module, Rain Sensor, BCM, A/C Control Module, Auto Light & Photo Sensor, Driver Door Module, Passenger Door Module, ICM Relay Box (Outside Mirror Folding/Unfolding Relay)
Multi Media 10 Audio, A/V & Navigation Head Unit
Electric Water Pump 10 Electric Water Pump (HEV)
Electric
Power Steering 1
7,5 EPS Unit
Tailgate 10 Tail Gate Relay, Fuel Filler Switch, Fuel Filler Actuator
Button Start 1 15 Smart Key Control Module
Module 7 7,5 Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module, Rear Seat Warmer Module
Heated Steering 15 BCM
Sunroof 20 Sunroof Motor
Power Window Right-hand 25 Power Window (RH) Relay, Power Window Main Switch, Passenger Power Window Switch (LHD), Rear Power Window Switch (RH), Driver Safety Power Window Module (LHD), Passenger Power Window Switch (RHD)
Power Window
Left-hand
25 Power Window (LH) Relay, Power Window Main Switch, Passenger Power Window Switch (RHD), Rear Power Window Switch (LH), Driver Safety Power Window Module (RHD), Passenger Power Window Switch (LHD)
Button Start 2 7,5 Immobilizer Module, Smart Key Control Module, Start/Stop Button Switch
Brake Switch 7,5 Stop Lamp Switch, Smart Key Control Module
Air conditioner 7,5 Ionizer, A/C Control Module, Electronic A/C Compressor, E/R Junction Block
Washer 15 Multifunction Switch
Seat Heater Rear 25 Rear Seat Warmer Module
Battery
Management
System
10 BMS Control Module
Power Seat Dr 30 Driver Seat Manual Switch
AMP 30 AMP
AMS 30 Battery Sensor
Module 1 10 Driver Power Outside Mirror, Passenger Power Outside Mirror
Door Lock 20 Door Lock/Unlock Relay, ICM Relay Box (Dead Lock Relay)
Wiper Front 2 10 Wiper Motor, PCB Block (Front Wiper (Low) Relay)
Module 6 7,5 BCM, Smart Key Control Module
Seat Heater Front 25 Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module
Heated Mirror 10 Driver Power Outside Mirror, Passenger Power Outside Mirror, A/C Control Module
Rear Heated 25 Rear Defogger (+) (Upper)
Wiper Front 1 30 Wiper Motor, PCB Block (Front Wiper (Low) Relay)

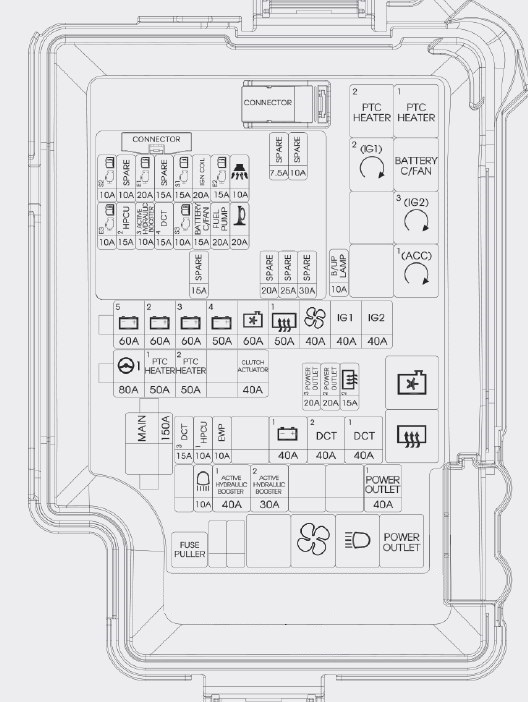

Engine compartment fuse panel

Hyundai Ioniq – fuse box – engine compartment
Hyundai Ioniq – fuse box –
engine compartment
Type Symbol Fuse Rating Circuit protected
Multi Fuse 150 Low Voltage DC-DC Converter, E/R Junction Block
60 PCB Block
60 IGPM
60 IGPM
50 IGPM
60 Engine Room Junction Block
50 Engine Room Junction Block
40 Engine Room Junction Block
40 Without Smart Key : Ignition Switch
With Smart Key : E/R Junction Block
40 Without Smart Key : Ignition Switch
With Smart Key : E/R Junction Block
80 EPS Unit
50 Engine Room Junction Block
50 Engine Room Junction Block
40 Clutch Actuator
Fuse 15 TCM
10 HPCU
10 Electric Water Pump (Engine)
40 IGPM
40 TCM
40 TCM
10 Engine Room Junction Block
40 Multipurpose Check Connector, IBAU
30 Multipurpose Check Connector, IBAU
40 Engine Room Junction Block
10 Audio, Rear Combination Lamp (IN) LH/RH, Electro Chromic Mirror
20 Cigarette Lighter
20 Power Outlet
15 IGPM, Rear Defogger (+) (Lower)
10 Engine Room Junction Block, Purge Control Solenoid Valve, Mass Air Flow Sensor
20 ECM
15 Oxygen Sensor (Up), Oxygen Sensor (Down)
20 Ignition Coil #1~#4
15 ECM
10 Burglar Alarm Horn Relay
10 ECM
15 HPCU, Clutch Actuator (HEV)
10 Multipurpose Check Connector, IBAU
15 DCT Shift Lever, TCM, Transaxle Range Switch
10 Fuel Pump Relay, Camshaft Position Sensor #1 (Intake), Camshaft Position Sensor #2 (Exhaust), Oil Control Valve #1 (Intake), Oil Control Valve #2 (Exhaust)
15 Engine Room Junction Block
20 Fuel Pump Relay
20 Horn Relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
