Hyundai H-100 Truck (2010 – 2012) – fuse box diagram

Hyundai H-100 Truck (2010 – 2012) – fuse box diagram

Year of production: 2010, 2011, 2012

Engine compartment

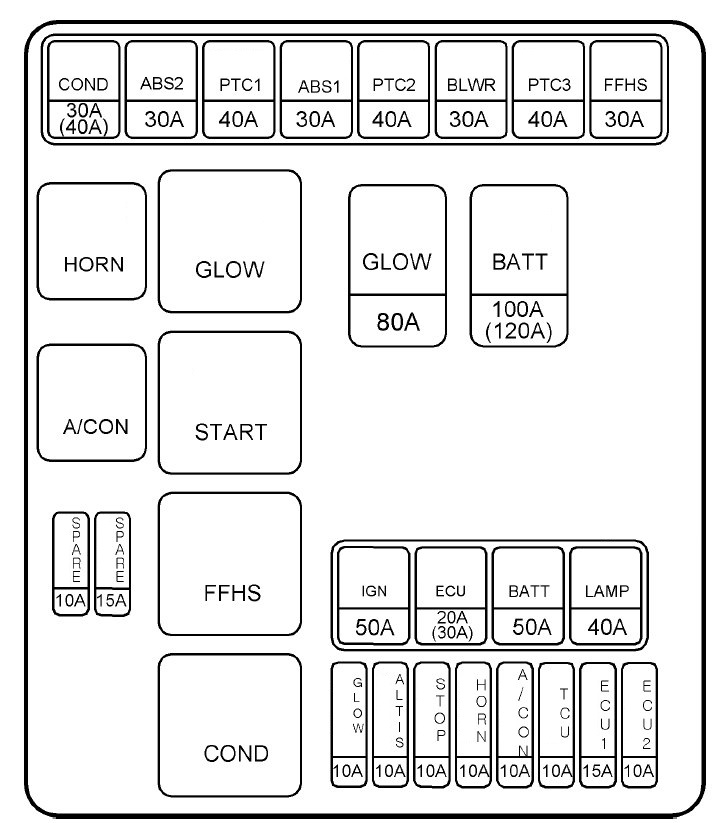

Hyundai H-100 Truck – fuse box – engine compartment
Hyundai H-100 Truck – fuse box – engine compartment
Description Ampere rating [A] Protected component
FUSIBLE LINK BATT 100 Generator
GLOW 80 Glow relay
IGN 50 Start relay, lgnition switch
ECU 20 Engine control relay
BATT 50 I/P Fuse box (A/Con, Hazard, DR Lock), Power connector
LAMP 40 P/WDW fusible link, Front Fog fuse, Tail lamp relay
COND 30 Condenser fan relay
ABS2 30 Not used
PTC1 40 Not used
ABS1 30 Not used
PTC2 30 Not used
BLWR 30 Blower relay
PTC3 40 Not used
FFHS 30 Not used
FUSE GLOW 10 ECM
ALT_S 10 Generator
STOP 10 Stop lamp switch
HORN 10 Horn relay
A/CON 10 A/Con relay
TCU 10 Not used
ECU1 15 Not used
ECU2 15 Not used

Inner Panel

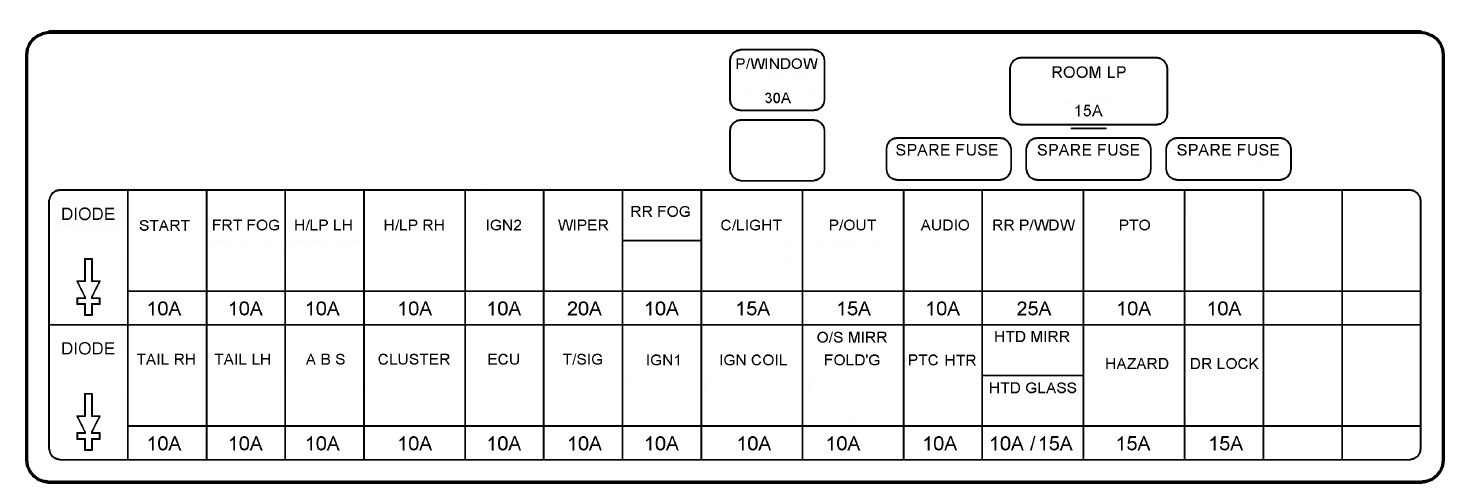

Hyundai H-100 Truck – fuse box – inner panel
Hyundai H-100 Truck – fuse box – inner panel
Description Ampere rating [A] Protected component
FUSIBLE LINK P/WINDOW 30 Power window relay
FUSE START 10 Start relay, Glow control module, ECM
FRT FOG 10 Front fog lamp relay
H/LP LH 10 Left head lamp, Instrument cluster
H/LP RH 10 Right head lamp
IGN 2 10 Heater control switch, ETACM, Head lamp leveling switch, Blower relay
WIPER 20 Wiper motor, Multi-function switch
RR FOG 10 Rear fog lamp relay
C/LIGHT 15 Cigarette lighter
P/OUT 15
AUDIO 10 Audio
RR P/WDW 25 Power window switch
PTO 10
TAIL RH 10 Right position lamp, Right rear combination lamp, License plate lamp
THIL LH 10 Left position lamp, Left rear combination lamp
ABS 10
CLUSTER 10 Instrument cluster, Generator resister
ECU 10 ECM
T/SIG 10 Hazard switch, Back-up lamp switch
IGN 1 10 ETACM
IGN COIL 10 EGR solenoid valve #1, #2 (2.5 TCI), Glow control module (2.6 N/A), Fuel water sensor, Neutral switch
O/S MIRR FOLD’G 10 Not used
PTC HTR 10 Heater control switch
HTD GLASS 15 Rear window defroster switch
HAZARD 15 Hazard switch
DR LOCK 15 ETACM, Left front door lock actuator
ROOM LP 15 Room lamp, Door warning switch, Audio, ETACM

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
