Hyundai Accent (2006) – fuse box diagram

Hyundai Accent (2006) – fuse box diagram

Year of production: 2006

Fuse panel located in the engine compartment

Gasoline Engine

Hyundai Accent - wiring diagram - fuse box diagram - engine compartment

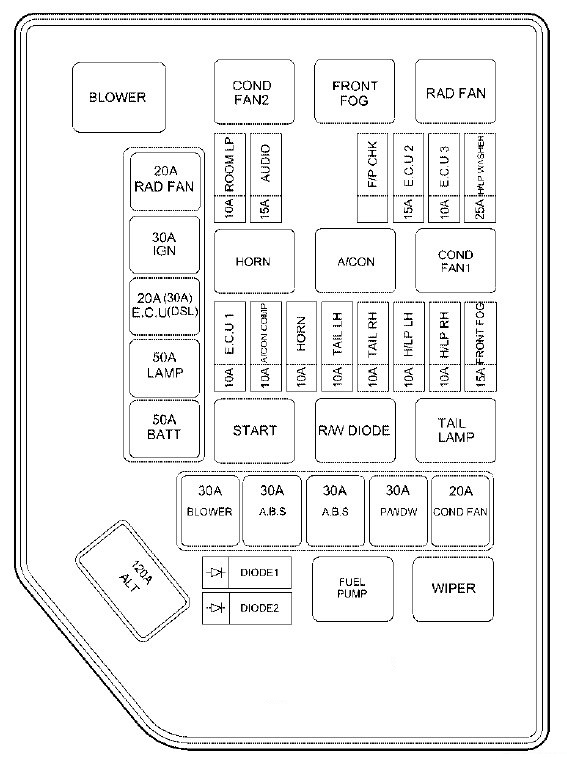

Hyundai Accent – wiring diagram – fuse box diagram – engine compartment (gasoline engine)
Description Ampere rating [A] Protected component
FUSIBLELINK ALT 120 Charging (Generator)
BATTERY 50 Fuse 6, 7, 8, 9, Horn fuse, Room lamp fuse
LAMP 50 Head lamp fuse, Front fog lamp fuse, Tail lamp relay, H/LP washer fuse
ECU 20 Engine control relay, Generator, Fuel pump relay, ECU #3 fuse
IGN 30 Ignition power source, Start relay
RAD FAN 20 Radiator fan control
BLOWER 30 Blower control
ABS 30 ABS control, ABS bleeding connector
ABS 30 ABS control, ABS bleeding connector
P/WDW 30 Power window
COND FAN 20 Condenser fan control
FUSE ECU #1 10 Radiator fan, Condenser fan, ECM, Oxygen sensor, Purge control valve, SMATRA, Glow plug relay, Heater relay, Stop lamp switch
A/CON COMP 10 A/C relay
HORN 10 Horn relay
TAIL LH 10 Illumination lamps, Left rear combination lamp, License lamp, DRL control, Position lamp, H/LP washer relay
TAIL RH 10 Right rear combination lamp, License lamp, Position lamp
H/LP LH 10 Left head lamp, DRL control, Instrument cluster
H/LP RH 10 Right head lamp
FRONT FOG 15 Front fog lamp relay
ROOM LP 10 Instrument cluster, Courtesy lamp, Trunk room lamp, ETACM, DLC, Door warning, Multipurpose check connector
AUDIO 15 Audio, Digital clock, Power antenna, A/C switch, Rear fog lamp switch
ECU #2 15 Idle speed actuator, ECM, Camshaft position sensor, EGR actuator, Throttle plate actuator
ECU #3 ECM
H/L WASHER 25 Head lamp washer motor
F/PUMP CHK (E50) Fuel pump relay, Fuel pump motor

Diesel Engine

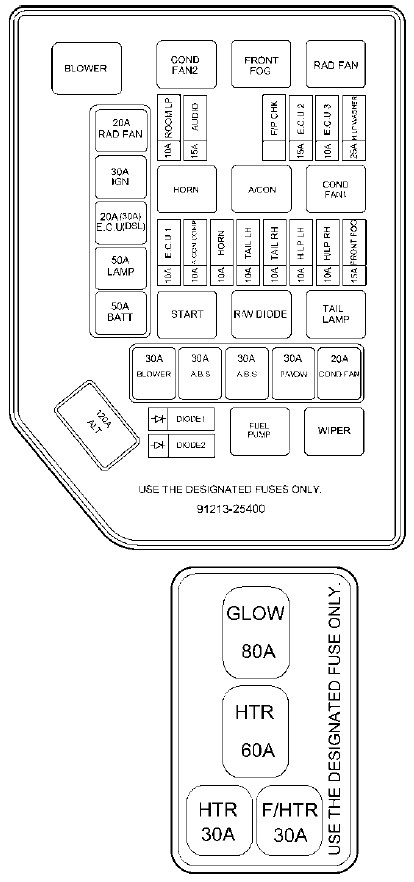

Hyundai Accent - wiring diagram - fuse box diagram - engine compartment (diesel engine)
Hyundai Accent – wiring diagram – fuse box diagram – engine compartment (diesel engine)
Description Ampere rating [A] Protected component
FUSIBLELINK ALT 120 Charging (Generator)
BATTERY 50 Fuse 6, 7, 8, 9, Horn fuse, Room lamp fuse
LAMP 50 Head lamp fuse, Front fog lamp fuse, Tail lamp relay, H/LP washer fuse
ECU (DSL) 30 Engine control relay, Generator, Fuel pump relay, ECU #3 fuse
IGN 30 Ignition power source, Start relay
RAD FAN 20 Radiator fan control
BLOWER 30 Blower control
ABS 30 ABS control, ABS bleeding connector
ABS 30 ABS control, ABS bleeding connector
P/WDW 30 Power window
COND FAN 20 Condenser fan control
HTR 60 Assist Heater
HTR 30 Assist Heater
GLOW 80 Glow Plug relay
F/HTR 30 Fuel Heater
FUSE ECU #1 10 Radiator fan, Condenser fan, ECM, Oxygen sensor, Purge control valve, SMATRA, Glow plug relay, Heater relay, Stop lamp switch
A/CON COMP 10 A/C relay
HORN 10 Horn relay
TAIL LH 10 Illumination lamps, Left rear combination lamp, License lamp, DRL control, Position lamp, H/LP washer relay
TAIL RH 10 Right rear combination lamp, License lamp, Position lamp
H/LP LH 10 Left head lamp, DRL control, Instrument cluster
H/LP RH 10 Right head lamp
FRONT FOG 15 Front fog lamp relay
ROOM LP 10 Instrument cluster, Courtesy lamp, Trunk room lamp, ETACM, DLC, Door warning, Multipurpose check connector
AUDIO 15 Audio, Digital clock, Power antenna, A/C switch, Rear fog lamp switch
ECU #2 15 Idle speed actuator, ECM, Camshaft position sensor, EGR actuator, Throttle plate actuator
ECU #3 ECM
H/L WASHER 25 Head lamp washer motor
F/PUMP CHK (E50) Fuel pump relay, Fuel pump motor

Fuse panel located in the passenger compartment

Hyundai Accent - wiring diagram - fuse box diagram - inner panel

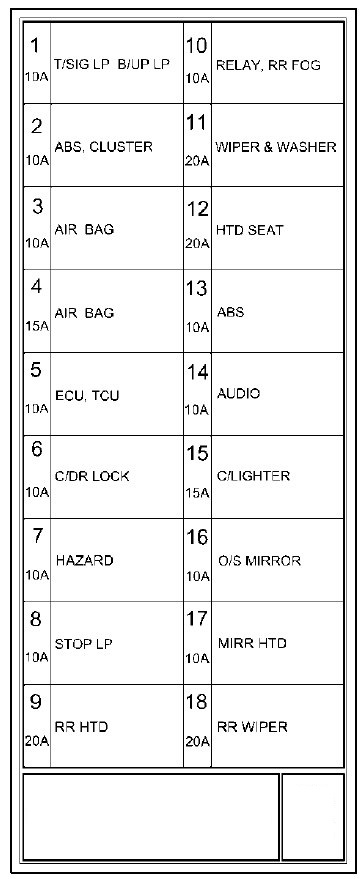

Hyundai Accent – wiring diagram – fuse box diagram – inner panel
Fuse Ampere rating [A] Protected companent
1 10 Hazard warning, Back-up lamp switch, Transaxle range switch, A/T shift & key lock control module
2 10 ETACM, Pre-Excitation resistor, Instrument cluster, Seat belt timer
3 10 Instrument cluster
4 15 Air bag
5 10 ECM, A/T shift lever, Transaxle range switch, Mass air flow sensor, Vehicle speed sensor, Water sensor
6 10 Power door lock
7 10 Hazard warning, ETACM
8 10 Stop lamp, A/T shift lever, A/T key interlock solenoid
9 20 Rear window defogger
10 10 Head lamp, Power window, Head lamp leveling, Head lamp washer, ETACM, Front fog lamp, Blower control, Rear intermittent washer, Fuel filter relay
11 20 Front wiper & washer
12 20 Seat warmer
13 10 ABS control, ABS bleeding
14 10 Digital clock, Audio, A/T shift & key lock control module
15 15 Cigarette lighter
16 10 Power outside mirror
17 10 Rear window & outside mirror defogger
18 20 Rear wiper



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
