Year of production: 2008, 2009

Interior fuse box

Honda S2000 – fuse box – interior
Honda S2000 – fuse box – interior
Number Ampere rating [A] Circuit protected
1 7,5 Windshield Wiper, Auto Stop Signal
2 15 Washer Motor
3 7,5 IGP (DBW)
4 7,5 IGP (LAF)
5 10 Accessory Socket
6 20 Windshield Wiper
7 7,5 Tum signal  Light
8 15 ACG
9 7,5 Meter, Backup Lights
10 Not Used
11 7,5 Engine Start
12 15 Fuel Pump, SRS
13 10 SRS
14 10 Daytime Running Lights
15 10 Keyless Entry
16 7,5 Backup
17 7,5 Interior Light
18 10 Small Lights
19 15 Radio*
20 7,5 TPMS
21 7,5 Heater Control, Cooling Fan Relay
22 7,5 Power Mirrors
23 20 Right Power Window
24 20 Left Power Window
25 15 IG Coil
26 20 LAF
27 15 DBW
*: if equipped

Engine compartment fuse box (main fuse box)

Honda S2000 – fuse box – engine compartment (main box)
Honda S2000 – fuse box – engine compartment (main box)
Number Ampere rating [A] Circuit protected
1 Lighting 1 Relay
2 Lighting 2 Relay
3 Horn Relay
4 40 Power Window Motor
5 20 Right Roof Motor*1
6 20 Accessory Socket
7 30 BackUp ACC
8 20 Left Soft TopMotor*1
9 40 Heater Motor
10 20 Condenser Fan*2
11 20 DBW
12 Condenser Fan Relay*2
13 Cooling Fan Relay
14 Magnetic Clutch Relay*2
15 20 Right Headlight
16 15 ACGS
17 10 Hazard Warning Lights
18 20 Cooling Fan
19 Not used
20 10 Stop
21 20 Left Headlight
22 20 VSA F/S
23 30 VSA Motor
24 100 Battery
25 40 IGl Main
*1 : Except CR models
*2 : if equipped

Engine compartment fuse box (auxiliary fuse box)

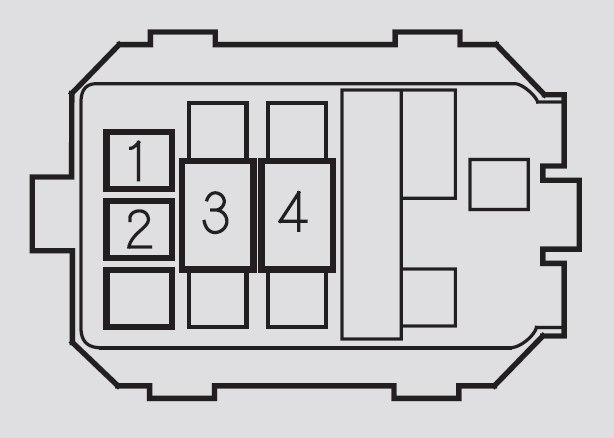

Honda S2000 – fuse box – engine compartment (auxiliary box)
Honda S2000 – fuse box – engine compartment (auxiliary box)
Number Circuit protected Ampere rating [A]
1 20 Rear Window Defogger
2 Not used
3 70 EPS
4 Not used

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
