Honda Insight (2004) – fuse box diagram

Honda Insight (2004) – fuse box diagram

Year of production: 2004, 2005, 2006

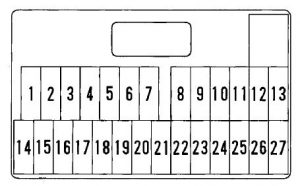

Interior fuse box

Honda Insight – fuse box – interior
Honda Insight – fuse box –
interior
Number Ampere rating [A] Circuit protected
1 10 SRS
2 15 Fuel pump, SRS
3 20 Front wiper
4 7,5 FI-ECU
5 7,5 Turn light
6 7,5 Meter
7 15 IG Coil
8 20 Power window passenger
9 7,5 Starter signal
10 20 Power window driver
11 7,5 ACC radio
12 10 ACC socket
13
14 20 LAF Heater
15 10 Small light
16 7,5 Air Conditioning, R/C mirror
17 7,5 Daytime running light*
18 7,5 Back up light
19 7,5 Interior light
20 10 Radio
21 10 Daytime running light*
22 20 Door lock
23 7,5 Tailgate lock
24 7,5 IMA
25
26 10 Rear wiper
27 7,5 Back light
*: Canadian model only

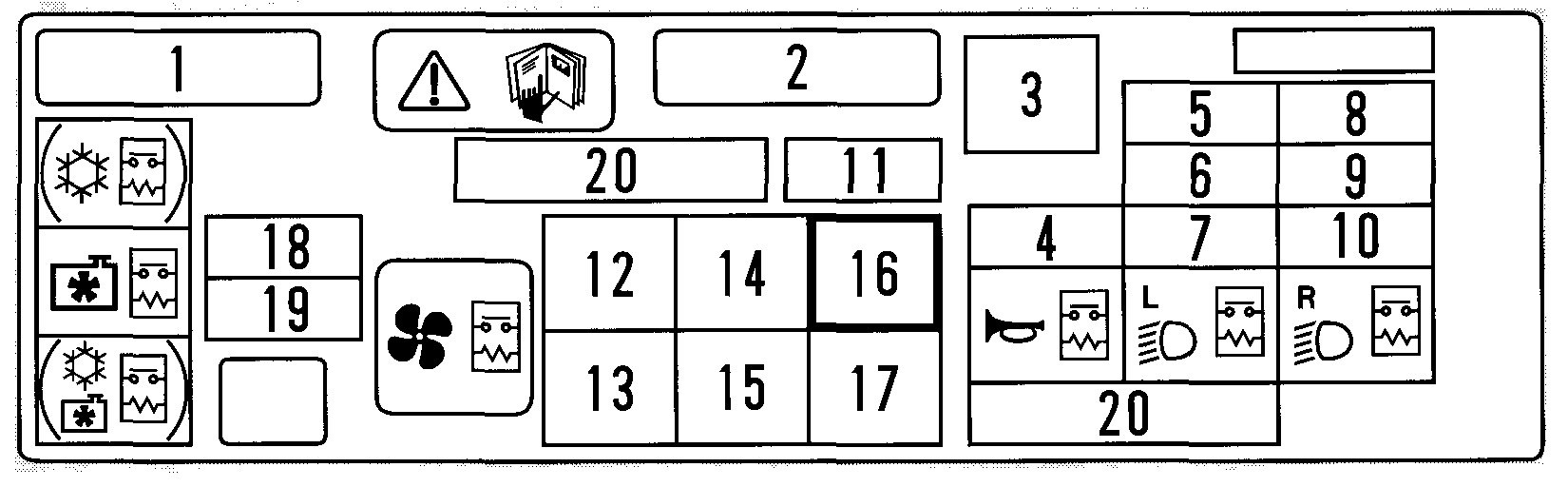

Engine compartment fuse box

Honda Insight – fuse box – engine compartment
Honda Insight – fuse box –
engine compartment
Number Ampere rating [A] Circuit protected
1 50 IG1 Main
2 80 Battery
3 30 ABS Motor
4 10 Hazard
5 15 IMA
6 10 Horn stop
7 15 Fuel pump
8 15 Left headlamp
9
10 15 Right headlight
11 30 Cooling fan
12 40 Heater motor
13 30 Rear defroster
14 20 ABS F/S
15 40 Power Steering
16 30 Back up, ACC
17 40 Power window
18 7,5 IMA ECU
19 20 Condenser fan
20 Spare fuse

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
