Honda HR-V (2016 – 2018) – fuse box diagram

25 September 2018 admin HR-V 0

Honda HR-V (2016 – 2018) – fuse box diagram

Year of production: 2016, 2017, 2018

Engine compartment

Fuse box A

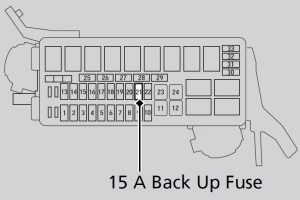

Honda HR-V fuse box – engine compartment (fuse box A)
Honda HR-V fuse box –
engine compartment (fuse box A)
Number Circuit protected Ampere rating [A]
1 Headlight Low Beam Main 20
2 CDC* (30)
3 Hazard 10
4 DBW 15
5 Wiper* (30)
6 Stop 10
7 IGP 15
8 IG Coil 15
9 EOP* (10)
10 INJ* (20)
11 VST2* (30)
12 Main Fan 30
13 Starter SW* (30)
14 MG Clutch 7,5
15 Battery Sensor (7,5)
16 Small Light 10
17 AFP Main* (10)
18 Horn 10
19 Fog Light* (10)
20 SBW* (10)
21 Back Up Main 10
22 Audio (10)
23 Sub Fan (30)
24 VST1* (30)
25 STRLD* (7,5)
26 IGP CAM* (7,5)
27 — —
28 — —
29 Back Up* (30)
30 IGP LAF (7,5)
31 IGPS (7,5)
32 Right Headlight Low Beam 10
33 Left Headlight Low Beam 10
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch*: Not available on all models

Fuse box B

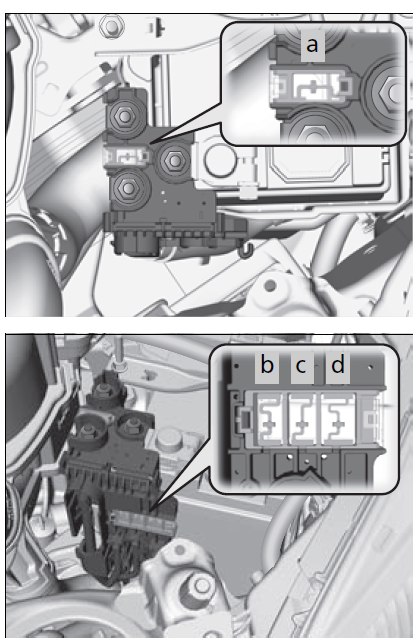

Honda HR-V – fuse box engine compartment (fuse box B)
Honda HR-V – fuse box
engine compartment (fuse box B)
Number Circuit protected Ampere rating [A]
a Battery Main 100
b RB Main 1 70
c RB Main 2 80
d CAP Main 70

Interior Fuse Box

Fuse box A

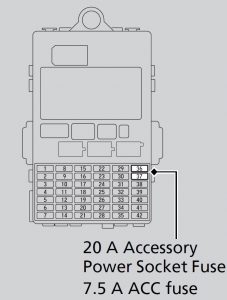

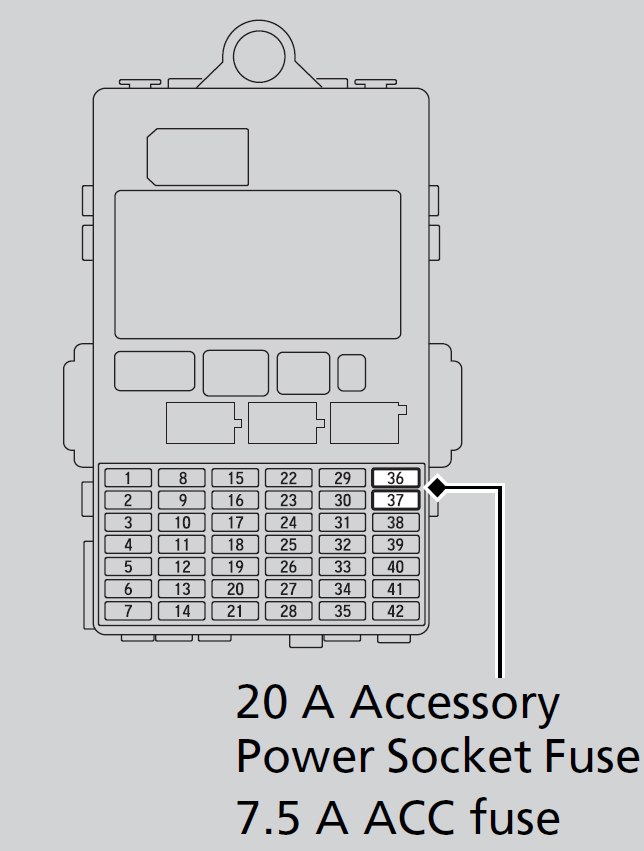

Honda HR-V – fuse box – interior
Honda HR-V – fuse box –
interior
Number Circuits protected Ampere rating [A]
1 Door Lock (20)
2 — –
3 Smart* (10)
4 Driver Side Door Unlock 10
5 Passenger Side Door Unlock 10
6 Driver Door Unlock 10
7 Driver Door Lock 10
8 Driver’s Power Window 20
9 Passenger’s Power Window 20
10 Rear Left Power Window 20
11 Rear Right Power Window 20
12 Driver Side Door Lock 10
13 Passenger Side Door Lock 10
14 — —
15 Right Headlight High Beam 10
16 STS* (7,5)
17 Sunshade* (20)
18 Moonroof* (20)
19 Front Seat Heater* (20)
20 — —
21 MP Camera* (10)
22 Washer 15
23 Rear Wiper* (10)
24 A/C 7,5
25 Daytime Running Lights 7,5
26 Starter Cut* (7,5)
27 ABS/VSA 7,5
28 SRS 10
29 Left Headlight High Beam 10
30 ACG 10
31 IG Relay 10
32 Fuel Pump 15
33 SRS (7,5)
34 Meter 7,5
35 Mission SOL 7,5
36 Front ACC Socket 20
37 ACC (7,5)
38 ACC* 7,5
39 Option (10)
40 Rear Wiper 10
41 — —
42 — —
*: Not available on all models

Fuse box B

Number Circuits protected Ampere rating [A]
1 EPS 70
IG Main 30*1
50*2
Fuse Box Main 2 50
ABS/VSA Motor 40
Fuse Box Main 1 30
Fuse Box Main 3 40
2 Rear Defogger 30
EPB L 30
IG Main2*1 30
–*2 30
HTR 40
EPB R 30
E-DPS 30
3 — —
4 — —
5 ABS/VSA FSR 30
6 Deicer* (10)
7 RR ACC SOCKET* (20)
8 — —
9 Interior Light 7,5
10 ACC Socket (Console)* (20)
11 — —
12*1 — —
12*2 ACC Key Lock (7,5)
13 Heated Door Mirror* (10)
14 A/C Blower SW* (7,5)
15*1 — —
15*2 Wiper 30
*: Not available on all models*1: Models with smart entry system
*2: Models without smart entry system

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
