Honda Element (2009 – 2010) – fuse box diagram

Honda Element (2009 – 2010) – fuse box diagram

Year of production: 2009, 2010

Interior Fuse Box

Honda Element - wiring diagram - fuse box diagram - interior
Honda Element – wiring diagram – fuse box diagram – interior
Number Ampere rating [A] Circuits protected
1 Not Used
2 15 Rear Accessory Power Socket
3 10 Daytime Running Lights/TPMS
4 10 ACG
5 Not Used
6 7,5 Power Window Relay
7 20 AMP*
8 7,5 Accessory, Radio
9 10 Rear Wiper
10 7,5 Meter
11 Not Used
12 7,5 Daytime running lights
13 10 SRS
14 10 Remote Control Mirrors
15 20 LAF Heater
16 15 Ignition Relay
17 15 Fuel Pump
18 15 Front Accessory Power Socket
19 7,5 Turn Signal Lights
20 20 Front Wiper
21 Not Used
22 20 Passenger’s Power Window
23 20 Driver’s Power Window
24 Not Used
25 Not Used
*: If equipped

Engine compartment

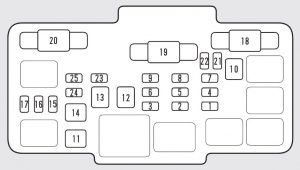

Honda Element – fuse box diagram – engine compartment
Honda Element – fuse box diagram – engine compartment
Number Ampere rating [A] Circuit protected
1 30 Condenser Fan
2 15 Small Light
3 7,5 Interior Light
4 20 Cooling Fan Motor
5 15 Hazard
6 15 FI ECU
7 15 Horn, Stop
8 15 DBW
9 10 Back Up
10 30 VSA Motor
11 20 Rear Defroster
12 40 Heater Motor
13 40 Power Window Main
14 40 Option
15 15 Left Headlight
16 20 Door Lock
17 15 Right Headlight
18 30 VSA MTR FSR
19 100 Battery
20 50 IG1 Main
21-25 7,5 – 30 Spare Fuses

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
