Honda CR-V (2007 – 2009) – fuse box diagram

Honda CR-V (2007 – 2009) – fuse box diagram

Year of production: 2007, 2008, 2009

Interior fuse box

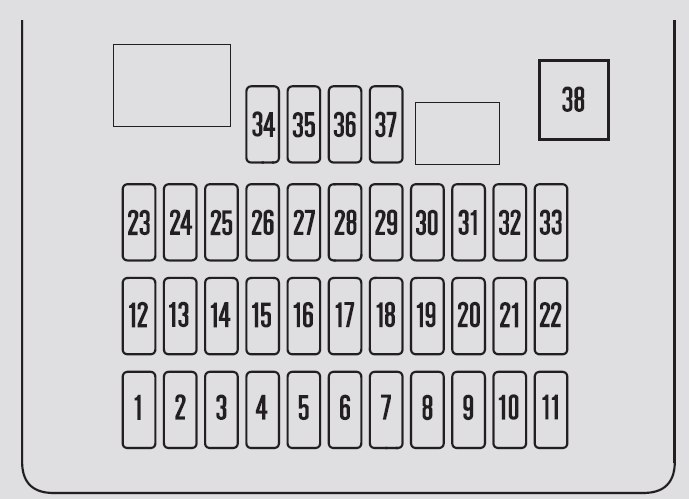

Honda CR-V – fuse box diagram – interior
Honda CR-V – fuse box diagram – interior
Number Ampere rating [A] Circuits Protected
1 7,5 Power Window Relay
2 15 Fuel Pump
3 10 ACG
4 7,5 ABS/VSA
5 (15) Heated Seats*
6 (20) Front Fog Lights*
7 Not used
8 10 Rear Wiper
9 7,5 ODS (Ocupant Detection System)
10 7,5 Meter
11 10 SRS
12 10 Right Headlight High Beam
13 10 Left Headlight High Beam
14 7,5 Small Light (Interior)
15 7,5 Small Light (Exterior)
16 10 Right Headlight Low Beam
17 10 Left Headlight Low Beam
18 20 Main Headlight High Beam
19 15 Small Lights MAIN
20 7,5 TPMS
21 20 Headlight Low Beam
22 Not used
23 Not used
24 (20) Moonroof*
25 20 Door Lock
26 20 Front Left Power Window
27 (20) HAC Option
28 15 Rear Accessory Socket
29 15 Accessory
30 20 Front Right Power Window
31 (15) Accessory Power Socket on the Center Table*
32 20 Rear Right Power Window
33 20 Rear Left power window
34 7,5 ACC Radio
35 7,5 ACC Key lock
36 10 HAC
37 7,5 Daytime Running Lights
38 30 Front Wiper
* : Canadian model

Under – hood fuse box

Honda CR-V – fuse box diagram – under hood
Honda CR-V – fuse box diagram – under hood
Number Ampere rating [A] Circuits Protected
1 100 Battery
(70) EPS*
2 80 Option Main
50 Ignition Switch Main
3 20 ABS/VSA FSR
40 ABS/VSA Motor
4 50 Headlight Main
40 Power Window Main
5 (30) EPT-R*
6 20 Sub Fan Motor
7 20 Main Fan Motor
8 30 Rear Defogger
9 40 Blower
10 15 Hazard
11 15 LAF
12 15 Stop and Horn
13 (20) Power Seat DR RR HI/Reclining*
14 (20) Power Seat DR FR HI/Sliding*
15 7,5 IGPS OIL LEVEL
16 (30) EPT-L*
17 (15) High Power Sound*
18 15 IG Coil
19 15 FI Main
20 20 MG Clutch
21 15 DBW
22 7,5 Interior Light
23 10 Back Up
* : : If equipped

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
