GMC Sierra 1500 (1995) – wiring diagrams – wiper/washer

GMC Sierra 1500 (1995) – wiring diagrams – wiper/washer

Year of productions:  1995

Wiper/washer

Version 1

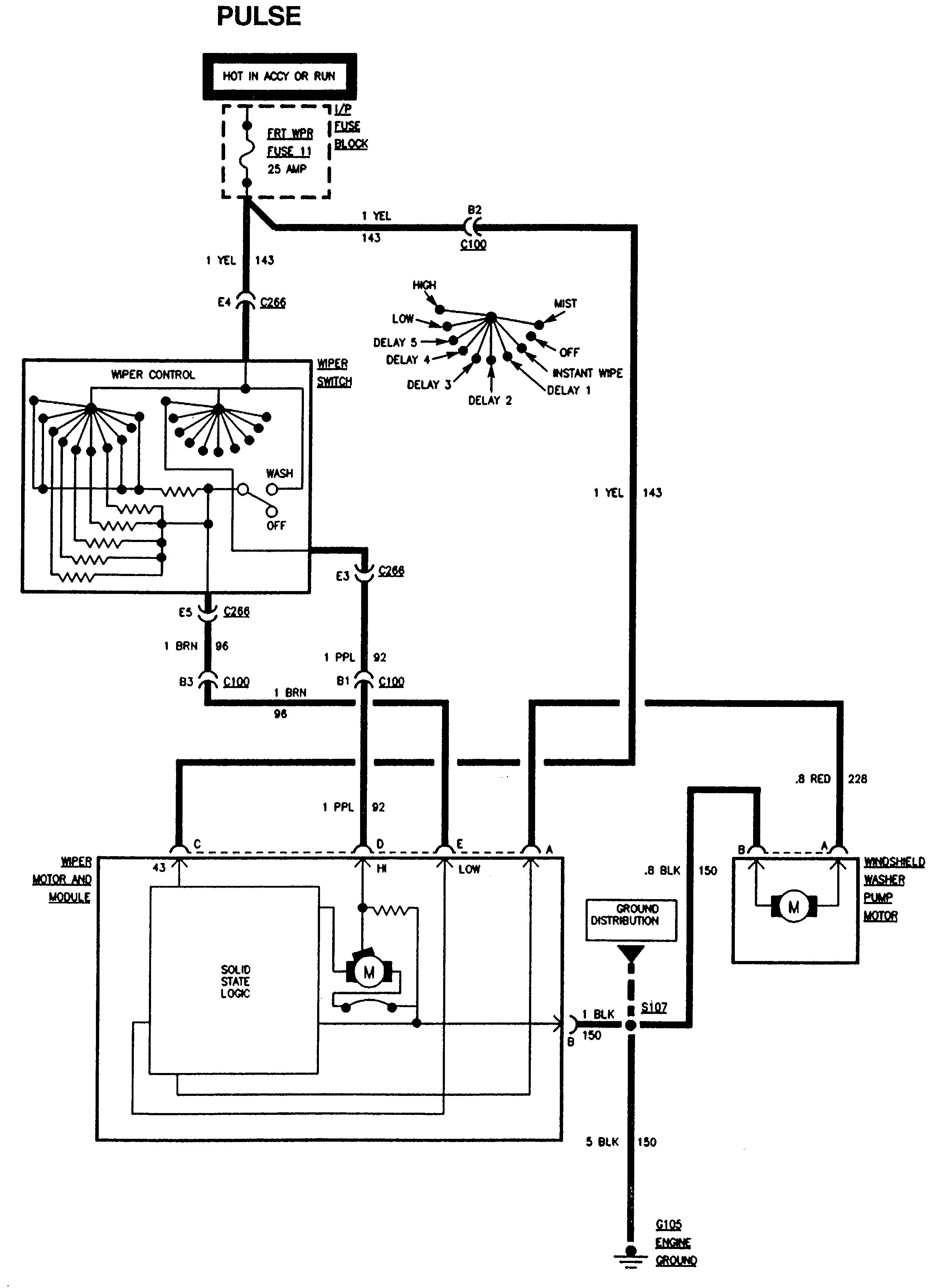

GMC Sierra 1500 – wiring diagrams – wiper/washer (part 1)

GMC Sierra 1500 – wiring diagrams – wiper/washer (part 1)

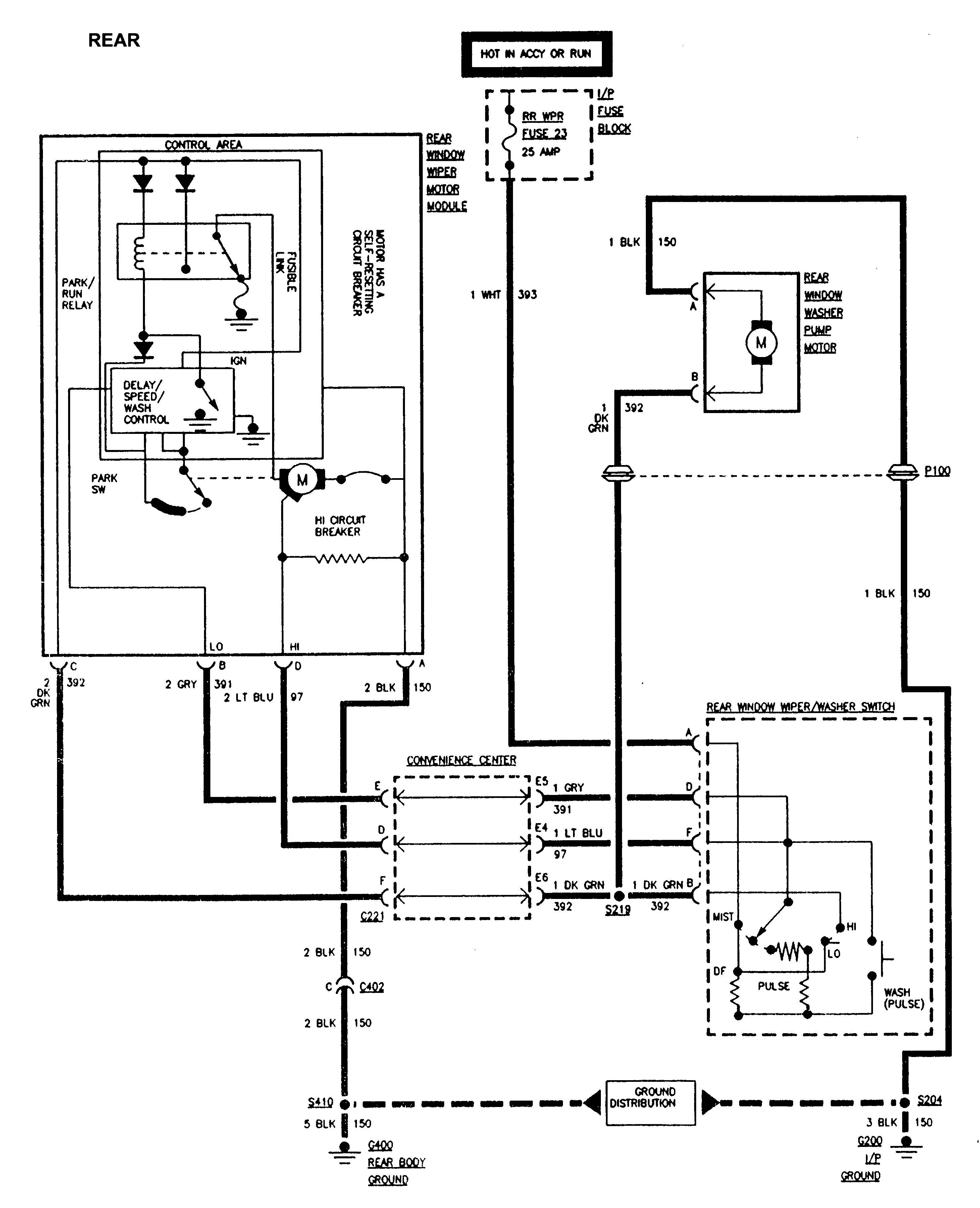

GMC Sierra 1500 – wiring diagrams – wiper/washer (part 2)

GMC Sierra 1500 – wiring diagrams – wiper/washer (part 2)

Version 2

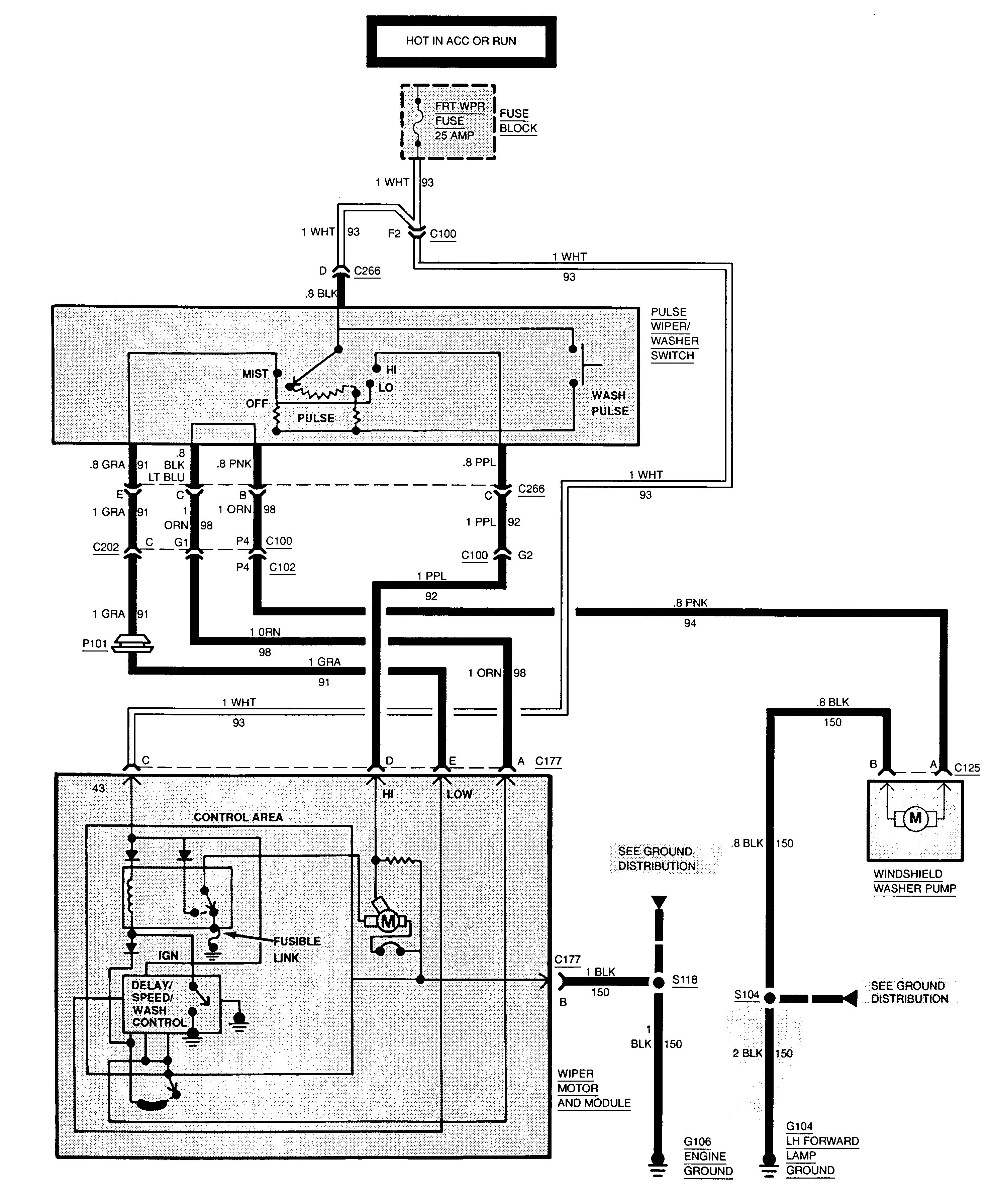

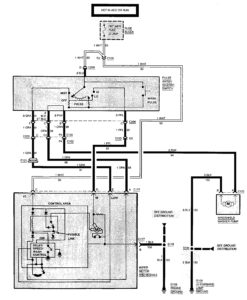

GMC Sierra 1500 – wiring diagrams – wiper/washer

GMC Sierra 1500 – wiring diagrams – wiper/washer

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
