GMC Sierra 1500 (1995) – wiring diagrams – ground distribution

GMC Sierra 1500 (1995) – wiring diagrams – ground distribution

Year of productions:  1995

Ground distribution

Version 1

GMC Sierra 1500 – wiring diagrams – ground distribution  (part 1)

GMC Sierra 1500 – wiring diagrams – ground distribution (part 1)

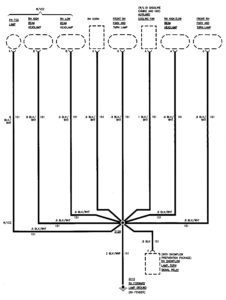

GMC Sierra 1500 – wiring diagrams – ground distribution  (part 2)

GMC Sierra 1500 – wiring diagrams – ground distribution (part 2)

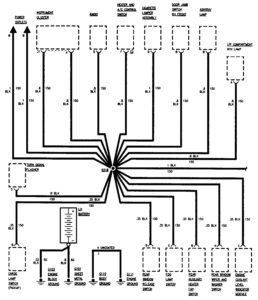

GMC Sierra 1500 – wiring diagrams – ground distribution  (part 3)

GMC Sierra 1500 – wiring diagrams – ground distribution (part 3)

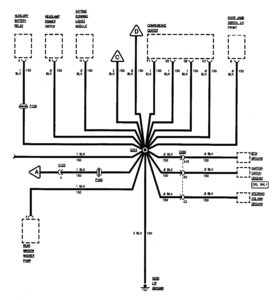

GMC Sierra 1500 – wiring diagrams – ground distribution  (part 1)

GMC Sierra 1500 – wiring diagrams – ground distribution (part 4)
GMC Sierra 1500 – wiring diagrams – ground distribution  (part 5)

GMC Sierra 1500 – wiring diagrams – ground distribution (part 5)

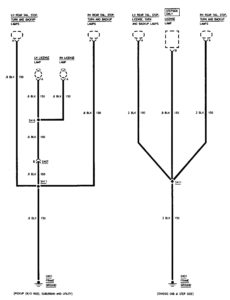

GMC Sierra 1500 – wiring diagrams – ground distribution  (part 6)

GMC Sierra 1500 – wiring diagrams – ground distribution (part 6)

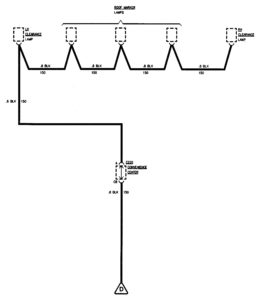

GMC Sierra 1500 – wiring diagrams – ground distribution  (part 7)

GMC Sierra 1500 – wiring diagrams – ground distribution (part 7)

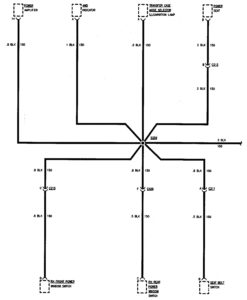

GMC Sierra 1500 – wiring diagrams – ground distribution  (part 8)

GMC Sierra 1500 – wiring diagrams – ground distribution (part 8)

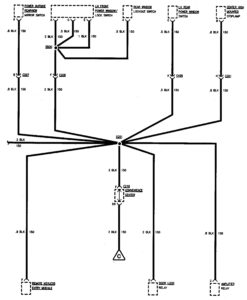

GMC Sierra 1500 – wiring diagrams – ground distribution  (part 9)

GMC Sierra 1500 – wiring diagrams – ground distribution (part 9)

Version 2

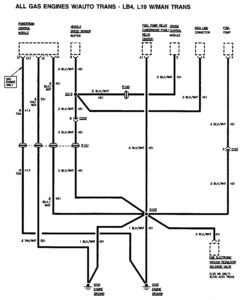

GMC Sierra 1500 – wiring diagrams – ground distribution

GMC Sierra 1500 – wiring diagrams – ground distribution

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
