GMC Sierra 1500 (1995) – wiring diagrams – charging system

GMC Sierra 1500 (1995) – wiring diagrams – charging system

Year of productions:  1995

Charging system

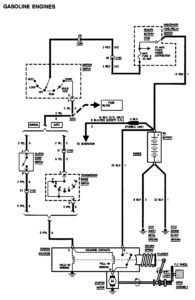

GMC Sierra 1500 – wiring diagrams – charging system (part 1)

GMC Sierra 1500 – wiring diagrams – charging system (part 1)

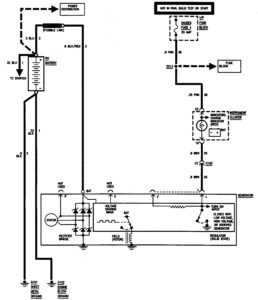

GMC Sierra 1500 – wiring diagrams – charging system (part 2)

GMC Sierra 1500 – wiring diagrams – charging system (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
