GMC Sierra 1500 (1995) – wiring diagrams – auxiliary battery

GMC Sierra 1500 (1995) – wiring diagrams – auxiliary battery

Year of productions:  1995

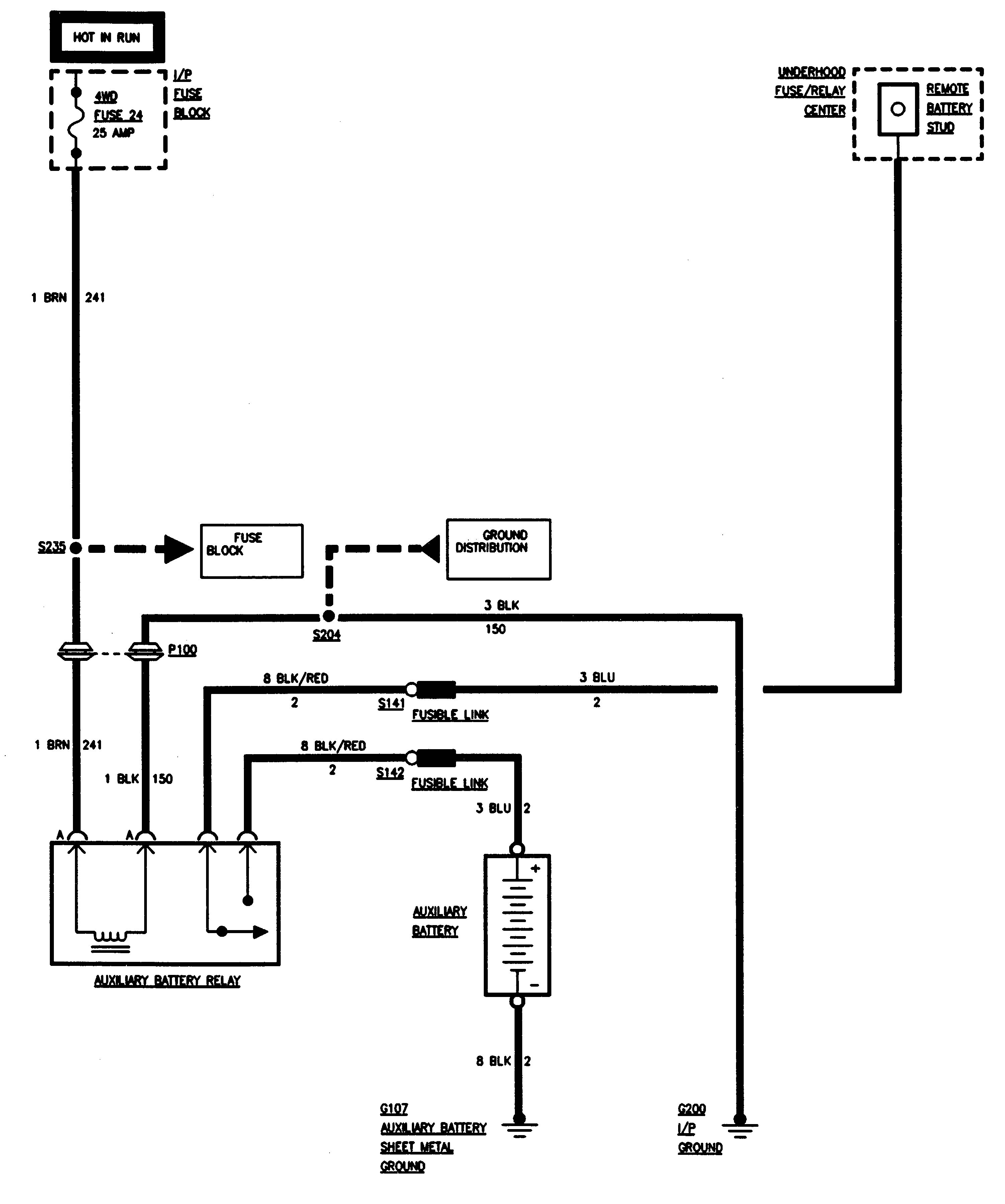

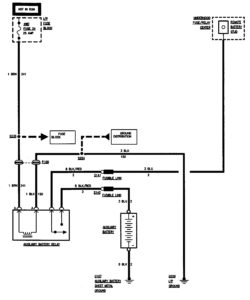

Auxiliary battery

GMC Sierra 1500 (1995) – wiring diagrams – auxiliary battery

GMC Sierra 1500 (1995) – wiring diagrams – auxiliary battery

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
