GMC Sierra 1500 (1995) – wiring diagrams – ABS

GMC Sierra 1500 (1995) – wiring diagrams – ABS

Year of productions:  1995

ABS

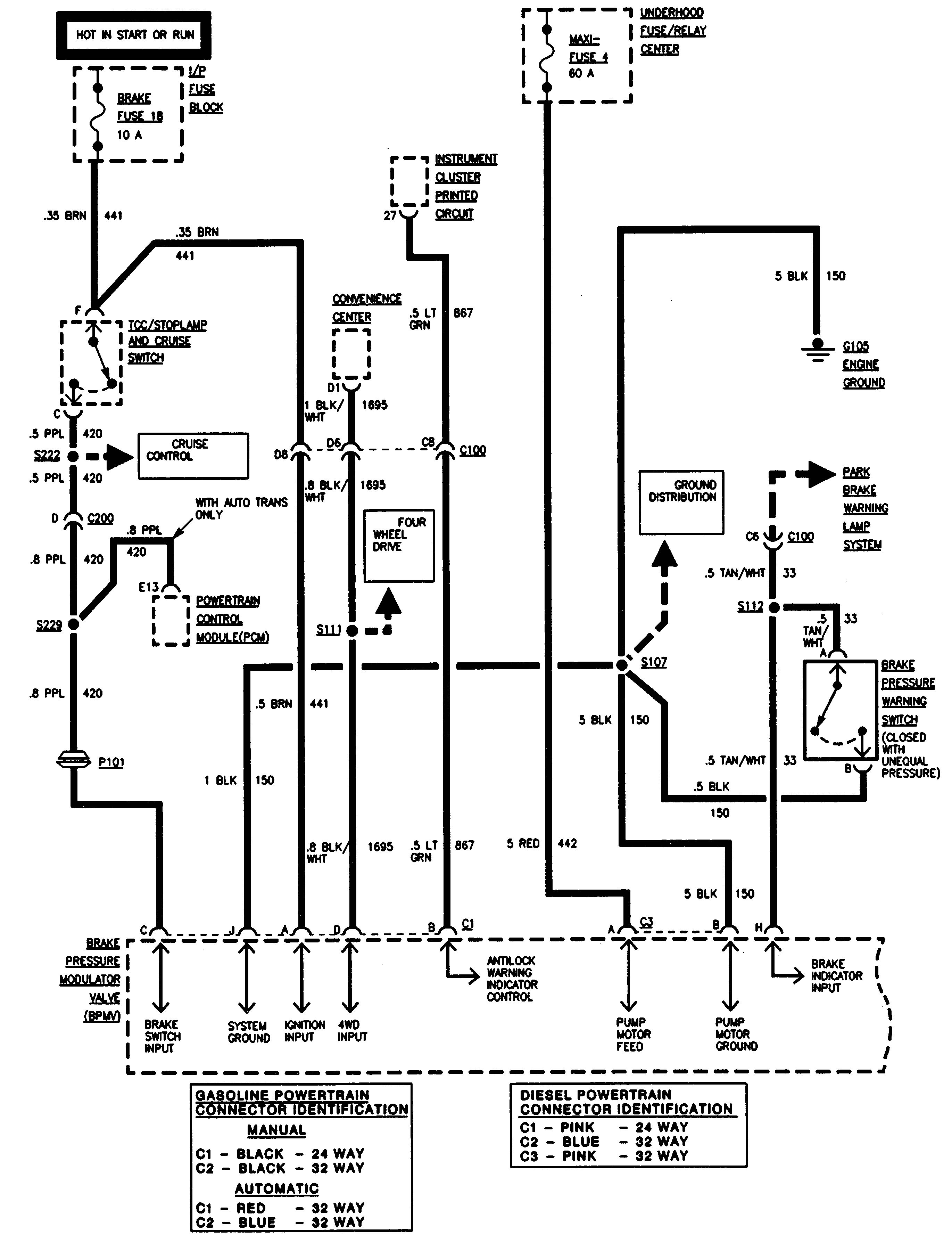

GMC Sierra 1500 – wiring diagrams – ABS (part 1)

GMC Sierra 1500 – wiring diagrams – ABS (part 1)

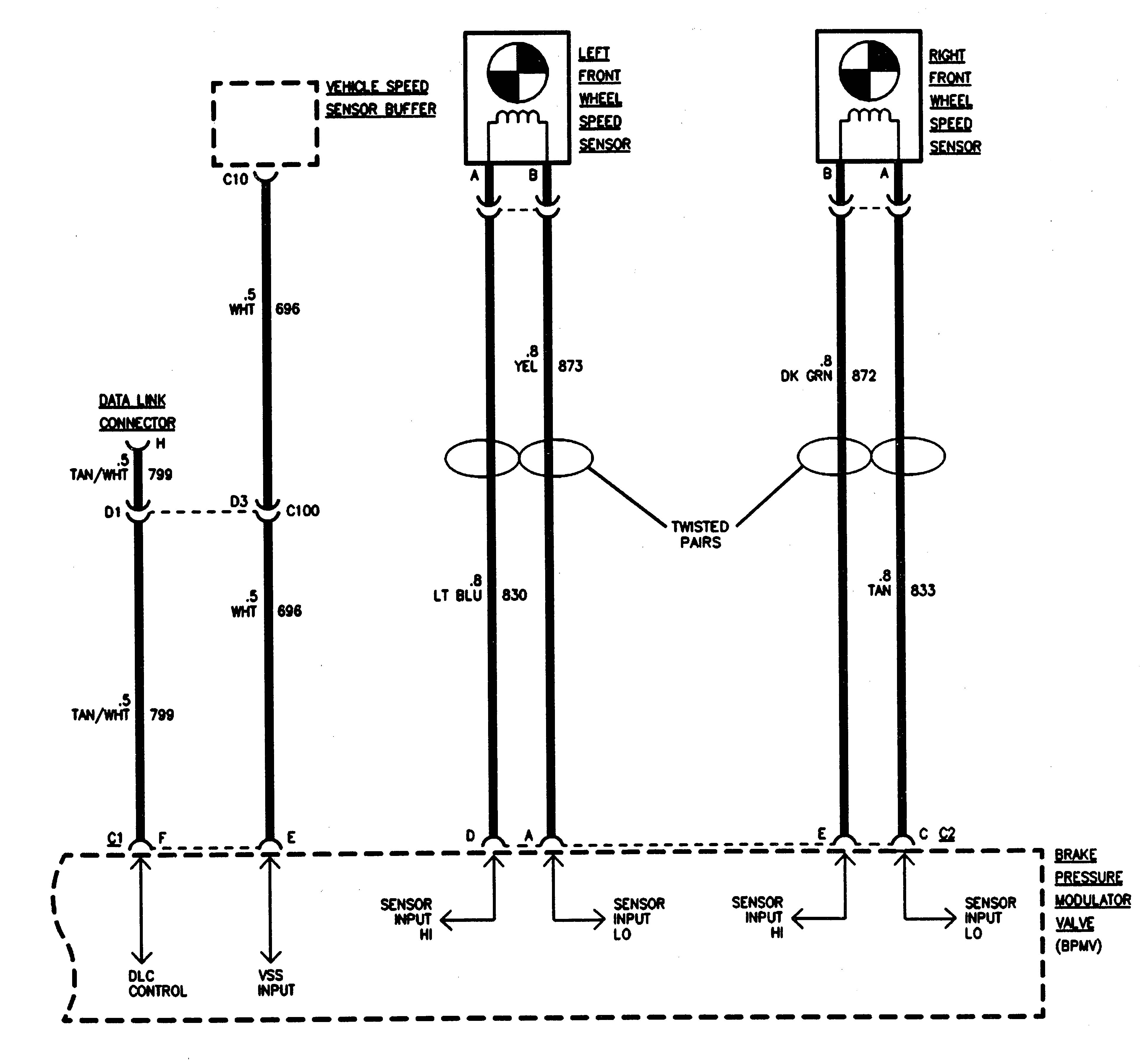

GMC Sierra 1500 – wiring diagrams – ABS (part 2)
GMC Sierra 1500 – wiring diagrams – ABS (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
