GMC Envoy (2007 – 2009) – fuse box diagram

GMC Envoy (2007 – 2009) – fuse box diagram

Year of production: 2007, 2008, 2009

Engine Compartment Fuse Block

The fuse block is located under the hood in the engine compartment on the driver’s side of the vehicle.

L6 Engine

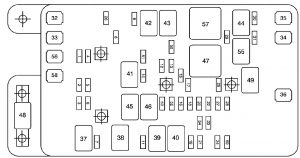

GMC Envoy mk2 – fuse box diagram – engine compartment (LG engine)
GMC Envoy mk2 – fuse box diagram – engine compartment (LG engine)
Fuses Usage
1 Electrically-Controlled Air Suspension
2 Passenger’s Side High-Beam Headlamp
3 Passenger’s Side Low-Beam Headlamp
4 Back-Up-Trailer Lamps
5 Driver’s Side High-Beam Headlamp
6 Driver’s Side Low-Beam Headlamp
7 Windshield Wiper
8 Active Transfer Case
9 Windshield Wipers
10 Powertrain Control Module B
11 Fog Lamps
12 StopLamp
13 Cigarette Lighter
15 Electric Adjustable Pedals
16 Truck Body Controller, Ignition 1
17 Crank
18 AirBag
19 Trailer Electric Brake
20 Cooling Fan
21 Horn
22 Ignition E
23 Electronic Throttle Control
24 Instrument Panel Cluster, Driver Information Center
25 Automatic Shift Lock Control System
26 Transmission Control Module Canister
27 Backup
28 Powertrain Control Module 1
29 Oxygen Sensor
30 Air Conditioning
31 Truck Body Controller
32 Trailer
33 Anti-Lock Brakes (ABS)
34 Ignition A
35 Blower Motor
36 Blower
50 Passenger’s Side Trailer Turn
51 Driver’s Side Trailer Turn
52 Hazard Flashers
53 Headlamp Driver Module
54 Air Injection Reactor (AIR) Solenoid
56 Air Injection Reactor (AIR) Pump
58 Vehicle Stability Enhancement System (StabiliTrak®)
59 Regulated Voltage Control



Relays Usage
37 Headlamp Washer
38 Rear Window Washer
39 Fog lamps
40 Horn
41 Fuel Pump
42 Windshield Washer
43 High-Beam Headlamp
44 Air Conditioning
45 Cooling Fan
46 Headlamp Driver Module
47 Starter
49 Electric Adjustable Pedal
55 Air Injection Reactor (AIR) Solenoid
57 Powertrain



Miscellaneous Usage
48 Instrument Panel Battery

V8 Engine

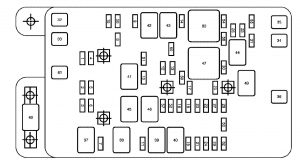

GMC Envoy mk2 – fuse box diagram – engine compartment (V8 engine)
GMC Envoy mk2 – fuse box diagram – engine compartment (V8 engine)
Fuses Usage
1 Electrically-Controlled Air Suspension
2 Passenger’s Side High-Beam Headlamp
3 Passenger’s Side Low-Beam Headlamp
4 Back-Up-Trailer Lamps
5 Driver’s Side High-Beam Headlamp
6 Driver’s Side Low-Beam Headlamp
7 Windshield Wiper
8 Automatic Transfer Case
9 Windshield Wipers
10 Powertrain Control Module B
11 Fog Lamps
12 Stoplamp
13 Cigarette Lighter
14 Ignition Coils
15 Transmission Control Module (TCM) Canister Vent
16 Truck Body Controller, Ignition 1
17 Crank
18 Airbag
19 Trailer Electric Brake
20 Cooling Fan
21 Horn
22 Ignition E
23 Electronic Throttle Control
24 Instrument Panel Cluster, Driver Information Center
25 Automatic Shift Lock Control System
26 Engine 1
27 Backup
28 Powertrain Control Module 1
29 Powertrain Control Module
30 Air Conditioning
31 Injector Bank A
32 Trailer
33 Anti-Lock Brakes (ABS)
34 Ignition A
35 Blower Motor
36 Ignition B
50 Passenger’s Side Trailer Turn
51 Driver’s Side Trailer Turn
52 Hazard Flashers
53 Transmission
54 Oxygen Sensor Bank B
55 Oxygen Sensor Bank A
56 Injector Bank B
57 Headlamp Driver Module
58 Truck Body Controller 1
59 Electric Adjustable Pedal
61 Vehicle Stability Enhancement System (StabiliTrak®)
62 Regulated Voltage Control



Relays Usage
37 Headlamp Washer
38 Rear Window Wiper/Washer
39 Fog Lamps
40 Horn
41 Fuel Pump
42 Windshield Washer
43 High-Beam Headlamp
44 Air Conditioning
45 Cooling Fan
46 Headlamp Driver Module
47 Starter
49 Electric Adjustable Pedal
60 Powertrain



Miscellaneous Usage
48 Instrument Panel Battery

Rear Underseat Fuse Block

GMC Envoy mk2 – fuse box diagram – rear underseat fuse
GMC Envoy mk2 – fuse box diagram – rear underseat fuse
Fuses Usage
01 Right Door Control Module
02 Left Door Control Module
03 Liftgate Module 2
04 Truck Body Controller 3
05 Rear Fog Lamps
06 Blank
07 Truck Body Controller 2
08 Power Seats
09 Rear Wiper
10 Driver Door Module
11 Amplifier
12 Passenger Door Module
13 Rear Climate Controls
14 Driver Side Rear Parking Lamps
15 Blank
16 Vehicle Center High-Mounted Stoplamp (CHMSL)
17 Passenger Side Rear Parking Lamps
18 Locks
19 Liftgate Module/Driver Seat Module
20 Blank
21 Lock
23 Blank
24 Unlock
25 Blank
26 Blank
27 OnStar® Overhead Battery/OnStar® System
28 Sunroof
29 Not Used
30 Parking Lamps
31 Truck Body Controller Accessory
32 Truck Body Controller 5
33 Front Wipers
34 Vehicle Stop
35 Transmission Control Module
36 Heat Ventilation Air Conditioning B
37 Front Parking Lamps
38 Driver Side Turn Signal
39 Heat Ventilation Air Conditioning 1
40 Truck Body Controller 4
41 Radio
42 Trailer Park
43 Passenger Side Turn Signal
44 Heat Ventilation Air Conditioning
45 Rear Fog Lamps
46 Auxiliary Power 1
47 Ignition 0
48 Four-Wheel Drive
49 Blank
50 Truck Body Controller Ignition
51 Brakes
52 Truck Body Controller Run

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
