Ford Ranger (1983 – 1992) – fuse box diagram

Ford Ranger (1983 – 1992) – fuse box diagram

Year of production: 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992

Passenger Compartment Fuse Panel

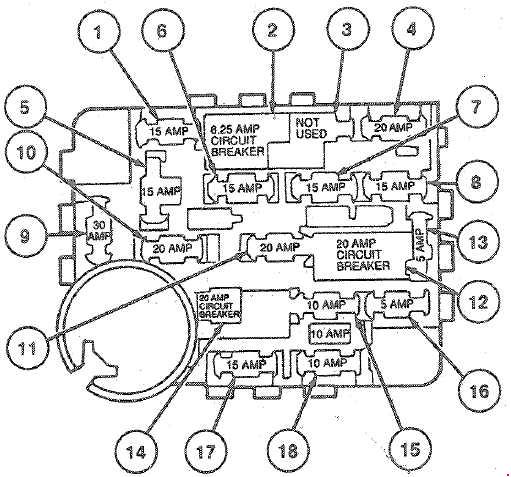

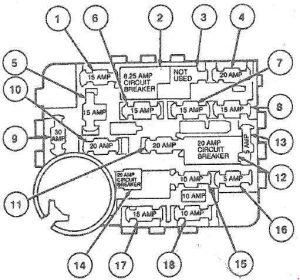

Ford Ranger – fuse box passanger – compartment fuse panel
Ford Ranger – fuse box passanger – compartment fuse panel
Number Ampere rating [A] Description
1 15 Dome/Courtesy Light, Radio
2 6 Circuit Breaker: Front Washer/Wiper
3
4 15 Four-Way Flash, Stoplights, Speed Control Inhibit
5 15 Turn Signals, Back-Up Lights, Turn Indicator, Rear Defrost Control, Brake Fluid Level Sensor
6 15 Rear Window Wiper and Washer
7 10 A/C Switches, Clutch Coil
8 20 Horns
9 30 Blower Motor
10 15 Parking Lights, License Lights, Engine Compartment Lamp, Lamps on Warning
11 15 Speed Control Amplifier & Radio, All Wheel Drive
12 20 Circuit Breaker: Cigar Lighters, Flash-to-Pass, Multi-Function Switch
13 10 Instrument Panel Illumination, Park/H Light Hot
14 20 Power Windows, Lumbar
30 1991-1992: Power Windows, Lumbar
15 20 R.A.B.S. Module
16 15 Premium Radio Amplifier
17 20 Cluster Warning Light, All Wheel Drive
15 Electric Shift Control, Lamps on Warning, Low Oil Level Relay, Instrument Cluster
18 10 HEGO Heater
15 Shift Indicator, Low Fuel Warning, Seat Belt Warning, Carburetor Circuit: Warning Indicator

Fuse Box In The Engine Compartment

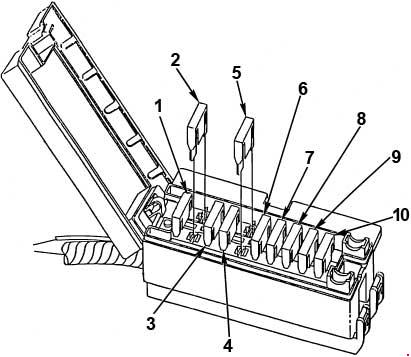

Ford Ranger – fuse box diagram – engine compartment fuse panel
Ford Ranger – fuse box diagram – engine compartment fuse panel
Number Ampere rating [A] Description
1 60 Ignition
2 40 Electric Shift
3 30 E.E.C. Relay
4 50 Alternator
5 40 Rear Window Washer / Wiper / Defroster
6 30 Power Door Locks
7 40 Fuse Panel
8 60 Alternator
9 40 Headlamps

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
