Ford Mustang (1999 – 2004) – fuse box diagram

Ford Mustang (1999 – 2004) – fuse box diagram

Year of production: 1999, 2000, 2001, 2002, 2003, 2004

Passenger Compartment Fuse Box

Ford Mustang – fuse box diagram – passenger compartment
Ford Mustang – fuse box diagram – passenger compartment
Fuse Ampere Rating [A] Description
1 20 Cigar Lighter
2 20 Engine Controls
3
4 10 RH Low Beam Headlamp
5 15 Instrument Cluster, Traction Control Switch
6 20 Starter Motor Relay
7 15 GEM, Interior Lamps
8 20 Engine Controls
9 30 2002-2004: Mach 460 subwoofers
10 10 LH Low Beam Headlamp
11 15 Back-up Lamps
12 2 2003-2004: Heated PCV
13 15 Electronic Flasher
14
15 15 Power Lumbar
16
17 15 Speed Control Servo, Shift Lock Actuator
18 15 Electronic Flasher
19 15 Power Mirror Switch, GEM, Anti-Theft. Relay, Power Door Locks, Door Ajar Switches
20 15 Convertible Top Switch
21 5 Instrument Cluster and Engine Control Memory
22
23 15 A/C Clutch, Defogger Switch
24 30 Climate Control Blower Motor
25 25 Luggage Compartment Lid Release
26 30 WiperAVasher Motor, Wiper Relays
27 25 Radio
28 15 GEM, Overdrive Cancel Switch
29 15 ABS Module
30 15 Daytime Running Lamps (DRL) module
31 10 Data Link Connector
32 15 Radio, CD Player (1999-2001), GEM
33 15 Stop Lamp Switch, Speed Control Deactivation Switch
34 20 Instrument Cluster, CCRM, Data Link Connector, Securilock Transciever Module
35 15 Shift Lock Actuator, PCM, Speed Control Servo, ABS Module
36 15 Airbag Control Module
37 10 Adjustable Illumination
38 20 Highbeams
39 5 GEM
40
41 15 Brake Lamp
42
43 20 Circuit Breaker: Power Windows
44

Engine Compartment Fuse Box

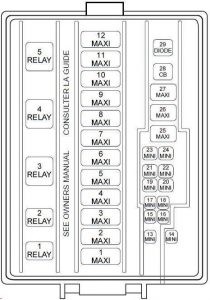

Ford Mustang – fuse box diagram – engine compartment
Ford Mustang – fuse box diagram – engine compartment
Number Ampere Rating [A] Description
1 50 V8: Electric Cooling Fan Motor
30 V6: Electric Cooling Fan Motor (Circuit Breaker)
2 30 Headlamps
3 40 Starter Motor Relay, Ignition Switch
4 40 Ignition Switch
5 40 Ignition Switch
6 40 I/P fuse panel, Instrument cluster, Powertrain Control Module (PCM)
7 30 1999-2002: Secondary Air Injection (3.8L only)
8 50 ABS Module
9 20 Auxiliary Power Point
10 30 Parklamps
11 30 Rear Window Defrost Control
12 40 Power Windows (1999-2002), Power Locks
13 30 2003-2004: MACH 1000 right amplifiers
14 20 Fuel Pump
15 10 1999-2002: Radio
30 2003-2004:MACH 1000 left amplifiers
16 20 Horn
17 20 Anti-Lock Brake System
18 25 Power Seats
19 10 2002-2004: Intercooler pump (Cobra only)
20 20 Generator
21
22
23
24 20 A/C Pressure
25
26 30 PCM
27 20 DRL Module, Foglamp Relay
28 25 Circuit Breaker:Convertible Top
Relay
R1 Fog Lamp Interrupt
R2 Int. Wiper
R3 Wiper HI/LO
R4 Starter
R5 Fog Lamps

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
