Ford Galaxy mk2 (from 2015) – fuse box diagram (EU version)
Year of production: 2015, 2016, 2017, 2018

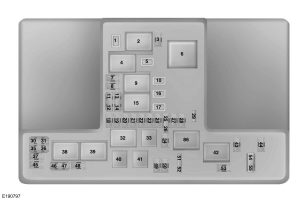

Power distribution box
| Fuse or relay number | Ampere rating [A] | Protected components |
| 1 | 25A3 | Wiper motor |
| 2 | — | Starter relay |
| 3 | 15A1 | Rear wiper. Rain sensor |
| 4 | — | Blower motor relay |
| 5 | 20A3 | Power point 3 – Back of console |
| 6 | — | Auxiliary heater #2 relay |
| 7 | 20A1 | Powertrain control module – vehicle power 1 |
| 8 | 20A1 | Powertrain control module – vehicle power 2 |
| 9 | — | Powertrain control module relay |
| 10 | 20A3 | Power point 1 – driver front |
| 11 | 15A2 | Powertrain control module – vehicle power 4 |
| 12 | 15A2 | Powertrain control module – vehicle power 3 |
| 13 | 10A2 | Not used (spare) |
| 14 | 10A2 | Not used (spare) |
| 15 | — | Run-start relay |
| 16 | 20A3 | Power point 2 – console |
| 17 | 20A3 | Power point 4 – luggage compartment |
| 18 | 10A1 | Not used (spare) |
| 19 | 10A1 | Run-start electronic power assist steering |
| 20 | 10A1 | Run/start lighting |
| 21 | 15A1 | Run/start transmission control. Transmission oil pump start/stop |
| 22 | 10A1 | Air conditioner clutch solenoid |
| 23 | 15A1 | Run-start. Blind spot information system. Rear view camera. Adaptive cruise control. Heads-up display. Voltage stability module |
| 24 | 10A1 | Run-start 7 |
| 25 | 10A2 | Run-start anti-lock brake system |
| 26 | 10A2 | Run-start powertrain control module |
| 27 | — | Not used |
| 28 | 10A1 | Rear washer pump |
| 29 | — | Not used |
| 30 | — | Not used |
| 31 | — | Not used |
| 32 | — | Electronic fan 1 relay |
| 33 | — | A/C clutch relay |
| 34 | 15A1 | Electric steering column lock |
| 35 | — | Not used |
| 36 | — | Not used |
| 37 | — | Not used |
| 38 | — | Electronic fan 2 relay |
| 39 | — | Electric fan 2 and 3 relay |
| 40 | — | Headlamp washer relay |
| 41 | — | Horn relay |
| 42 | — | Fuel pump relay |
| 43 | 10A1 | Not used (spare) |
| 44 | 5A1 | Heated washer nozzle |
| 45 | — | Not used |
| 46 | 10A2 | Alternator sensor |
| 47 | 10A2 | Brake on/off switch |
| 48 | 20A1 | Horn |
| 49 | 20A1 | Diesel fuel heater |
| 50 | 10A1 | Power transfer unit fan |
| 51 | — | Not used |
| 52 | — | Not used |
| 53 | 10A1 | Power seats |
| 54 | 5A2 | Fuel operated heater |
| 55 | 5A2 | Fuel operated heater |
|
1Micro fuse.
2Dual micro fuse.
3M-type fuse.
|
||

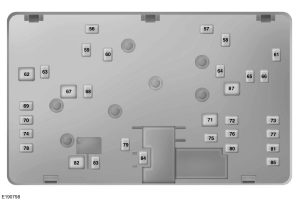

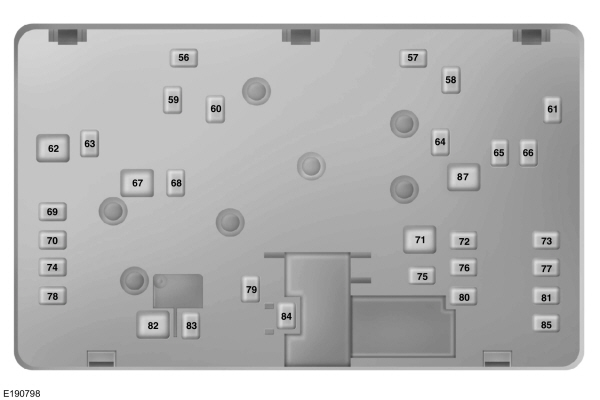

Power Distribution Box – Bottom
There are fuses located on the bottom of the fuse box.
| Fuse or relay number | Ampere rating [A] | Protected components |
| 56 | 20A1 | Headlamp washer |
| 57 | 20A1 | Diesel vaporizer |
| 58 | 30A1 | Fuel pump feed |
| 59 | 40A2 | 600W Electronic fan 3 |
| 60 | 40A2 | 600W Electronic fan 1 |
| 61 | 40A1 | Left hand side windshield defrost |
| 62 | 50A2 | Body control module 1 |
| 63 | 25A1 | 600W Electronic fan 2 |
| 64 | 30A1 | Auxiliary heater #3 |
| 65 | 20A1 | Front heated seat |
| 66 | 40A1 | Right hand side windshield defrost |
| 67 | 50A2 | Body control module 2 |
| 68 | 40A1 | Heated rear window |
| 69 | 30A1 | Anti-lock brake system valves |
| 70 | 30A1 | Passenger seat |
| 71 | 60A2 | Auxiliary heater #2 |
| 72 | 30A1 | Rear power seats |
| 73 | 20A1 | Rear heated seats |
| 74 | 30A1 | Driver seat module |
| 75 | 30A1 | Auxiliary heater #1 |
| 76 | 20A1 | Transmission oil pump |
| 77 | 30A1 | Climate control seat module |
| 78 | 40A1 | Trailer tow module |
| 79 | 40A1 | Blower motor |
| 80 | 40A1 | Power liftgate module |
| 81 | 40A1 | 220 volt inverter |
| 82 | 60A2 | Anti-lock brake system pump |
| 83 | 25A1 | Wiper motor #1 |
| 84 | 30A1 | Starter solenoid |
| 85 | 20A1 | Fuel fire heater |
| 86 | — | Not used |
| 87 | 50A2 | Auxiliary blower motor |
|
1 M-type fuse.
2J-type fuse.
|
||

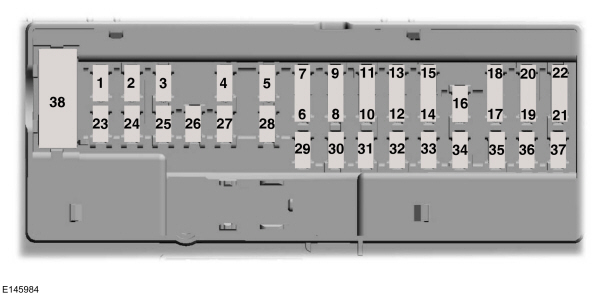

Passenger compartment fuse panel
The fuse panel is located under the instrument panel to the left of the steering column.
| Fuse or relay number | Ampere rating [A] | Protected components |
| 1 | 10A1 | Lighting (ambient, glove box, vanity, dome, liftgate) |
| 2 | 7.5A1 | Memory seats, lumbar, power mirror |
| 3 | 20A1 | Driver door unlock |
| 4 | 5A1 | Aftermarket electronic trailer brake on/off switch |
| 5 | 20A1 | Ignition switch. Push-button ignition switch |
| 6 | 10A2 | Heated seat relay coil |
| 7 | 10A2 | Not used (spare) |
| 8 | 10A2 | Not used (spare) |
| 9 | 10A2 | Not used (spare) |
| 10 | 5A2 | Keypad. Power liftgate module |
| 11 | 5A2 | Not used |
| 12 | 7.5A2 | Climate control |
| 13 | 7.5A2 | Steering wheel column lock. Cluster. Datalink logic |
| 14 | 10A2 | Not used |
| 15 | 10A2 | Datalink gateway module |
| 16 | 15A1 | Child lock. Liftgate release |
| 17 | 5A2 | Not used (spare) |
| 18 | 5A2 | Ignition. Push button stop start switch |
| 19 | 7.5A2 | Passenger airbag disabled indicator. Transmission range indicator |
| 20 | 7.5A2 | Not used (spare) |
| 21 | 5A2 | Humidity and in–car temperature sensor. Blind spot information system. Rear video camera. Adaptive cruise control |
| 22 | 5A2 | Occupant classification sensor |
| 23 | 10A1 | Delayed accessory (power inverter logic, moonroof logic) |
| 24 | 20A1 | Central lock unlock |
| 25 | 30A1 | Driver door (window, mirror) |
| 26 | 30A1 | Front passenger door (window, mirror) |
| 27 | 30A1 | Moonroof |
| 28 | 20A1 | Amplifier |
| 29 | 30A1 | Rear driver side door (window) |
| 30 | 30A1 | Rear passenger side door (window) |
| 31 | 15A1 | Not used (spare) |
| 32 | 10A1 | Global positioning system. Display. Voice control. Adaptive cruise control. Radio frequency receiver |
| 33 | 20A1 | Radio |
| 34 | 30A1 | Run-start bus (fuse 19, 20, 21, 22, 35, 36, 37, circuit breaker) |
| 35 | 5A1 | Restraints control module |
| 36 | 15A1 | Auto-dimming rear view mirror. Heated seat. All-wheel drive |
| 37 | 15A1 | Voltage stability module logic power |
| 38 | 30A | Not used (spare) |
|
1Micro fuse.
2Dual micro fuse.
|
||
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
