Ford Fusion (2006 – 2009) – fuse box diagram (American Version)
Year of production: 2006, 2007, 2008, 2009

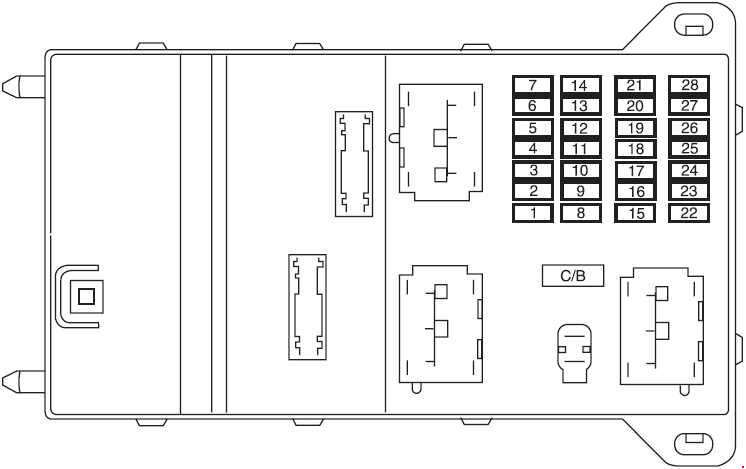

Passenger Compartment Fuse Box
Ford Fusion – fuse box diagram – passenger compartment fuse box
Number
Ampere ratting [A]
Description
1
10
Backup lamps (automatic transmission), Electrochromatic mirror
2
20
Horns
3
15
Battery saver: Interior lamps, Puddle lamps, Trunk lamp, Power windows
4
15
Parklamps, Side markers, License plate lamps
5
—
—
6
—
—
7
—
—
8
30
Rear window defroster
9
10
Heated mirrors
10
30
Starter coil, PCM
11
15
High beams
12
7,5
Delay accessories: Radio head units, Moon roof, Lock switch illumination, Electrochromatic mirrors, Ambient lighting
13
7,5
Cluster, Analog clock, Climate control head units
14
15
Washer pump
15
20
Cigar lighter
16
15
Door lock actuator, Decklid lock solenoid
17
20
Subwoofer
18
20
Radio head units, OBDII connector
19
7,5
Not used (Spare)
20
7,5
Power mirrors, Satellite radio module, All wheel drive
21
7,5
Stop lamps, CHMSL
22
7,5
Audio
23
7,5
Wiper relay coil, Cluster logic
24
7,5
OCS (Passenger’s seat), PAD indicator
25
7,5
RCM
26
7,5
PATS Transceiver, Brake shift interlock solenoid, Brake pedal switch, Automatic transmission relay coil, Reverse switch (back-up lamps for manual transmission)
27
7,5
Cluster, Climate control head units
28
10
ABS/Traction Control, Heated seats, Compass, Reverse sensing system
C/B
30
Circuit Breaker: Moon roof power, Delayed accessory (SJB fuse 12, power window)

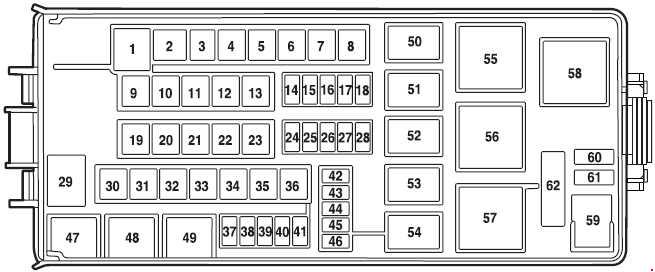

Engine Compartment Fuse Box (2006 )
Ford Fusion – fuse box diagram – engine compartment fuse box
Number
Ampere ratting [A]
Description
1
60
SJB power feed (fuses 12, 13, 14, 15, 16, 17, 18, C/B)
2
40
Powertrain power
3
—
—
4
40
Blower motor
5
—
—
6
40
Rear window defroster, Heated mirrors
7
40
PETA Pump (PZEV engine only)
8
—
—
9
20
Wipers
10
20
ABS Valves
11
20
Heated seats
12
—
—
13
—
—
14
15
Ignition switch
15
—
—
16
15
Transmission
17
20
Console power point
18
10
Alternator sense
19
40
Logic feed to SJB (solid state devices)
20
—
—
21
—
—
22
—
—
23
60
SJB power feed (fuses 1, 2, 4, 10, 11)
24
15
Fog lamps
25
10
A/C Compressor clutch
26
—
—
27
—
—
28
—
—
29
50
Engine cooling fan
30
30
Fuel pump relay feed
31
—
—
32
30
Driver power seat
33
20
Moonroof
34
—
—
35
—
—
36
40
ABS Pump
37
—
—
38
—
—
39
—
—
40
—
—
41
—
—
42
15
PCM non-emission related
43
15
Coil on plug
44
15
PCM emission related
45
5
PETA Pump feedback (PZEV engine only)
46
15
Injectors
61
—
Circuit Breaker: Spare
Diode
60
Fuel pump
61
—
Relay
47
Fog lamps
48
—
49
—
50
Wiper Park
51
A/C Clutch
52
—
53
Wiper RUN
54
Transmission (I4 engine only)
55
Fuel pump
56
Blower motor
57
PCM
58
PETA Pump (PZEV engine only)
59
—

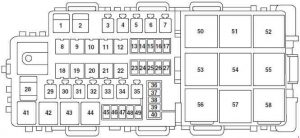

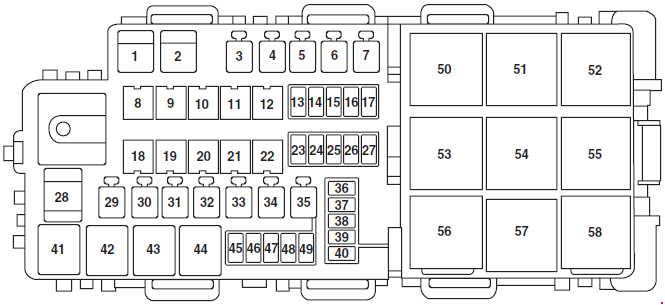

Engine Compartment Fuse Box (2007-2009 )
Ford Fusion – fuse box diagram – engine compartment fuse box
Number
Ampere ratting [A]
Description
1
60
SJB power feed (fuses 12, 13, 14, 15, 16, 17, 18, C/B)
2
60
SJB power feed (fuses 1, 2, 4, 10, 11)
3
40
Powertrain power, PCM relay coil
4
40
Blower motor
5
—
—
6
40
Rear window defroster, Heated mirrors
7
40
PETA Pump (PZEV engine only)
8
40
ABS pump
9
20
Wipers
10
20
ABS Valves
11
20
Heated seats
12
—
—
13
10
SYNC
14
15
Ignition switch
15
—
—
16
15
Transmission
17
10
Alternator sense
18
—
—
19
40
Logic feed to SJB (solid state devices)
20
—
—
21
—
—
22
20
Console power point
23
10
PCM KAM, FNR5 and canister vent solenoid
24
15
Fog lamps
25
10
A/C Compressor clutch
26
—
—
27
—
—
28
60
Engine cooling fan
29
—
—
30
30
Fuel pump/injectors relay
31
—
—
32
30
Driver power seat
33
20
Moon roof
34
—
—
35
—
—
36
1
PCM diode
37
1
One Touch Integrated Start (OTIS) diode
38
—
—
39
—
—
40
—
—
45
5
PETA Pump (PZEV) feedback
46
15
Injectors
47
15
PCM class B
48
15
Coil on plug
49
15
PCM class C
Relay
41
Fog lamp relay
42
Wiper park relay
43
A/C clutch relay
44
FNR5 transmission relay
50
—
51
—
52
Blower relay
53
—
54
Fuel pump/injectors relay
55
Wiper RUN relay
56
—
57
PCM relay
58
PETA Pump (PZEV)
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
