Ford Fusion (2002 – 2012) – fuse box diagram Europe Version)

Ford Fusion (2002 – 2012) – fuse box diagram Europe Version)

Year of production: 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012

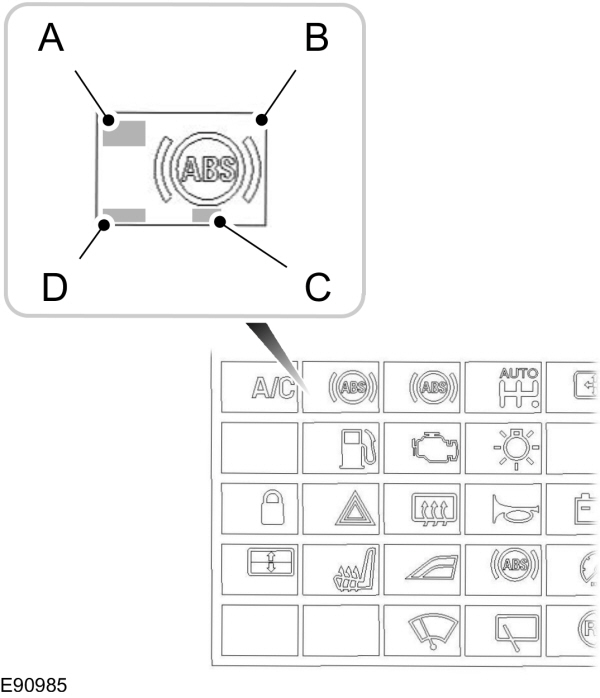

Fuse label

Ford Fusion – fuse label
Ford Fusion – fuse label

A Fuse number
B Circuits protected
C Location (L = left and R = right)
D Fuse rating (Amperes)

Symbol Description
See Owner's handbook See Owner’s handbook
Airbag Airbag
ABS ABS
Dipped beam Headlamp dipped beam
Main beam or headlamps Headlamp main beam
Front fog lamps Fog lamps
Dipped beam or parking lamp switch Lighting control
Dipped beam or parking lamp switch Windscreen wipers
Heated rear window Rear window wiper
Heated windscreen, heated windscreen switch Heated windscreen
Heated rear window Heated rear window
Heated exterior mirrors Heated exterior mirrors
Electric exterior mirrors, clock Electric exterior mirrors
Electric front windows Electric windows
Sunroof Not used
Heater blower motor Heated seats
Air conditioning, heater blower motor Blower motor
Air conditioning Air conditioning
Cigar lighter Cigar lighter
Horn Horn
Daytime running lamps Daytime running lamps
Automatic transmission or Durashift EST Automatic transmission or Durashift EST
Engine management (diesel) or catalytic converter Engine management (diesel) or catalytic converter
Starter motor2 Starter motor
audio Audio system and diagnostic connector
Engine management, electronic module Engine management or electronic module
Fuel pump Fuel pump
Auxiliary or fuel fired heater, glow plugs (diesel), fuel injection pump relay (diesel) Auxiliary heater, glow plugs and fuel injection pump relay
Battery sensing Battery and charging system
Instrument cluster Instrument cluster, battery saver, number plate lamp, generic electronic module (GEM)
Side and tail lamps Side and tail lamps
Central locking and alarm horn Central locking and alarm horn
Hazard warning flashers and direction indicators Hazard warning flashers and direction indicators
Ignition Ignition
Trailer towing module Trailer towing module
Automatic transmission Durashift EST
Brake lamps Brake lamps
Reversing lamp Reversing lamp

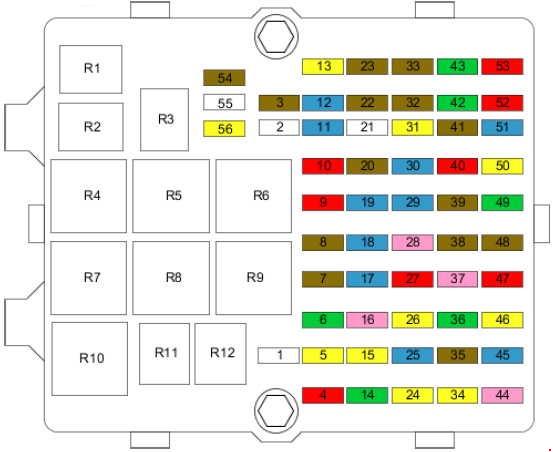

Fuse Box on the Dashboard

Ford Fusion – fuse box diagram – dashboard
Ford Fusion – fuse box diagram – dashboard
Number Ampere ratting [A] Description
F1
F2 Trailer towing module
F3 7,5 Lighting
Trailer towing module
F4 10 Air conditioning, blower motor
F5 20 ABS, ESP
F6 30 ABS, ESP
F7 7,5 Automatic transmission
15 Automatic transmission
F8 7,5 Power mirrors
F9 10 Left low beam headlamp
F10 10 Right low beam headlamp
F11 15 Daytime running lights
F12 15 Engine management
F13 20 Engine management, catalytic converter
F14 30 Starter
F15 20 Fuel pump
F16 3 Engine management (PCM Memory)
F17 15 Light switch
F18 15 Radio, diagnostic connector
F19 15 Daytime running lights
F20 7,5 Instrument cluster, battery saver, number plate lamp, generic electronic module
F21
F22 7,5 Position and side lights (left)
F23 7,5 Position and side lights (right)
F24 20 Central locking, alarm horn, GEM-Module (TV)
F25 15 Hazard warning lights, direction indicators (GEM module)
F26 20 Heated rear screen (GEM-Module)
F27 10 Horn (GEM-Module)
15 Horn (GEM-Module)
F28 3 Battery, charging system
F29 15 Cigar lighter
F30 15 Ignition
F31 10 Light switch
20 Trailer towing module
F32 7,5 Heated mirror
F33 7,5 Instrument cluster, battery saver, number plate lamp, generic electronic module
F34 20 Sunroof
F35 7,5 Heated front seats
F36 30 Power windows
F37 3 ABS, ESP
F38 7,5 Generic electronic module (Terminal 15)
F39 7,5 Air bag
F40 7,5 Transmission
10 Low beam
F41 7,5 Automatic transmission
F42 30 Heated front screen
F43 30 Heated front screen
F44 3 Radio, diagnostic connector (Terminal 75)
F45 15 Stop lights
F46 20 Front screen wiper
F47 10 Rear screen wiper
10 Front screen wiper (Hi.)
F48 7,5 Backup lamps
F49 30 Blower motor
F50 20 Fog lamps
F51 15 Auxiliary power socket
F52 10 Left high beam headlamp
F53 10 Right high beam headlamp
F54 7,5 Trailer towing module
F55
F56 20 Trailer towing module
Relay
R1 Power mirrors
Lighting
R2 Heated front screen
Low beam
R3 Ignition
Daytime running lights
R4 Low beam headlamp
Ignition
R5 High beam headlamp
Starter
R6 Fuel pump
Mirror folding
R7 Starter
Heated front screen
R8 Cooling fan
Daytime running lights
Starter
R9 Daytime running lights
Engine management
R10 Charging system
Mirror folding
R11 Engine management
Fuel pump
R12 Power mirrors
Battery saver relay

Engine Compartment Fuse Box

Ford Fusion – fuse box diagram – engine compartment fuse box
Ford Fusion – fuse box diagram – engine compartment fuse box
Number Ampere ratting [A] Description
F1 80 Auxiliary heater (РТС)
F2 60 Auxiliary heater (РТС), TCU
F3 60 Auxiliary heater (РТС) / Glow plug
F4 40 Cooling fan, air conditioning
F5 60 Lighting, Generic electronic module (GEM)
F6 60 Ignition
F7 60 Engine, lighting
F8 60 Heated front screen, ABS, ESP

Engine Compartment Relay Box

Ford Fusion – fuse box diagram – engine compartment relay box
Ford Fusion – fuse box diagram – engine compartment relay box
Number Description
R1 Air conditioning
R2 Cooling fan
R3 Auxiliary heater (РТС)
Backup lamps
R4 Auxiliary heater (РТС)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
