Ford Fiesta (2008-07-21 – 2009-01-04) – fuse box (EU version)
Year of production: 2008, 2009
Engine compartment fuse box

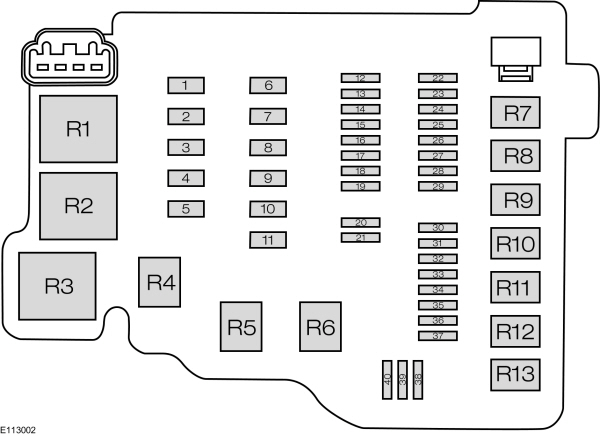

Ford Fiesta – fuse box- engine compartment
Fuse
Ampere rating [A]
Circuits protected
1
40
ABS module
30
ABS ESP module
2
60
Cooling system fan high speed
3
40
Cooling system fan
30
Cooling system fan low speed
4
30
Heater blower
5
60
Passenger compartment fuse box supply (battery)
6
30
Body control module
7
60
Passenger compartment fuse box supply (ignition)
8
60
Glow plugs
9
60
Heated windscreen
10
—
Not used
11
30
Starter relay
12
10
Main beam left-hand relay
13
10
Main beam right-hand relay
14
10
Dipped beam left-hand relay
15
10
Dipped beam right-hand relay
16
15
Powertrain control module, high and low cooling fan
17
15
Heated oxygen (HEGO) sensors (Petrol engines)
20
Power supply module (Diesel engines)
18
10
FN (Automatic) transmission
19
—
Not used
20
—
Not used
21
—
Not used
22
15
Lighting control battery supply
23
15
Front fog lamps
24
15
Direction indicators
25
10
Daytime running lamps
26
7,5
Electric exterior mirrors switch, electric folding mirrors, power window (driver’s door)
27
7,5
Powertrain control module
28
20
ABS module, ESP
29
10
Air conditioning clutch
30
—
Not used
31
—
Not used
32
20
Horn, battery saver, keyless vehicle module
33
20
Heated rear window
34
20
Fuel pump relay, diesel fuel heater
35
—
Not used
36
—
Not used
37
—
Not used
38
—
Not used
39
—
Not used
40
—
Not used
Relay
Circuits switched
R1
Cooling system fan
R2
Glow plugs (DV4 Stage 4 only), Heated windscreen
R3
Powertrain control module
R4
Main beam
R5
Dipped beam
R6
Daytime running lamps
R7
Engine cooling fan
R8
Starter
R9
Air conditioning clutch
R10
Front fog lamps
R11
Fuel pump, fuel heater
R12
Reverse lamp
R13
Heater blower

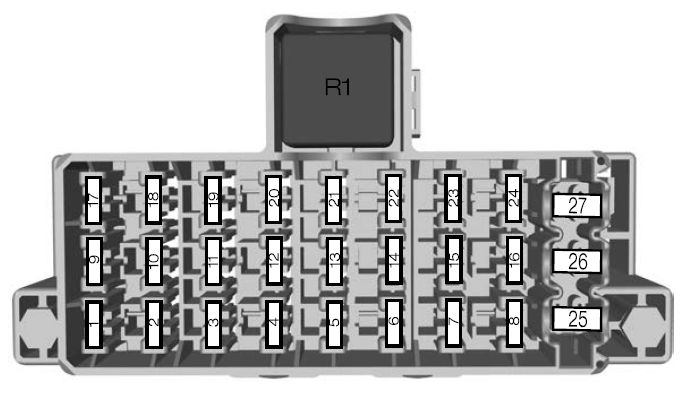

Passenger compartment fuse box – Type 1
Ford Fiesta – fuse box diagram – passeneger comaprtment Type 1
Fuse
Ampere rating [A]
Circuits protected
1
7,5
Ignition, rain sensor, heated windscreen
2
10
Stop lamps
3
7,5
Reversing lamp, Rear view camera (VP)
4
7,5
Headlamp levelling
5
20
Windscreen wipers
6
15
Rear window wiper
7
15
Washer pump
8
10
Parking aid (vehicles with front parking aid)
9
—
Not used
10
7,5
Heated seats
11
—
Not used
12
10
Airbag module
13
10
Ignition, electric power assisted steering, instrument cluster, passive anti theft system, ABS
14
7,5
Powertrain control module, gear selector lever, fuel pump,
15
7,5
Audio system, instrument cluster
16
7,5
Heated exterior mirror
17
15
Ignition switch
18
20
Cigar lighter, front power poin
19
15
Data link connector
20
20
Trailer module
21
15
Audio system, Navigation, Bluetooth
22
7,5
Instrument cluster
23
7,5
Multi functional display, clock, internal scanner, heating ventilating, air conditioning panel
24
—
Not used
25
30
Power windows (front)
26
30
Heated windscreen, left-hand side
27
30
Heated windscreen, right-hand side
Relay
Circuits switched
R1
Ignition

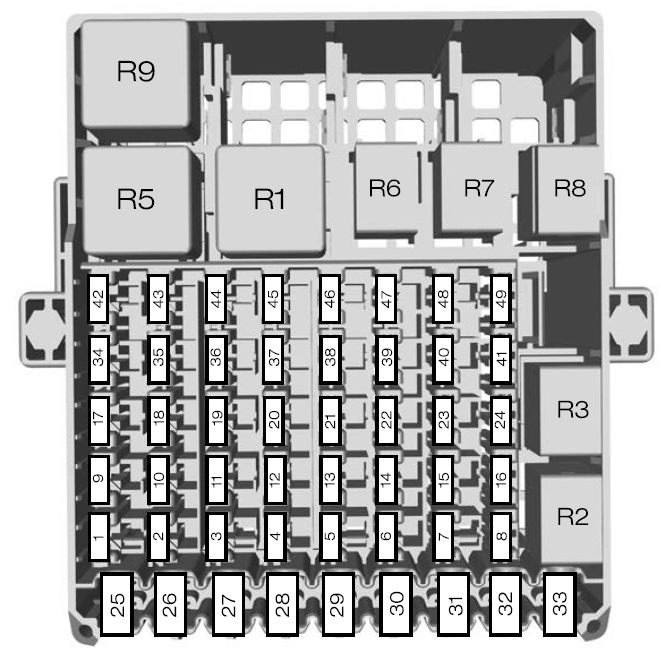

Passenger compartment fuse box – Type 2
Ford Fiesta – fuse box diagram – passeneger comaprtment Type 1
Fuse
Ampere rating [A]
Circuits protected
1
7,5
Ignition, rain sensor, heated front screen
2
10
Stop lamps
3
7,5
Reversing lamp
4
7,5
Headlamp levelling
5
20
Windscreen wipers
6
15
Rear window wiper
7
15
Washer pump
8
10
Parking aid (vehicles with front parking aid)
9
—
Not used
10
7,5
Heated seats
11
—
Not used
12
10
Airbag module
13
10
Ignition, electric power assisted steering, instrument cluster, passive anti theft system, ABS
14
7,5
Powertrain control module, gear selector lever, fuel pump
15
7,5
Audio system, instrument cluster
16
7,5
Heated exterior mirror
17
15
Ignition switch
18
20
Cigar lighter, Front power point
19
15
Data link connector
20
20
Trailer module
21
15
Audio system, Navigation, Bluetooth
22
7,5
Instrument cluster
23
7,5
Multi functional display, clock, internal scanner, Heating Ventilating and Air Conditioning panel
24
—
Not used
25
30
Power windows (front)
26
30
Heated windscreen, left-hand side
27
30
Heated windscreen, right-hand side
28
30
Voltage Quality Module
29
—
Not used
30
20
Cigar lighter, Front power point
31
30
Power windows (rear)
32
—
Not used
33
—
Not used
34
20
Keyless entry
35
20
Keyless entry
36
—
Not used
37
—
Not used
38
—
Not used
39
—
Not used
40
—
Not used
41
—
Not used
42
—
Not used
43
—
Not used
44
—
Not used
45
—
Not used
46
—
Not used
47
—
Not used
48
—
Not used
49
—
Not used
Relay
Circuits switched
R1
Ignition
R2
Power fold mirror 1
R3
Power fold mirror 2
R4
Not used
R5
Not used
R6
Keyless entry (accessory)
R7
Keyless entry (ignition)
R8
Not used
R9
Not used
R10
Not used
R11
Not used
R12
Not used
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
