Ford F-250 (2008 – 2010) – fuse box diagram

Ford F-250 (2008 – 2010) – fuse box diagram

Year of production: 2008, 2009, 2010

Passenger Compartment Fuse Box

The fuse panel is located in the passenger’s footwell.

Ford F-250 – fuse box diagram – passenger compartment
Ford F-250 – fuse box diagram – passenger compartment
Number Ampere rating [A] Description
1 30
2 15
3 15 Family Entertainment System (FES)
4 30
5 10 Keypad illumination, Brake-Shift Interlock (BSI), SPBJB
6 20 Turn signals
7 10 Left headlamp (Low beam)
8 10 Right headlamp (Low beam)
9 15 Interior lighting, Lighted running boards
10 15 Cargo lamp, Puddle lamp, Switch backlight
11 10
12 7,5 Power mirror switch, Driver power seat (Memory)
13 5
14 10 Upfitter relay #3 feed
15 10 Climate control head
16 15 Upfitter Relay #4 Feed
17 20 All lock motor feeds
18 20 Heated seat relay feed
19 25
20 15 Adjustable pedals, Datalink
21 15 Fog lamp relay feed, Cornering lamps
22 15 Park lamp relay feed
23 15 High beam headlight relay feed
24 20 Horn relay feed
25 10 Power telescoping mirror switch Demand lamps – underhood and illuminated visor (battery saver)
26 10 Cluster
27 20 Ignition switch feed, Passenger compartment fuses 28, 42, 43, 44, and 45, Engine compartment starter relay coil #57 (Diesel engine), Accessory shutoff control module (if equipped) (Diesel engine), Engine compartment starter relay diode (gasoline engines)
28 5 Radio
29 5
30 5
31 10 Compass
32 10 Restraints Control Module (RCM), Passenger Airbag Deactivation Indicator
33 10 Trailer tow brake controller, Trailer tow battery charge relay coil
34 5
35 10 Reverse Sensing System (RSS), 4×4 module, 4×4 solenoid, Traction control switch, Tow/Haul switch (Diesel engine)
36 5 Passive Anti-Theft System (PATS) transceiver, Cluster control
37 10 Dual automatic or Manual climate control, PTC control
38 20 Subwoofer
39 20 Radio, Navigation radio and amplifier
40 20 4×4 module, Satellite radio module, SYNC, GPS
41 15 Radio, Electrochromatic rear view mirror, Lock switch illumination
42 10 Heated seat relay coil, Upfitter switch relay coils, Heated mirror relay coil
43 10 Fuel tank selector switch, 4×4 module
44 10 Run/Start customer access feed (PTO)
45 5 Front wiper logic, Blower motor relay coil
46 7,5 E/C mirror
47 Circuit Breaker: Power windows, Moonroof, Power Sliding Backlite
Relay
49 Delayed accessory

Engine Compartment Fuse Box

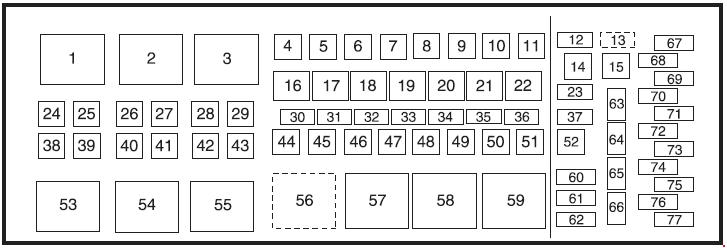

Ford F-250 – fuse box diagram – engine compartment
Ford F-250 – fuse box diagram – engine compartment
Number Ampere rating [A] Description
4
5 30 Trailer Brake Controller (TBC)
6 40 ABS module (Pump)
7 30 Upfitter auxiliaiy switch #1
8 30 Upfitter auxiliaiy switch #2
9 40 ABS module (Coil)
10 20 Cigar lighter
11 20 Instrument panel power point
12 15 Brake On/Off (BOO) relay feed
13 5 Brake switch, Brake switch relay coil, SJB module, 4×4 module
14
15
23 15 Heater mirror, Heated spotted mirror
24 40 Blower motor relay
25
26 30 ESOF relay lo-hi
27 50 Diesel: Glow Plug Control Module (GPCM) #1
28 20 Heated mirror relay
29 30 Passenger power seat
30 10 A/C dutch relay
31 15 Power fold mirror relay
32 20 Fuel pump relay
33 20 Back-up lamp relay
34 25 Trailer stop/turn relay
35 5 ESOF relay coils
36 10 Gasoline: Powertrain Control Module (PCM) keep alive power, Canister vent
Diesel: Engine Control Module (ECM) keep alive power
37 10 Diesel: Transmission Control Module (TCM)
38
39 50 Diesel: ECM power
40 30 Starter relay
41 20 Power point (Center console -Front)
42 30 Trailer park lamp relay
43 20 Power point (Center console – Rear)
44 30 Trailer battery charge relay
45 30 Driver power seat or Memory module, Air ride seat
46 40 Run/Start relay
47 50 Diesel: GPCM #2
48 30 ESOF relay lii-lo
49 30 Wiper motor
50 30 Gasoline: PCM relay coil, PCM relay
51
52
63 15 Trailer tow back-up lamps
64 5 Mirror marker lamps
65
66
67
68
69
70 10 Gasoline: A/C clutch relay coil, Refrigerant Containment Switch, Heated PCV
Diesel: A/C clutch relay coil, Clutch switch, Fuel pump cooler, A/C cycle pressure switch
71 5 Fuel pump relay diode, PCM/E CM Run/Start power
72 15 Gasoline: Ignition coils
Diesel: Engine TCM
73 2 Reverse Camera System (RCS)
74 20 Gasoline: VPWR: Heated exhaust gas oxygen sensor, CMS, Mass air flow sensor, Electronic vapor management valve, CMCV, Variable cam timing, IMTV
Diesel: VPWR: Engine loads
75 5 Back-up relay coil power
76 20 Gasoline: VPWR: PCM
Diesel: VPWR: ECM
77 10 ABS module logic
Diode
60 Gasoline: Starter relay
One-touch start (OTIS)
61 A/C clutch
62 Fuel pump
Relay
1 Blower motor/Variable blower control (Dual Zone Climate Control)
2 Electronic Shift-on-the-Fly (ESOF) Lo-Hi
3 Heater mirror
16 A/C clutch
17 Wipers
18 Gasoline: Fuel Pump Driver Module (FPDM), Fuel injectors
Diesel: Diesel Fuel Control Module (DFCM)
19 Back-up lamps, Reverse Sensing System (RSS), Engine compartment fuse 63
20 Trailer stop/turn (Left)
21 Trailer stop/turn (Right)
22 Stop lamps, Center High-Mounted Stop Lamp (CHMSL), TBC, Customer access
53 Diesel: PCM power bus (Fuses 68, 70, 72, 74, 76)
54 Starter solenoid
55 Trailer tow park lamps
56 Trailer tow battery charge
57 Power Distribution Box (PDB) bus (fuses 67, 69, 71, 73, 75, 77)
SJB Run /Start bus (Fuses 29-37, 46)
58 ESOF hi-lo
59 Gasoline: PCM power bus (Fuses 68, 70, 72, 74, 76)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
