Ford Explorer UN46 (1990 – 1994) – fuse box diagram

Ford Explorer UN46 (1990 – 1994) – fuse box diagram

Year of production: 1990, 1991, 1992, 1993, 1994

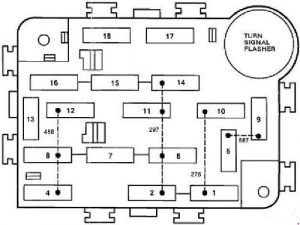

Passenger Compartment Fuse Panel

Ford Explorer UN46 – fuse box diagram – passenger compartment
Ford Explorer UN46 – fuse box diagram – passenger compartment
Number Ampers Protected circuit
1 15 Dome/Courtesy Lamp, Radio Memory, Power Mirror
2 6 Circuit Breaker: Windshield Wiper/Washer, Interval Wiper/Washer
3
4 15 Stoplamps, Flash to Pass, Speed Control Inhibit
5 15 Turn Lamps, Backup Lamps, Daytime Running Lamps, Heated Backlite, Turn Indicator
6 15 Liftgate Wiper/Washer
7 10 A/C Switches, Clutch Coil
8 20 Horns
9 30 Heater Blower Motor Relay
10 15 Parking Lamps, License Lamps, Trailer Park Lamp Relay Coll
11 15 Speed Control, Radio, Clock Display
12 20 Circuit Breaker: Cigar Lighters, Flash to Pass, Power Lumbar, Multi-Function Switch
13 10 Instrument Panel Illumination Lamps
14 30 Circuit Breaker: Power Windows
15 20 Anti-Lock Brakes
16 20 Premium Radio Amp., Trailer Tow Relay Feeds
17 15 Warning Gauge, Warning Lamps, 4 Wheel Drive
18 10 HEGO Heater

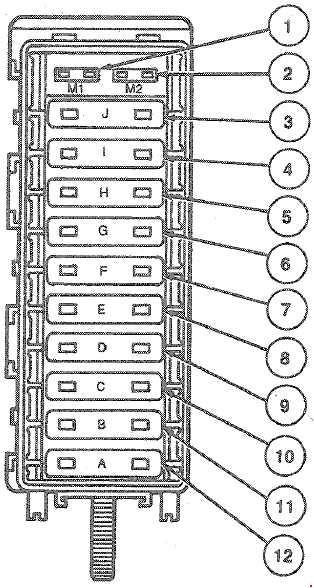

Power Distribution Box

Ford Explorer UN46 – fuse box diagram – power distribution box
Ford Explorer UN46 – fuse box diagram – power distribution box
Number Ampers Protected circuit
1 15 Underhood Lamp, Daytime Running Lamps
2 15 Alternator Field
3 30 Fuel Pump Relay
4 40 Headlamps, Fuse Panel
5 50 Blower Motor
6 40 Fuse Panel Feed
7 30 Power Door Locks
8 40 Rear Window Defroster
9 60 Power Lumbar
10 30 EEC Power Relay
11 20 Electronic Shift
12 60 Ignition Switch, Premium Sound, Trailer Tow

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
