Ford Explorer U502 (2016 – 2018) – fuse box diagram

Ford Explorer U502 (2016 – 2018) – fuse box diagram

Year of production: 2016, 2017, 2018

Passenger Compartment Fuse Panel

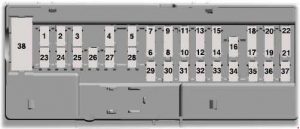

Ford Explorer U502 – fuse box diagram – passenger compartment
Ford Explorer U502 – fuse box diagram – passenger compartment
Number Ampers Protected circuit
1 10 Demand lamps, Battery saver
2 7,5 Memory seat switch (lumbar power)
3 20 Driver unlock relay
4 5 Aftermarket electronic brake controller
5 20 Rear heated seat module
6
7
8
9
10 5 Securlcode™ keyless entry keypad, Hands free llftgate
11 5 Rear climate control module
12 7,5 Front climate control module
13 7,5 Instrument cluster, Smart data link, Steering column control module
14 10 2017: Extended power module
15 10 Smart datallnk connector power, Heads up display
16
17 5 Electronic finish panel
18 5 Push button start switch, Ignition switch, Key Inhibit
19 7,5 Transmission control switch
20
21 5 Terrain management switch, Heads up display, Humidity sensor
22 5 Occupant classification sensor
23 10 Delayed accessory power, Power windows, Moonroof, Folding mirror relay, DC Inverter, Wlndow/moonroof switch Illumination
24 20 Central lock relay
25 30 Left-hand front smart window motor, Door zone module
26 30 Right-hand front smart window motor, Door zone module
27 30 Moonroof
28 20 Sony amplifier -10 channel
29 30 Sony amplifier -14 channel
30
31
32 10 SYNC, GPS module, Display, Radio frequency receiver
32 20 Radio
34 30 Run/start relay
35 5 Restraints control module, Extended power module (2017)
36 15 Lane departure warning module, Auto high beam, EC mirrors, Rear heated seats
37 20 Heated steering wheel
38 30 Left-hand front window motor, Rear power window motors

Power Distribution Box

Ford Explorer U502 – fuse box diagram – power distribution box
Ford Explorer U502 – fuse box diagram – power distribution box
Number Ampers Protected circuit
1 20 Powertrain control module power
2 20 Engine emissions (MIL)
3 20 A/C clutch control relay coll, VACC, Active grille shutters
4 20 Ignition colls
5
6
7
8
9
10 15 Heated mirrors
12 40 Heated rear window
13
15 20 Horn relay power
16 10 A/C clutch relay power
22 25 Electronic fan relay 2
23
24
25
26 30 Anti-lock brake system valves
27 30 2017: Trailer tow battery charge relay power
20 2016: Trailer tow battery charge relay power
28
30
31 10 Electric power-assisted steering
32 10 Anti-lock brake system module
33 10 Powertrain control module (ISPR)
34 10 Blind spot Information system, Adaptive cruise control, Front view camera, Rear camera
35
41 40 Rear blower motor
42
43 40 Front blower motor
44 50 Voltage quality module bus
45 40 Electronic fan relay 1
46 30 Trailer tow brake controller
47
48 50 Body control module RP1 bus
49
50 50 Body control module RP2 bus
51 50 Electronic fan relay 3
52 60 Anti-lock brake system pump
53
54
55
56 40 Power Inverter
57
58
59
60 20 Power point (front console bln)
61
62 20 Power point (Instrument panel)
63 30 Fuel pump
64
65 20 Power point (2nd row) (without USB charger)
66
67 20 Power point (cargo area)
68
69 30 Power llftgate
70 15 Trailer tow left-hand and rlght-har and direction Indicator lamps
71
72 30 Heated/cooled seats
73 30 Driver seat module, Driver seat power
74 30 Passenger seat power
75 30 Front wiper motor
76
77
78 30 3rd row power folding seat module
79 30 Starter relay
80
81 10 Trailer tow back-up lamp relay
82
83 10 Brake on/off switch
84
85 5 2nd row USB charger (If equipped)
86
87
88
89
90
91
92 15 Multi-contour seat module relay
93 10 Alternator sense
94 15 Rear washer relay
95 15 Rear wiper relay
96 10 Powertrain control module relay coll power
97 5 Rain sensor
98 20 2nd row seat motors
99 20 Trailer tow parking lamp relay
Relay
11 Right hand side electronic cooling fan 3 relay
14 Powertrain control module relay
17 Rear heated window and heated mirrors relay
18 Rear blower motor relay
19
20 Left hand side cooling fan relay
21 Cooling fans series/parallel relay
29 Run/start relay
36 Blower motor relay
37 Trailer tow battery charge relay
38 A/C compressor clutch relay
39 Horn relay
40

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
