Ford B-MAX (from 2012) – fuse box diagram

Ford B-MAX (from 2012) – fuse box diagram

Year of production: 2012, 2013, 2014, 2015, 2016

Engine compartment fuse box

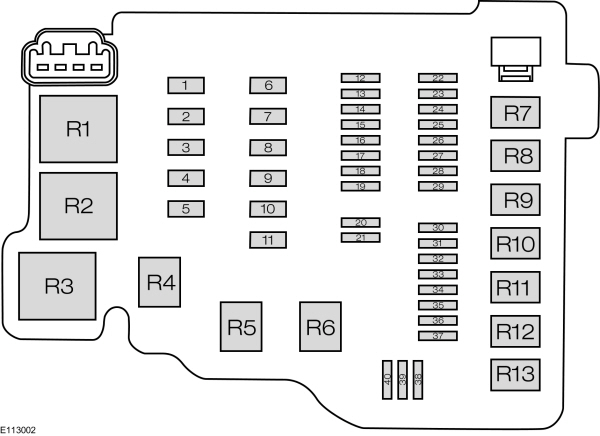

Ford B-MAX – fuse box- engine compartment
Ford B-MAX – fuse box- engine compartment
Fuse Ampere rating [A] Circuits protected
1 30 Anti-lock brake system module  Stability assist module
2 60 Cooling system fan high speed
3 40 Cooling system fan
30 Cooling system fan low speed
4 30 Heater blower
5 60 Passenger compartment fuse box supply (battery)
6 30 Body control module
7 60 Passenger compartment fuse box supply (ignition)
8 60 Glow plugs (Diesel engines)
50 DPS6 module
9 40 Heated windshield left-hand side
10 40 Heated windshield right-hand side
11 30 Starter relay
12 10 High beam left-hand relay
13 10 High beam right-hand relay
14 15 Run on pump
15 20 Ignition coil
16 15 Powertrain control module  High and low cooling fan
17 15 Heated oxygen sensors (gasoline engines)
20 Power supply module (diesel engines)
18 Not used
19 7,5 Air conditioning controller
20 Not used
21 Not used
22 20 Lighting control battery supply
23 15 Front fog lamps
24 15 Direction indicators
25 15 Exterior lighting left-hand side
26 15 Exterior lighting right-hand side
27 7,5 Powertrain control module
28 20 Anti-lock brake system  Stability assist
29 10 Air conditioning clutch
30 Not used
31 Not used
32 20 Horn  Battery saver  Keyless vehicle module
33 20 Heated rear window
34 20 Fuel pump relay  Diesel fuel heater
35 15 Category 1 alarm system
36 7,5 Automatic transmission controller
37 25 Front door module left-hand side
38 25 Front door module right-hand side
39 25 Rear door module left-hand side
40 25 Rear door module right-hand side



Relay Circuits switched
R1 Cooling system fan
R2 Not used
R3 Powertrain control module
R4 High beam
R5 Not used
R6 Not used
R7 Engine cooling fan
R8 Starter
R9 Air conditioning clutch
R10 Front fog lamps
R11 Fuel pump  Diesel fuel heater
R12 Reversing lamp
R13 Heater blower

Passenger compartment fuse box

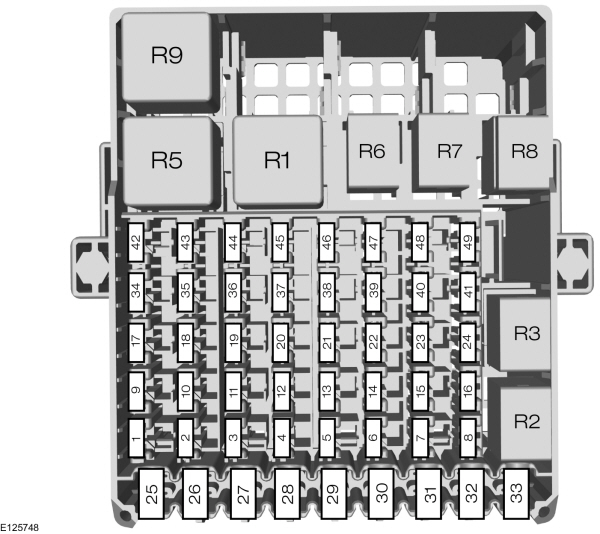

Ford B-MAX – fuse box- passenger compartment
Ford B-MAX – fuse box- passenger compartment
Fuse Ampere rating [A] Circuits protected
1 7,5 Ignition  Rain sensor  Heated windshield  Dome lamp  Interior mirror
2 10 Stop lamps
3 3 Reversing lamp
4 7,5 Headlamp leveling
5 Not used
6 15 Rear window wiper
7 15 Washer pump
8 Not used
9 15 Passenger heated seat
10 15 Driver heated seat
11 Not used
12 10 Airbag module
13 10 Ignition  Electric power assisted steering  Instrument cluster  Passive anti-theft system  Anti-lock brake system
14 7,5 Powertrain control module  Fuel pump  Transmission selector lever
15 7,5 Audio system  Instrument cluster
16 7,5 Audio system  Instrument cluster
17 Not used
18 Not used
19 10 Data link connector
20 20 Trailer module
21 15 Audio system  Navigation
22 7,5 Instrument cluster
23 7,5 Multi functional display  Clock  Internal scanner  Heating vents  Air conditioning panel
24 10 SYNC module
25 Not used
26 30 Front wiper left-hand side
27 30 Front wiper right-hand side
28 30 Voltage quality module
29 20 Rear power point
30 20 Cigar lighter  Auxiliary power point
31 Not used
32 Not used
33 Not used
34 20 Keyless entry
35 20 Keyless entry
36 Not used
37 15 Ignition switch
38 Not used
39 Not used
40 Not used
41 Not used
42 7,5 Rear view camera
43 10 Active city stop module
44 7,5 Passenger airbag deactivation indicator
45 Not used
46 Not used
47 Not used
48 Not used
49 Not used



Relay Circuits switched
R1 Ignition
R2 Cigar lighter
R3 Not used
R4 Active city stop relay
R5 Not used
R6 Keyless entry (accessory)
R7 Keyless entry (ignition)
R8 Battery saver relay
R9 Heated windshield left-hand side
R10 Heated windshield right-hand side
R11 Not used
R12 Not used

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
