Fiat Ulysse (2002 – 2011) – fuse box diagram

Fiat Ulysse (2002 – 2011) – fuse box diagram

Year of production: 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011

Fuse box in the glove compartment

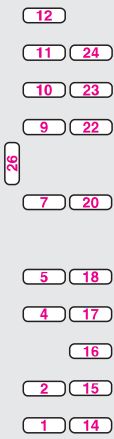

Fiat Ulysse – fuse box – dashboard
Fiat Ulysse – fuse box – dashboard
Fuse Ampere rating [A] Description
1 10 Rear fog lights
2 15 Rear heated window
4 15 Main electronic control unit power supply
5 10 Left brake light
7 20 Spot light, cigar lighter, glove compartment light on passenger’s side, automatic rear view mirror
9 30 Front sunroof, front windscreen wiper
10 20 Diagnosis socket
11 15 Electronic alarm, infotelematic Connect system, sound system, multifunction display, steering column controls, particulate filter
12 10 Right side light, number plate lights, climate system control lights, ceiling lights (first, second and third row)
14 30 Door locking system, Super door lock
15 30 Rear window wiper
16 5 Air bag system power supply, main electronic control unit power supply
17 15 Right brake light, third brake light, trailer brake lights
18 10 Diagnosis socket power supply, brake and clutch pedal switch
20 10 Sound system power supply for main electronic control unit
22 10 Left side light; trailer side light
23 15 Electronic alarm siren
24 15 Parking sensor power supply for main electronic control unit
26 40 Heated rear window



Fuse box on battery

In the scuttle on the floor in front of the passenger’s seat, next to the battery; to access it remove the protective cover.

Fiat Ulysse – fuse box diagram – on the battery
Fiat Ulysse – fuse box diagram – on the battery
Fuse Ampere rating [A] Description
1 40 Right electric sliding door
2 40 Left electric sliding door
3 30 Hi-fi amplifier
4 Free
29 Free
30 Free
31 Free
32 25 Driver’s seat with electric adjustment
33 25 Passenger’s seat with electric adjustment
34 20 Third row sunroof
35 20 Second row sunroof
36 10 Passenger’s heated seat
37 10 Driver’s heated seat
38 15 Children safety electric device
39 20 Third row 12V rear electric socket
40 20 Driver’s seat electric 12V socket

Fuse box in engine compartment

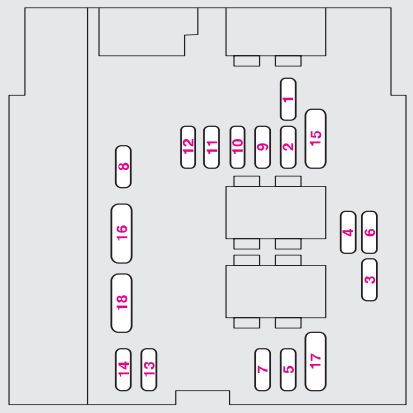

Fiat Ulysse – fuse box diagram – engine compartment
Fiat Ulysse – fuse box diagram – engine compartment
Fuse Ampere rating [A] Description
1 10 Reverse light switch, Xenon lights, electric fan controls, engine coolant level, heated diesel filter, preheating spark plugs, speed control system, air debit gauge
2 15 Fuel pump, exhaust gas recirculation and turbo-compressor control system
3 10 ABS, ESP
4 10 Keyed service power supply, for main electronic control unit
5 10 Particulate filtering system
6 15 Front fog lights
7 20 Headlight washers
8 20 Relay power supply for main electronic control unit, electric fan relay controls , diesel pressure adjusting solenoid valve and exhaust gas recirculation
9 15 Left dipped beam headlight, headlight beam corrector
10 15 Right dipped beam headlight
11 10 Left main beam headlight
12 10 Right main beam headlight
13 15 Horn
14 10 Windscreen wiper pump – rear window wiper
15 30 Lambda sensor, injectors, spark plugs, canister solenoid valve, injection pump solenoid valve
17 30 Windscreen wiper
18 40 Additional fans



Fuse Ampere rating [A] Description
MAXI-FUSE 50 Electric fan (second speed)
MAXI-FUSE 50 ABS, ESP
MAXI-FUSE 30 ESP electric fan
MAXI-FUSE 60 Main electronic control unit power supply 1
MAXI-FUSE 70 Main electronic control unit power supply 2
MAXI-FUSE 30 Electric fan (first speed)
MAXI-FUSE 40 Fiat CODE system
MAXI-FUSE 50 Climate control system additional fans

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
