Fiat Strada (2007 – 2017) – fusebox diagram

Fiat Strada (2007 – 2017) – fusebox diagram

Year of production: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017

Dashboard fuse box

The fuse box is located under the instrument panel, to the left of the steering wheel.

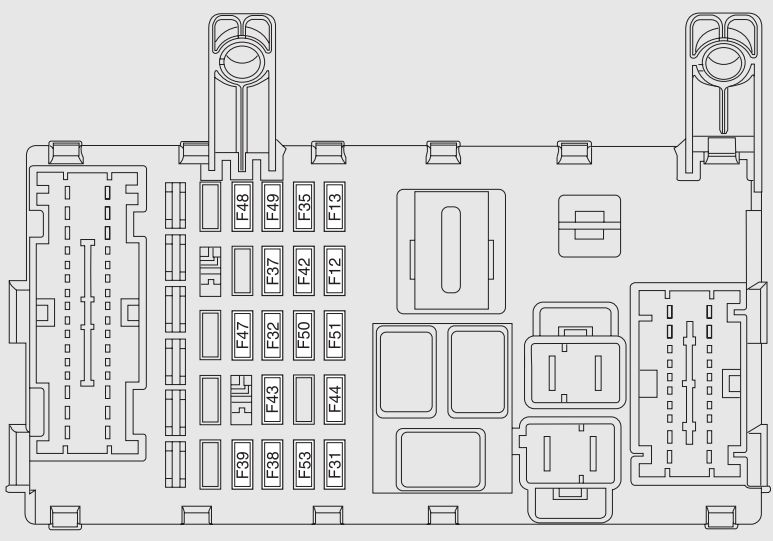

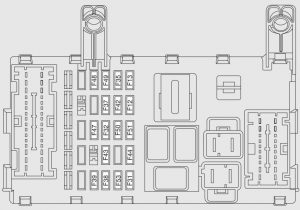

Fiat Strada – fuse box diagram – passenger compartment
Fiat Strada – fuse box diagram – passenger compartment
Device protected Fuse Ampere ratting [A]
ARight dipped headlight F12 15
Left dipped headlight, headlight alignment corrector F13 15
Supply for reversing light, relay switch coils on engine compartment fuse box, manual climate control system F31 7,5
+30 exterior lighting control supply F32 15
Brake light switch supply (NC signal) F35 10
Brake lights, instrument panel node F37 10
Central locking F38 20
+30 supply for roof light, glove compartment light, radio F39 15
ABS control unit F42 7,5
Windscreen wiper, two-way pump F43 30
Power socket – cigar lighter F44 20
Front left electric window F47 30
Front right electric window F48 30
+15 services supply for radio, electric mirrors, central and side control panel lighting, electric mirror control lighting F49 7,5
Airbag system F50 7,5
+ supply for number plate lights, heater control lighting, power socket – cigar lighter lighting, radio lighting F51 7,5
Direction indicators, hazard warning lights, instrument panel node F53 10

Engine compartment fuse box

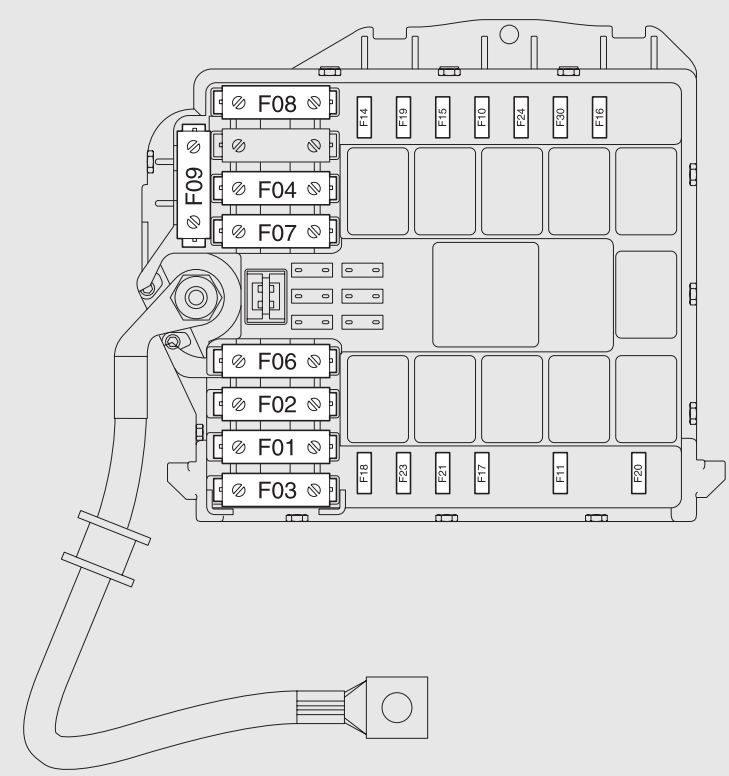

Fiat Strada – fuse box diagram – engine compartment
Fiat Strada – fuse box diagram – engine compartment
Device protected Fuse Ampere rating
Plug preheating F00 60
Dashboard fuse box – basic F01 70
Dashboard fuse box – optional F02 40
Ignition switch F03 20
Anti-slip system F04 50
Single speed – Radiator fan first speed F06 30/40*
Single speed – Radiator fan second speed F07 40/60*
Climate control fan F08 40
Horn f10 15
Speedometer generator, canister solenoid valve, preheating control unit, secondary loads, engine management system F11 15
Right main beam headlight F14 10
Left main beam headlight F15 10
Engine management control unit, engine management system relay switch, engine cooling system remote control switch F16 7,5
Engine management control unit (supply), diesel pump solenoid valve unit F17 10
Engine management control unit F18 7,5
Climate control compressor F19 7,5
Heated filter F20 20
Fuel pump, cut-off system F21 15
Additional headlights F23 15
Ignition-operated +15 positive pole F24 10
Fog lights F30 15

(*) For versions/markets, where provided

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
