Fiat Scudo (2006 – 2016) – fuse box diagram

Fiat Scudo (2006 – 2016) – fuse box diagram

Rok produkcji: 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016

Fuse box on the dashboard on passenger side

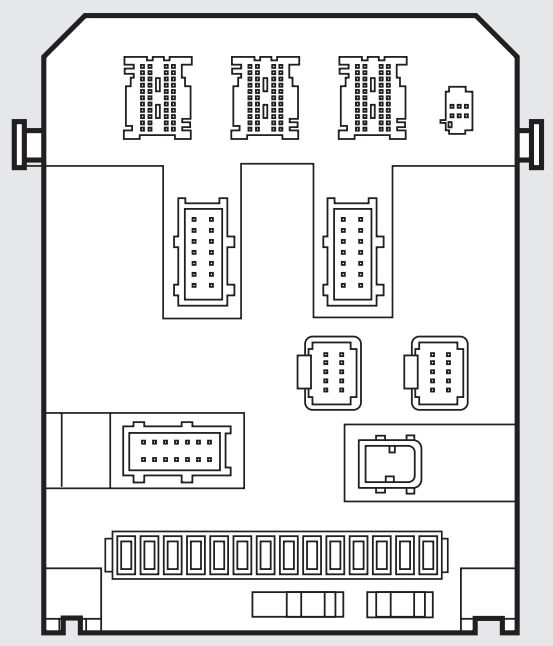

Fiat Scudo – fuse box – passenger compartment
Fiat Scudo – fuse box – passenger compartment
Users Fuse Ampere rating [A]
Rear window wiper F1 15
Free F2
Airbag control unit F3 5
Headlight aiming device, diagnostic socket, ESP control unit, ventilation, particulate filter pump, steering sensor F4 10
Power rearview mirror, passenger power window F5 30
Front window power F6 30
Ceiling lights, glovebox light F7 5
Multi-function Display, anti-theft alarm siren, sound system, CD-Changer, Radiotelephone, trailer services control unit, Panel workers protection control unit F8 20
Cigar lighter, load compartment outlet F9 10
Rear trimming strip, starting device, instrument panel F10 30
Diagnostic socket, anti-theft system control unit F11 15
Kit main libre, airbag control unit F12 15
Engine utilities control unit, trailer utilities control unit F13 5
Rain sensor, automatic acclimatiser instrument panel, ventilation rear part of passenger compartment (combined fittings) F14 15
Door locking/unlocking F15 30
Free F16
Rear heated window and door mirrors defroster F17 40

Fuse box in engine compartment

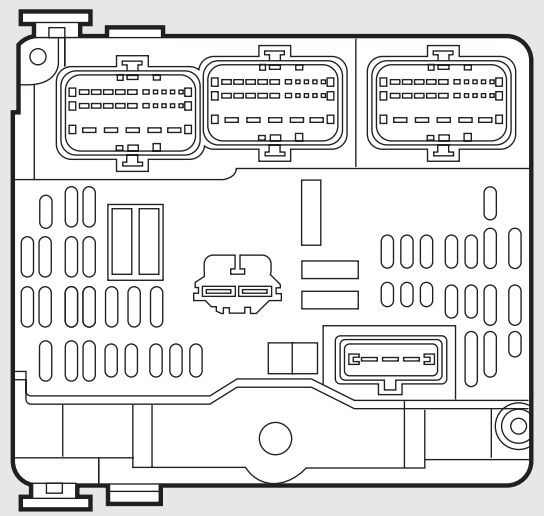

Fiat Scudo – fuse box – engine compartment

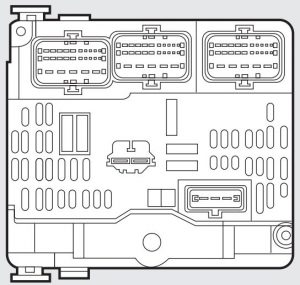

Fiat Scudo – fuse box – engine compartment
Users Fuse Ampere rating [A]
Engine control unit, fuel and air supply device, fan unit F1 20
Horn F2 15
Windscreen and rear window washing pump F3 10
Headlight washing pump F4 20
Fuel supply device F5 15
Secondary brake pedal contact, power steering F6 10
ABS/ESP F7 10
Ignition switch F8 20
Main brake pedal contact F9 10
Fuel and air supply device F10 30
Front ventilation F11 40
Windscreen wiper F12 30
Utilities control unit F13 40
Free F14 30

Fuse box in passenger compartment (on battery)

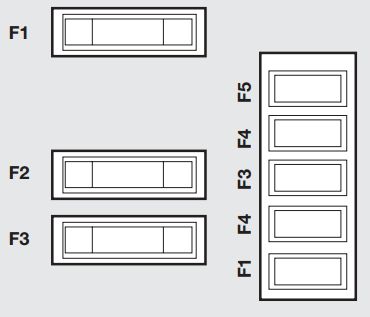

Fiat Scudo mk2 – fuse box – engine compartment (on the battery)
Fiat Scudo mk2 – fuse box – engine compartment (on the battery)
Users Fuse Ampere rating [A]
Seat warming system F1 30
12V socket –third row seats (combined fittings) F2
Trailer services control unit and (where provided) Panel workers protection control unit F3 40/50
Free F4
Swing-door locks F36 15
Swing-door locks F37 10
Rear window wiper on swing-door F38 20
Ventilation rear part of passenger compartment (combined fittings) F39
Folding mirrors F40 5

Additional fusebox

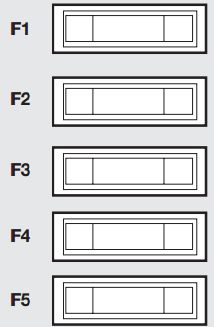

Fiat Scudo – fuse box – optional box

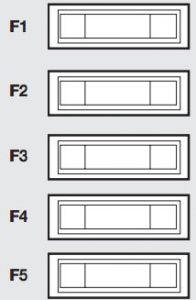

Fiat Scudo – fuse box – optional box
Users Fuse Ampere rating [A]
Free F1 15
Optional generator and contact relay F2 15
Trailer power F3 15
Permanent power for converters F4 15
Hazard lights F5 40

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
