Fiat Marea – fuse box diagram

Fiat Marea – fuse box diagram

Year of production:

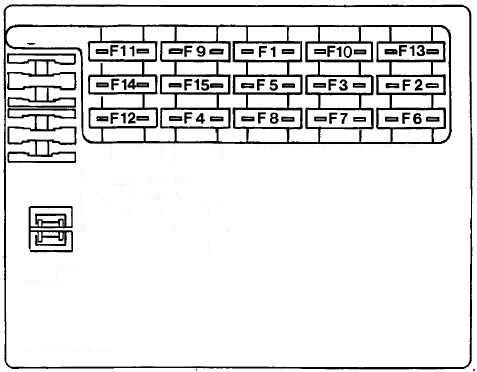

The Instrument Panel Fuse Panel (No.1)

Fiat Marea – fuse box diagram – instrument panel
Fiat Marea – fuse box diagram – instrument panel
No. A Fused component
1 10 Brake lights – Additional brake light – Direction indicators – Instrument supply
2 10 Right front side light – Left rear side light – Right number plate light – Radio light – Instrument pane light dimmer – Side lights warning light – Cigar lighter light – Switch panel light – Automatic transmission controls light – Radio phone light – Heater/air conditioning controls light
3 10 Left front side light – Right rear side light – Left number plate light – Mirror controls light
4 10 Right dipped beam headlamp
5 10 Left dipped headlamp – Headlamp alignment corrector – Headlamp washer enablement
6 10 Right main beam headlamp
7 10 Left main beam headlamp – Main beam headlamps warning light
8 20 Central locking – Luggage compartment light
9 10 Hazard warning lights
10 10 Interior lights (front and rear) – Instrument supply – Remote control receive and alarm control unit supply – Radio phone supply
11 30 Heated rear windscreen – Mirror demisting
12 30 Car interior climate control fan motor (air conditioning)
Air conditioning control unit
13 20 Horns
14 20 Windscreen wiper – Rearscreen wiper – Windscreen/rearscreen washer – Headlamp washer enablement
15 20 Air conditioning control unit – Vehicle interior fan motor (with heater)

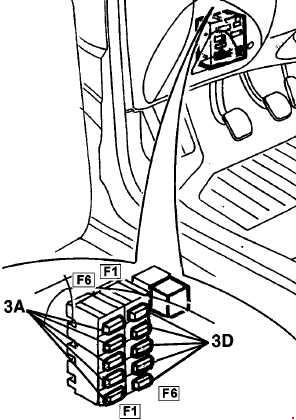

The Instrument Panel Fuse Panel (No.2)

Fiat Marea – fuse box diagram – instrument panel
Fiat Marea – fuse box diagram – instrument panel
No. A Fused component
1 7,5 Injection memory and CODE
2 7,5 Compressor and air conditioner
3 10 ABS
4 7,5 Injection and CODE
5 20 Headlamp washers
6 7,5 Ignition activated services (15/54)
3D
1 7,5 Ignition activated services (INT)
2 15 Foglamps
3 25 Rear electric windows
4 25 Front electric windows
5 30 Sun roof, seats, cigar lighter
6 10 Airbag

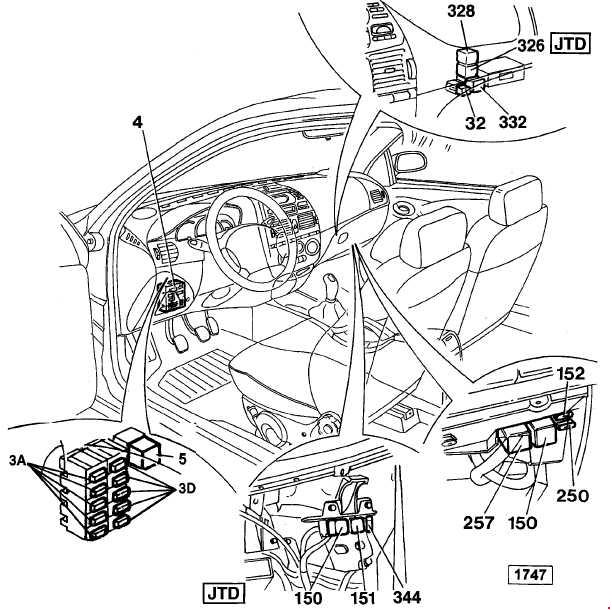

Location Of Relays And Fuses On The Car  (Passenger Compartment)

Fiat Marea – fuse box diagram – location – passenger compartment
Fiat Marea – fuse box diagram – location – passenger compartment
No. Location
3A/D Supplementary fusebox
4 Junction unit
5 Dipped headlamps relay feed
32 Fog lamp control relay
150 Injection sytem control relay (1747) (JTD)
151 Lambda probe control relay for fuel pump and injectors
152 Fuse protecting injection system (1747) (JTD)
250 Fuse protecting fuel pump (1747)
257 Fuel pump control relay (1747)
326 Additional heater control unit
328 Hazard warning lights relay
332 Ignition activated power relay
344 Protection fuse ie. (JTD)

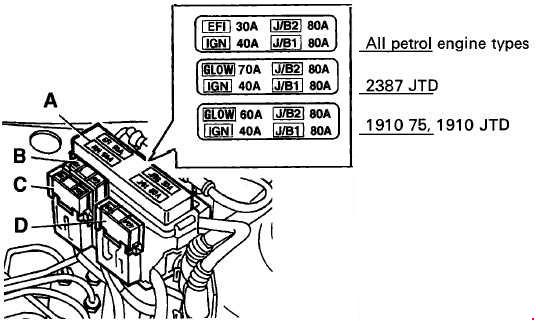

Fuse Box In The Engine Compartment

Fiat Marea – fuse box diagram – engine compartment
Fiat Marea – fuse box diagram – engine compartment
No. A Fused component
EFI 30 Petrol engine: Electronic injection
GLOW 60 1910 75, 1910 JTD: Plug
70 2387 JTD: Plug
IGN 40 Ignition switch
J/B1 80 Master supply
J/B2 60 Petrol engine: Master supply
80 Diesel engine: Master supply
B 30 Petrol engine without air conditioner: Fan
40 Engine 1242, 1581, 1747 updated. 99 with air conditioner, JTD, 1910 TD 75: Fan
50 Engine 1747, 1998 with air conditioner: Fan
C 60 ABS
D 40 Second fan (TD)
E 30 Electronic injection (JTD)

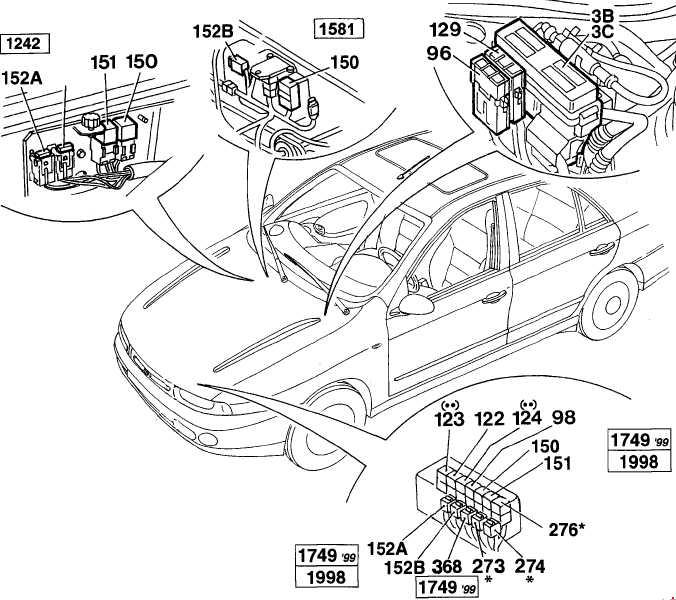

Location Of Relays And Fuses On The Vehicle (Bonnet – Petrol Engine Types)

Fiat Marea – fuse box diagram – location – engine compartment – petrol
Fiat Marea – fuse box diagram – location – engine compartment – petrol
No. Location
3B-3C Power fusebox
96 Power fuse protecting ABS
98 Headlamp washer intermittent function
122 Engine cooling fan low speed relay
123 Engine cooling fan high speed timer
124 Air condiitoning compressor control relay
129 Power fuse protecting engine coling fan
150 Injection system relay feed
151 Lambda probe control relay for fuel pump and injectors
152 Fuse protecting injection system
152A Fuse protecting injection system
152B Fuse protecting injection system
273 Fuse protecting automatic transmission system
274 Fuse protecting automatic transmission system
276 Starter enablement relay
368 Relay diode for injection system control

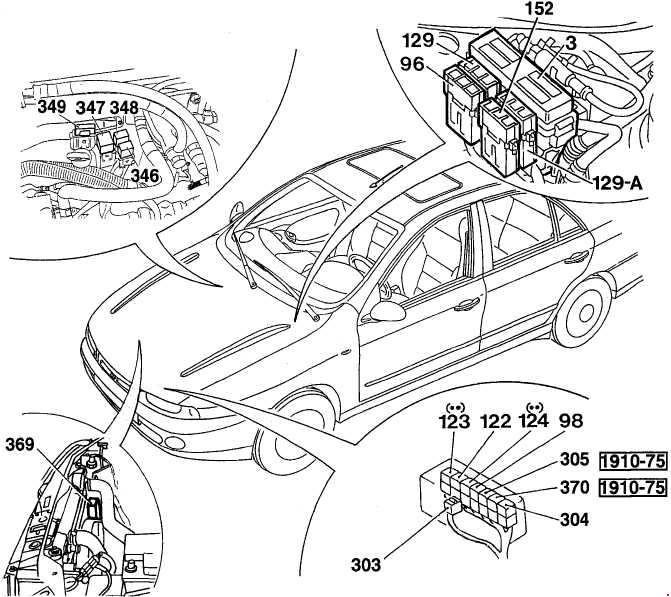

Location Of Relays And Fuses On The Vehicle (Bonnet – Diesel Engine Types)

Fiat Marea – fuse box diagram – location – engine compartment – diesel
Fiat Marea – fuse box diagram – location – engine compartment – diesel
No. Location
3A/D Supplementary fusebox
4 Junction unit
5 Dipped headlamps relay feed 32 Fog lamp control relay
150 Injection sytem control relay (1747) (JTD)
151 Lambda probe control relay for fuel pump and injectors
152 Fuse protecting injection system (1747) (JTD)
250 Fuse protecting fuel pump (1747)
257 Fuel pump control relay (1747)
326 Additional heater control unit
328 Hazard warning lights relay
332 Ignition activated power relay.
344 Protection fuse ie. (JTD)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
