Fiat Linea (2007 – 2013) – fuse box diagram

Fiat Linea (2007 – 2013) – fuse box diagram

Year of production: 2007, 2008, 2009, 2010, 2011, 2012, 2013

Fuse box on dashboard

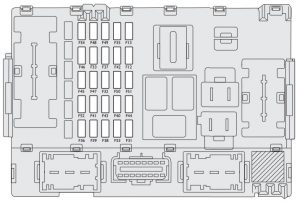

Fiat Linea - wiring diagram - fuse box diagram - dashboard
Fiat Linea – wiring diagram – fuse box diagram – dashboard
Loads Fuse Ampre rating [A]
Right dipped beam headlight F12 7,5
Left dipped beam headlight, headlight corrector F13 7,5
INT/A for relay coils (T08, T17) in engine compartment fuse box and body computer node F31 7,5
Heated Seats F32 15
Power windows control unit (left rear window motor F33 20
Power windows control unit (right rear window motor) F34 20
+15 reversing lights, brake lights control NC, air mass meter, glow plug pre-heating unit, water in diesel fuel sensor, tachometer generator, level sensor 2 F35 7,5
Power window unit (+30 for electronics) F36 7,5
+15 instrument panel, NA brake lights control F37 7,5
Body computer node F38 20
Radio node, climate control node, node Blue&Me F39 10
Heated rear window F40 30
Mirror defrosters F41 7,5
+15 brake system F42 7,5
Windscreen wiper control (two-way pump) F43 20
Cigar lighter or socket F44 15
Boot lock actuator F45 10
Power window unit (driver’s side front window motor) F47 20
Power window unit (passenger’s side front window motor) F48 20
+15 control lighting: radio on steering wheel, control panel, power mirrors, power window unit, electrochromic mirror and rain sensor F49 7,5
+15 airbag node F50 7,5
+15 cruise control, radio setup, Blu&Me setup, parking sensors, climate control node F51 7,5
Power window unit, driver’s seat adjustment motor F52 15
Body computer and instrument panel node F53 7,5

Fuse box in engine compartment

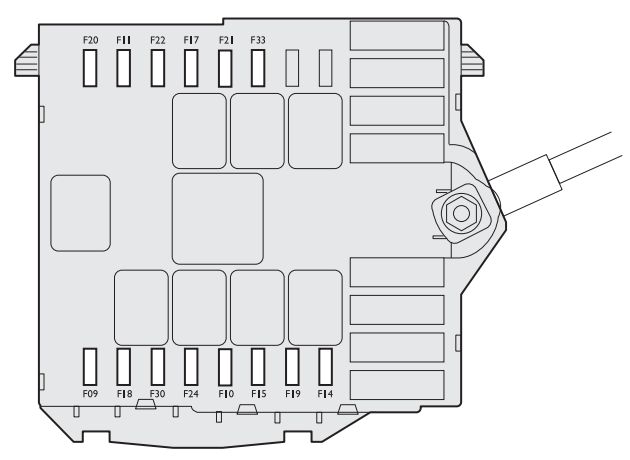

Fiat Linea - wiring diagram - fuse box diagram - engine compartment
Fiat Linea – wiring diagram – fuse box diagram – engine compartment
Loads Fuse Ampere rating [A]
Horn F10 15
Engine control system secondary loads F11 10
Right main beam headlight F14 7,5
Left beam headlight F15 7,5
Engine control system primary loads F17 10
Engine control unit F18 10
Conditioner compressor F19 7,5
Fuel pump F21 15
Engine control system primary loads (injectors, ignition coils) F22 15
Windscreen wiper motor F23 20
Spare F24
Fog lights F30 15



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
