Fiat Linea (2007 – 2013) – bulbs specification

Fiat Linea (2007 – 2013) – bulbs specification

Year of production: 2007, 2008, 2009, 2010, 2011, 2012, 2013

Bulbs specification

Fiat Linea – bulbs
Fiat Linea – bulbs

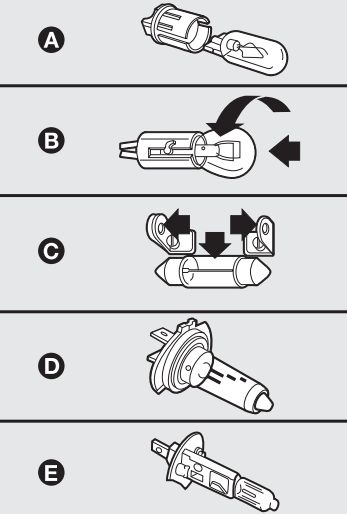

Bulb Ref. figure Type Power
Main beam headlights D H1U55W 55W
Dipped beam headlights D Ht55W 55W
Front sidelights A W5W 5W
Front fog lights (where provided) H1U55W 55W
Front direction indicators B PY21W 21W
Side direction indicators A WY5W 5W
Rear direction indicators B Y21W 21W
Side/taillights B R5W 5W
Brake lights B P21W 21W
Third brake light (additional brake light) B 5W 5W
Reversing light P21W 21W
Rear fog lights P21W 21W
Number plate light A W5W 5W
Front ceiling light with spot lights C 10W x2 10W
Rear ceiling light with movable lens C 10W 10W
Boot light A W5W 5W
Courtesy light C C5W 5W
Courtesy light C 1,2W x2 1,2W
Oddments compartment courtesy light C C5W 5W

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market
