Fiat Idea (2003 – 2012) – fuse box diagram

Fiat Idea (2003 – 2012) – fuse box diagram

Year of production: 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012

Fuse box on the dashboard

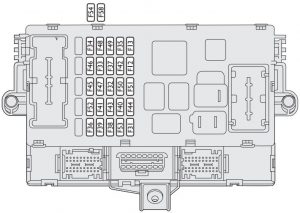

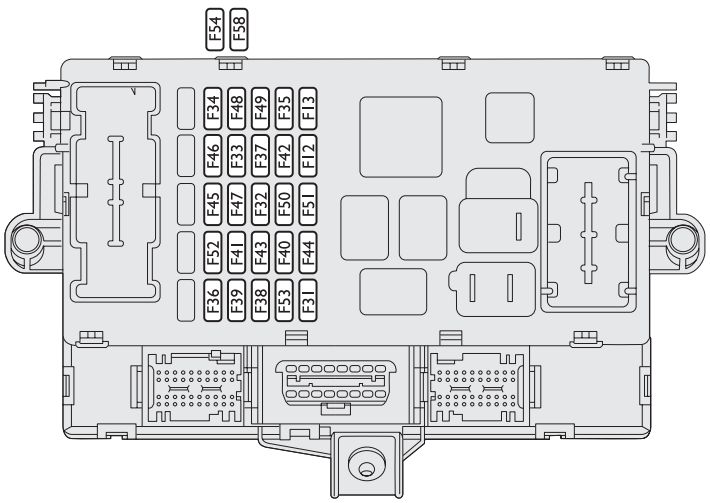

Fiat Idea – fuse box – dashboard
Fiat Idea – fuse box – dashboard
User Fuse Ampere rating [A]
Right-hand dipped beam headlight F12 7,5
Left-hand dipped beam headlight / headlight aiming device F13 7,5
Reversing lights / engine compartment control box relay coils / body computer F31 7,5
Available F32
Left rear power window F33 20
Right rear power window F34 20
+15 Cruise control, signal from switch on brake pedal for control units (*) F35 7,5
+30 Presetting for trailer control unit, rear locks front locks with single door control unit (*) F36 10
+15 Third brake light, instrument panel, brake lights (*) F37 7,5
Boot unlocking F38 20
+30 EOBD diagnostic socket, sound system, navigator, tyre pressure control unit (*) F39 10
Rear heated screen F40 30
Heated door electric mirrors F41 7,5
+15 ABS / ESP control unit (*) F42 7,5
Windscreen wiper/washer F43 30
Cigar lighter / current socket on tunnel F44 15
Heated seats F45 15
Boot current socket F46 15
Driver’s door control unit power supply (power window, lock F47 20
Passenger’s door control unit power supply (power window, lock) F48 20
+15 utilities (left and central dashboard control lights, electric mirrors, heated seat control lighting, presetting for radiotelephone, navigator, rain / daylight sensors, parking sensor control unit, sunroof control lighting) (*) F49 7,5
Airbag control unit F50 7,5
+15 Tyre pressure control unit, ECO / Sport control (*) F51 7,5
Rear screen wiper/washer F52 15
+30 Direction indicators, hazard lights, instrument panel (*) F53 7,5

(*) +30 = battery directive positive terminal (not under key)

(*) +15 = positive terminal under key

Fuse box in engine compartment

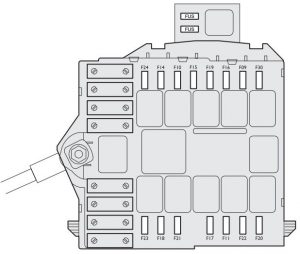

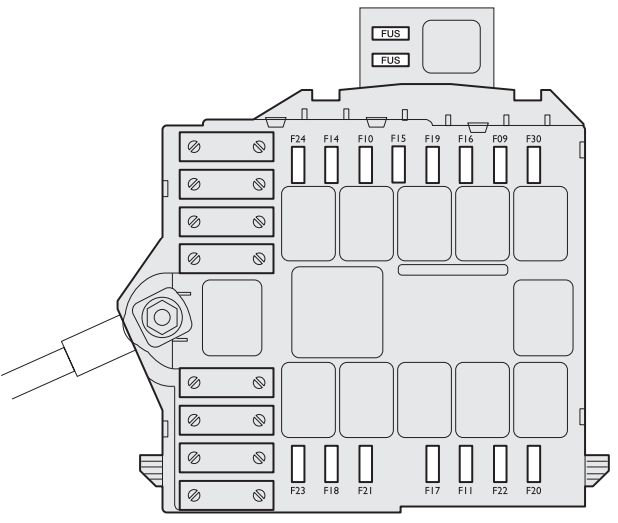

Fiat Idea – fuse box – engine compartment
Fiat Idea – fuse box – engine compartment
User Fuse Ampere rating [A]
Headlight washer fluid F09 20
Horn F10 15
Electronic injection secondary services F11 15
Right main beam headlight F14 7,5
Left main beam headlight F15 7,5
Electronic injection primary services F17 10
+30 Engine control unit / Radiator electric fan remote control switch (1.9 Multijet) (*) F18 10
Compressor F19 7,5
Free F20
Fuel pump F21 15
Electronic injection primary services (1.2 16V, 1.4 16V) F22 15
Electronic injection primary services (Multijet engine) F22 20
Electronic injection primary services (petrol engine) F22 15
+30 Dualogic gearbox (*) F23 30
+15 Electric power steering (*) F24 7,5
Front fog lights F30 15

(*) +30 = battery directive positive terminal (not under key)

(*) +15 = positive terminal under key

Optional fusebox (on auxiliary bracket)

User Fuse Ampere rating [A]
+30 Outside radio amplifier (*) F54 15
+30 Sunroof (*) F58 20

(*) +30 = battery directive positive terminal (not under key)

(*) +15 = positive terminal under key

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market
