Fiat Idea (2003 – 2012) – bulbs specification

Fiat Idea (2003 – 2012) – bulbs specification

Year of production: 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012

Fiat Idea – bulbs
Fiat Idea – bulbs

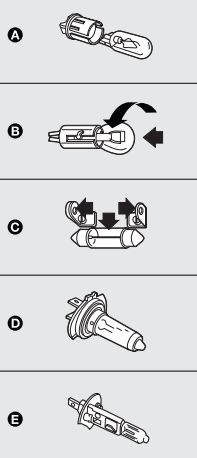

Bulb Ref. Figure Type Power
Main beam headlights E H1 55W
Dipped beam headlights D H7 55W
Front side lights A W5W 5W
Front fog lights (where provided) E H1 55W
Front direction indicators B PY21W 21W
Side direction indicators A WY5W 5W
Rear direction indicators B PY21W 21W
Taillights B P21/5W 21W/5W
Brake lights B P21/5W 21W/5W
Third brake light (additional brake lights) A W5W 5W
Reversing light B P21W 21W
Rear fog lights B P21W 21W
Number plate lights C C5W 5W
Front ceiling light A W5W 10W
Rear ceiling light A W5W 10W
Rear ceiling lights (with sunroof) A W5W 5W
Boot light A W5W 5W

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market
