Fiat Ducato BASE CAMPER (from 2014) – fuse box diagram

Fiat Ducato BASE CAMPER (from 2014) – fuse box diagram

Year of production: 2014, 2015, 2016

Fuse box on the dashboard

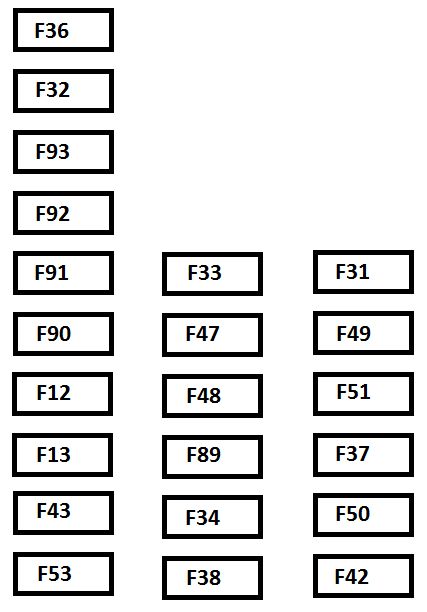

Fiat Ducato – fuse box – under dashboard
Fiat Ducato BASE CAMPER – fuse box – dashboard
Deviced protected Fuse Ampere rating [A]
Right dipped beam headlight F12 7,5
Left dipped headlight F13 7,5
Engine compartment control unit relay, dashboard control unit relay (+key) F31 5
Lighting of roof lights in the passenger compartment (+battery) F32 7,5
Battery monitoring sensor for Start&Stop versions (+battery F33 7,5
Minibus interior lights (emergency) F34 7,5
Radio, climate control, alarm, tachograph, battery disconnecting control unit, Webasto timer (+battery F36 10
Brake light control (main), third brake light, instrument panel (+key) F37 7,5
Door lock (+battery) F38 20
Windscreen wiper (+key) F43 20
Driver’s side electric window F47 20
Passenger side electric window F48 20
Parking sensor control unit, radio, steering wheel controls, central control panel, left control panel, auxiliary panel, battery disconnecting control unit (+key) F49 5
Climate control, power steering control unit, reverse lights, diesel filter water sensor, flow meter, tachograph (+key) F51 5
Instrument panel (+battery) F53 7,5
Absent F89
Left main beam headlight F90 7,5
Right main beam headlight F91 7,5
Left fog light F92 7,5
Right fog light F93 7,5

Engine compartment fuse box

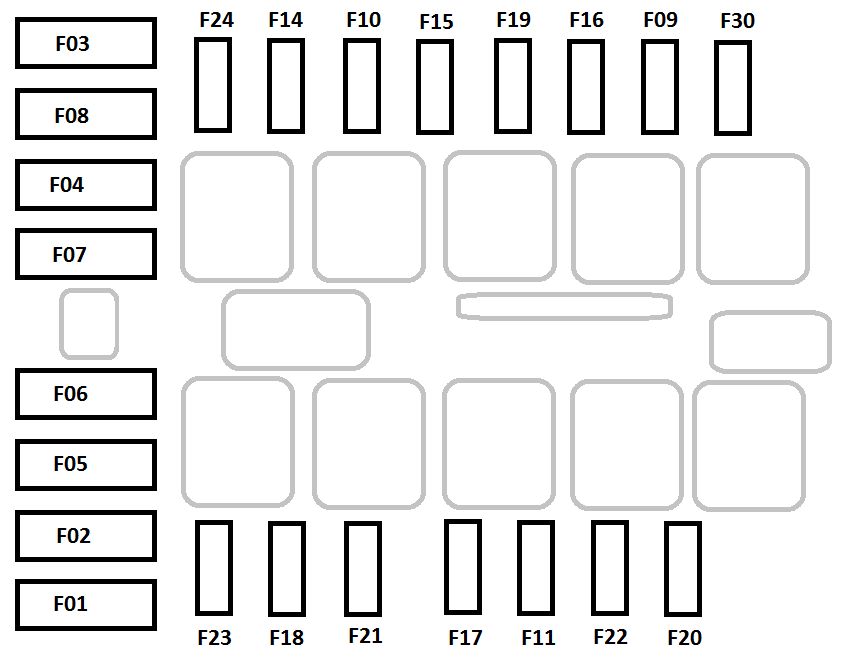

Fiat Ducato – fuse box – engine compartment
Fiat Ducato BASE CAMPER – fuse box – engine compartment
Device protected Fuse Ampere rating [A]
Ignition switch (+battery) F03 30
Heated filter F04 40
Vaporiser for Puma engine/Passenger compartment ventilation with Webasto, robotised gearbox pump (+battery) F05 20/50
Engine cooling high speed fan (+battery F06 40*60
Engine cooling low speed fan (+battery) F07 40/50/60
Passenger compartment fan (+key) F08 40
Rear power socket (+battery) F09 15
Horn F10 15
Power socket (+battery) F14 15
Cigar lighter (+battery) F15 15
Powertrain Control Module, robotised gearbox control unit (+battery) F18 7,5
Air conditioning compressor F19 7,5
Windscreen wiper F20 30
Auxiliary control panel for mirror movement and folding (+key) F24 7,5
Mirrors demisting F30 15

Right central pillar optional fuse box

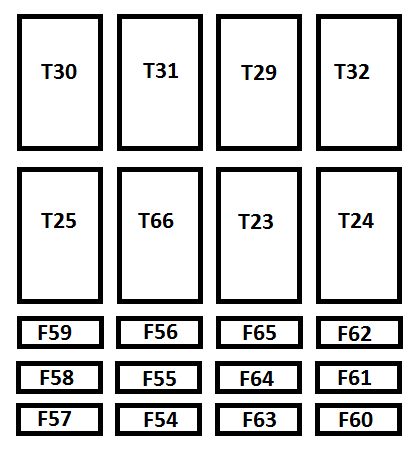

Fiat Ducato - wiring diagram - fuse box diagram - passenger compartment optional box
Fiat Ducato BASE CAMPER – fuse box – passenger compartment (optional fuse box)
Device protected Fuse Ampere rating [A]
Absent F54
Heated seats F55 15
Rear passenger power socket F56 15
Additional heater under the seat F57 10
Left heated rear window F58 15
Right heated rear window F59 15
Absent F60
Absent F61
Absent F62
Additional passenger heater control F63 10
Absent F64
Additional passenger heater fan F65 30

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
