Fiat Ducato (2006 – 2014) – fuse box diagram

Fiat Ducato (2006 – 2014) – fuse box diagram

Year of production: 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014

Fuse box on dashboard

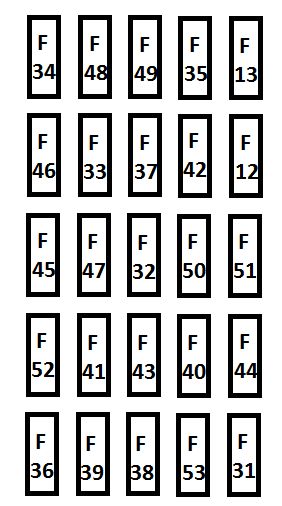

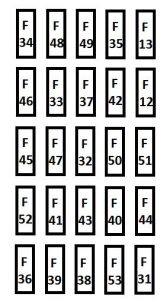

Fiat Ducato – fuse box – under dashboard
Fiat Ducato – fuse box – under dashboard
Users Fuse Ampere rating [A]
Right dipped beam headlight F12 7,5
Left dipped beam headlight, Headlight aiming device F13 7,5
Engine compartment fuse box relay, dashboard fuse box relay (+key F31 7,5
Minibus internal lights (emergency) F32 10
Rear current outlet F33 15
Absent F34
Reversing lights, sevotronic control unit, Water in diesel fuel filter sensor, (+key) F35 7,5
Central door locking (+ battery) F36 7,5
Brake lights (main), Third brake light, Instrument panel (+key) F37 7,5
Dashboard control unit relay (+ battery) F38 10
EOBD socket, Sound System, A/C control, Alarm, Chronotachograph, Webasto timer (+battery) F39 10
Left-hand heated window, Driver’s mirror defroster F40 15
Right-hand heated window, Passenger’s mirror defroster F41 15
ABS, ASR, ESP, Brake light control (secondary) (+key) F42 7,5
Windscreen wiper (+key) F43 30
Zapalniczka, Gniazdko prądowe przednie F44 20
Control on driver’s door, Controls on passenger’s door F45 7,5
Absent F46
Driver’s power window F47 20
Passenger’s power window F48 20
Sound System, Driver’s power window, Dashboard controls, Alarm control unit, Rain sensor (+key) F49 7,5
Airbag (+key) F50 7,5
A/C control, Cruise control, Chronotachograph (+key) F51 7,5
Optional fuse box relay F52 7,5
Instrument panel, Rear fog lights (+battery) F53 7,5

Fuse box in engine compartment

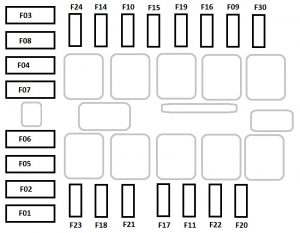

Fiat Ducato – fuse box – engine compartment
Fiat Ducato – fuse box – engine compartment
Users Fuse Ampere rating [A]
ABS pump (+battery) F01 40
Glow plug heating (+battery) F02 50
Ignition switch (+battery F03 30
Webasto control unit (+battery) F04 20
Passenger’s compartment ventilation with Webasto (+battery) F05 20
Engine cooling fan high speed (+battery) F06 40/60
Engine cooling fan low speed (+battery) F07 40/50
Passenger’s compartment fan (+key) F08 40
Headlight washer pump F09 20
Horn F10 15
E.i. system (secondary services) F11 15
Right main beam headlight F14 7,5
Left main beam headlight F15 7,5
E.i. system (+key) F16 7,5
E.i. system (primary services) F17 10
Engine control unit (+battery) F18 7,5
Conditioner compressor F19 7,5
Headlight washer pump F20 30
Fuel pump F21 15
E.i. system (primary services) F22 20
ABS solenoid valves F23 30
Automatic transmission 8 (+key) F24 15
Front fog lights F30 15

Right central post optional fuse box

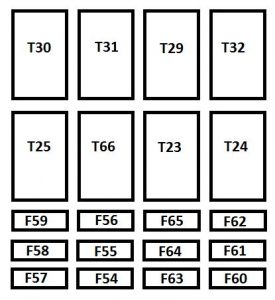

Fiat Ducato – fuse box – passenger compartment (optional box)
Fiat Ducato – fuse box – passenger compartment (optional box)
Users Fuse Ampere rating [A]
Absent F54
Heated seats F55 15
Rear passenger’s current outlet F56 15
Additional heater under seat F57 10
Sidelights F58 10
Self-levelling suspensions (+battery) F59 7,5
Absent F60
Absent F61
Absent F62
Passenger’s additional heater contro F63 10
Absent F64
Passenger’s additional heater fan F65 30

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
