Dodge Journey (2014 – 2017) – fuse box diagram

Dodge Journey (2014 – 2017) – fuse box diagram

Year of production: 2014, 2015, 2016, 2017

Power outlet fuses

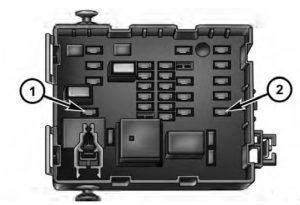

Dodge Journey – fuse box – power outlet fuses
Dodge Journey – fuse box – power outlet fuses
Cavity Ampere rating [A] Description
1 F103 20 Power Outlet Console Bin & Power Outlet Console Rear
2 F102 20 Cigar Lighter Instrument Panel & Power Outlet Left Rear Cargo Area

Interior Fuses

The interior fuse panel is located on the passenger side under the instrument panel.

Cavity Cartridge fuse Mini fuse Description
F100 30 110V AC Inverter – If Equipped
F101 10 Interior Lights
F102 20 Cigar Lighter in Instrument Panel/Left Rear Power Outlet
F103 20 Power Outlet in Console Bin/Power Outlet in Rear of Console
F105 20 Heated Seats – If Equipped
F106 20 Rear Power Outlet
F107 10 Rear Camera – If Equipped
F108 15 Instrument Panel
F109 10 Climate Control/HVAC
F110 10 Occupant Restraint Controller
F112 10 Spare
F114 20 Rear HVAC Blower/Motor
F115 20 Rear Wiper Motor
F116 30 Rear Defroster (EBL)
F117 10 Heated Mirrors
F118 10 Occupant Restraint Controller
F119 10 Steering Column Control Module
F120 10 All Wheel Drive – If Equipped
F121 15 Wireless Ignition Node
F122 25 Driver Door Module
F123 25 Passenger Door Module
F124 10 Mirrors
F125 10 Steering Column Control Module
F126 10 Audio Amplifier
F127 20 Trailer Tow – If Equipped
F128 15 Radio
F129 15 Video/DVD – If Equipped
F130 15 Climate Control/Instrument Panel
F131 10 Passenger Assistance/Hands Free System – If Equipped
F132 10 Tire Pressure Module
F133 10 Spare



Underhood Fuses (Power Distribution Center)

The power distribution center is located in the engine compartment.

Cavity Cartridge fuse Mini fuse Description
F101 60 Interior Power Distribution Center Rail
F102 60 Interior Power Distribution Center Rail
F103 60 Interior Power Distribution Center Rail
F105 60 Interior Power Distribution Center Rail Ignition Run Relay
F106 60 Interior Power Distribution Center Rail Run/Accessory Relays
F139 40 Climate Control System Blower
F140 30 Power Locks
F141 40 Anti-Lock Brake System
F142 40 Glow Plugs – If Equipped
F143 40 Exterior Lights 1
F144 40 Exterior Lights 2
F145 30 To Body Computer – Lamp
F146 30 Spare
F147 30 Spare
F148 40 Radiator Fan Motor
F149 30 Starter Solenoid
F150 25 Powertrain Control Modules
F151 30 Headlamp Washer Motor – If Equipped
F152 25 Diesel Fuel Heater – If Equipped
F153 20 Fuel Pump
F156 10 Brake/Electronic Stability Control Module
F157 10 Power Transfer Unit Module – If Equipped
F158 10 Active Hood Module – If Equipped
F159 10 Spare
F160 20 Interior Lights
F161 20 Horn
F162 40 Cabin Heater #1/Vacuum Pump – If Equipped
F163 50 Cabin Heater #2 – If Equipped
F164 25 Powertrain Auto Shutdown
F165 20 Powertrain Shutdown
F166 20 Spare
F167 30 Powertrain Shutdown
F168 10 Air Conditioner Clutch
F169 40 Emissions – Partial Zero Emissions Vehicle Motor
F170 15 Emissions – Partial Zero Emissions Vehicle Actuators
F172 20 Spare
F173 25 Anti Lock Brake Valves
F174 20 Siren – If Equipped
F175 30 Spare
F176 10 Powertrain Control Modules
F177 20 All Wheel Drive Module – If Equipped
F178 25 Sunroof – If Equipped
F179 10 Battery Sensor
F181 100 Electrohydraulic Steering (EHPS) – If Equipped
F182 50 Cabin Heater #3 – If Equipped
F184 30 Front Wiper Motor

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
