Symbol label fuse box

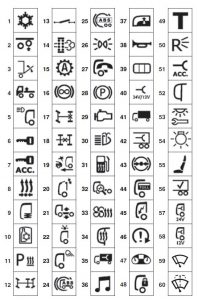

DAF XF 510 FT – symbols label fuse box
DAF XF 510 FT – symbols label fuse box
Fuse number Description
1 Air conditioning system
2 Trailing axle
3 Cargo lift active
4 ECAS manoeuvre level
5 Pre-selection main beam
6 Key
7 Ignition switch accessories
8 Heated air dryer
9 Cabin suspension
10 Refrigerator
11 No-idle heat
12 Electronically controlled multi-axle steering
13 Ignition relay
14 DPF regeneration
15 Transmission automatic mode
16 Retarder
17 Cross-axle differential lock
18 Inter-axle differential lock
19 Advanced emergency brake system
20 Roof hatch
21 ECAS 2 levels / air glide
22 Rotating (overhead warning) light
23 Working light
24 ABS truck
25 ABS trailer
26 Marker lights
27 Truck phone
28 Parking brake
29 Engine
30 Headlight washer
31 Fuel heater
32 On-board diagnostics
33 Interior heating
34 Exterior rear-view mirror heating, vertical type
35 Outlet BBM
36 Radio
37 Window lift, power operated
38 Horn
39 Switches
40 Converter 24V / 12V
41 Body Builder Module
42 Power supply trailer
43 Air processing unit
44 Toll Collect
45 Vehicle Intelligence Centre and/or electrical systems general
46 Engine start (turnover)
47 DAF Instrument Panel
48 Theft protection
49 Tachograph
50 Reverse light
51 Outlet accessories
52 Exterior main rear-view mirror adjustment
53 Tool compartment or service light
54 Electric light controller and/or master light
55 Seat
56 Trailer recognition
57 Outlet cabin 24V
58 Outlet cabin 12V
59 Windscreen wiper
60 Windscreen washer and wiper

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and marke
