Chevrolet Tahoe (1997) – fuse box diagram

Year of production: 1997

Instrument panel fuse block

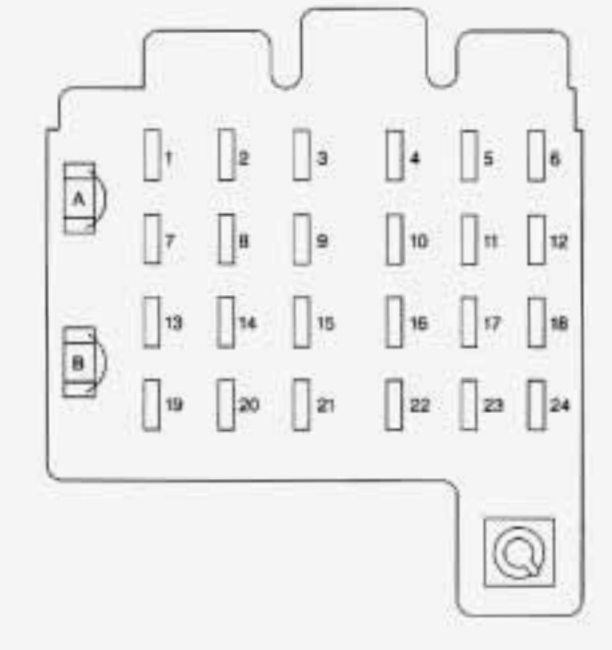

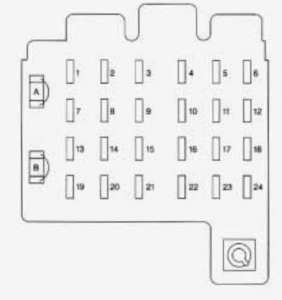

Chevrolet Tahoe - wiring diagram - fuse box -  instrument panel
Chevrolet Tahoe – wiring diagram – fuse box –
instrument panel
Fuse position Circuit protected
1 Stop/TCC Switch, Buzzer, CHMSL, Hazard Lamps, Stop Lamps
2 Transfer Case
3 Courtesy Lamps, Cargo Lamp, Glove Box Light, Dome/RDG Lamps, Vanity Mirrors, Power Mirrors
4 Instrument Cluster, DRL Relay, Lamp Switch, Keyless Entry, Low Coolant Module, Illuminated Entry Module, DRAC (Diesel Engine)
5 Rear Comfort Controls
6 Cruise Control
7 Auxiliary Power Outlet
8 Air Bag System
9 License Lamp, Parking Lamps, Taillamps, Roof Marker Lamps, Tailgate Lamps, Front Sidemarkers, Fog Lamp Relay, Door Switch Illumination, Fender Lamps, Headlamp Switch Illumination
10 Air Bag System
11 Wiper Motor, Washer Pump
12 A/C, A/C Blower, High Blower Relay
13 Power Amp, Rear Liftglass, Cigarette Lighter, Door Lock Relay, Power Lumbar Seat
14 4WD Indicator, Cluster, Front and Rear Comfort Controls, Instrument Switches, Radio Illumination, Chime Module
15 DRL Relay, Fog Lamp Relay
16 Front and Rear Turn Signals, Back-up Lamps, BTSI Solenoid
17 Radio (Ignition)
18 4WALNCM, ABS, Cruise Control
19 Radio (Battery)
20 PRNDL, Automatic Transmission, Speedometer, Check Gages, Warning Lights
21 Variable Effort Steering
22 Not Used
23 Rear Wiper, Rear Wash Pump
24 Front Axle, 4WD Indicator Lamp, TP2 Relay (Gasoline Engine)
A Power Door Lock, Six-Way Power Seat, Keyless Entry Module
B Power Windows

Underhood fuse/relay center

The underhood fuse/relay center is located in the rear of the engine compartment near the brake fluid reservoir.

Chevrolet Tahoe - wiring diagram - fuse box -  underhood
Chevrolet Tahoe – wiring diagram – fuse box –
underhood

Name Circuit protected
ECM-B Fuel Pump, PCMNCM
 RR DEFOG Rear Window Defogger
IGN-E Auxiliary Fan Relay Coil, A/C Compressor Relay, Hot Fuel Module
FUEL SOL Fuel Solenoid (Diesel Engine)
GLOW PLUG Glow plugs (Diesel Engine)
HORN Horn, Underhood Lamps
AUX FAN Auxiliary Fan
ECM-1 Injectors, PCMNCM
A/C Air Conditioning
ENG-1 Ignition Switch, EGR, Canister Purge, EVRV Idle Coast Solenoid, Heated 02, Fuel Heater (Diesel Engine), Water Sensor (Diesel Engine)
LIGHTING Headlamp and Panel Dimmer Switch, Fog and Courtesy Fuses
BATT Battery, Fuse Block Busbar
IGN-A Ignition Switch
IGN-B Ignition Switch
ABS Anti-Lock Brake Module
BLOWER Hi Blower and Rear Blower Relays
STOP/HAZ Stoplamps
 WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
