Chevrolet Tahoe (1996) – fuse box diagram

Year of production: 1996

Fuse block

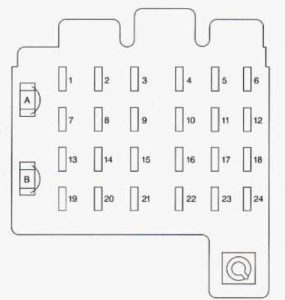

Chevrolet Tahoe - wiring diagram - fuse box
Chevrolet Tahoe – wiring diagram – fuse box
Fuse position Circuit protected
1 Stop/TCC Switch, Buzzer, CHMSL, Hazard Lamps, Stop Lamps
2 Transfer Case
3 Courtesy Lamps, Cargo Lamp, Glove Box Lamp, Dome/Reading Lamps, Vanity Mirrors, Power Mirrors
4 Instrument Cluster, DRL Relay, Lamp Switch, Keyless Entry, Low Coolant Module, Illuminated Entry Module, DRAC (Diesel Engine)
5 Rear Comfort Controls
6 Cruise Control
7 Auxiliary Power Outlet
8 Air.Bag System
9 License Lamp, Parking Lamps, Taillamps, Roof Marker Lamps, Tailgate Lamps, Front Sidemarkers, Fog Lamp Relay, Door Switch Illumination, Fender Lamps, Headlamp Switch Illumination
10 Air Bag System
11 Wiper Motor, Washer Pump
12 A/C, A/C Blower, High Blower Relay
13  Power Amp, Rear Liftglass, Cigarette Lighter, Door Lock Relay, Power Lumbar Seat
14 4WD Indicator, Cluster, Front and Rear Comfort Controls, instrument
Switches, Radio Illumination, Chime Module
15 DRL Relay, Fog Lamp Relay
16 Front and Rear Turn Signals, Back-up Lamps, BTSI Solenoid
17 Radio (Ignition)
18 4WAL/VCM, ABS, Cruise Control
19 Radio (Battery)
20 PRNDL, Automatic Transmission, Speedometer, Check Gages, Warning Lights
21 Not Used
22 Not Used
23 Rear Wiper, Rear Wash Pump
24  Front Axle, 4WD Indicator Lamp, TP2 Relay (Gasoline Engine)
A Power Door Lock, Six-Way Power Seat, Keyless Entry Module
B Power Windows
 WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
