Chevrolet SSR (2003 – 2004) – fuse box diagram

Year of production: 2003 ,2004

Center Console Fuse Block

The center console fuse block is located on the center console between the two seats.

Chevrolet SSR - wiring diagram - fuse box diagram - center console
Chevrolet SSR – wiring diagram – fuse box diagram – center console
Fuses Usage
03 Rear Window Defogger
04 Truck Body Controller
05 Rear Window Defogger
06 Driver Seat Module
07 Truck Body Controller
09 Blank
10 Driver’s Door Module, Power Mirrors
11 Amplifier
12 Blank
13 Daytime Running Lamps (DRL)
14 Driver’s Side Rear Parking Lamp
16 Center High-Mounted Stop Lamp
17 Passenger’s Side Rear Parking Lamp
19 Blank
20 Blank
21 Locks
22 Blank
23 Blank
25 Blank
26 Blank
27 HomeLink® System
28 Roof Door Module
29 Blank
31 Truck Body Controller
32 Remote Keyless Entry (RKE)
33 Windshield Wipers
34 Stoplamps
35 Blank
36 Climate Control System, Driver’s Door Unlock
37 Front Parking Lamps
38 Driver’s Side Turn Signal
39 Climate Control System
40 Truck Body Controller
41 Radio
42 Trailer Parking Lamps
43 Passenger’s Side Turn Signal
44 Blank
46 Accessory Power Outlets
47 Ignition
48 Blank
49 Blank
50 Truck Body Controller, Ignition
51 Brakes
52 Blank



Relays Usage
18 Locks
24 Unlock
30 Parking Lamps
45 Rear Window Defogger, Outside Power Heated Mirrors



Circuit Breaker Usage
01 Roof & Door Module
02 Roof Pump
08 Power Seats



Engine Compartment Fuse Block

The fuse block is located under the hood in the engine compartment on the driver’s side of the vehicle.

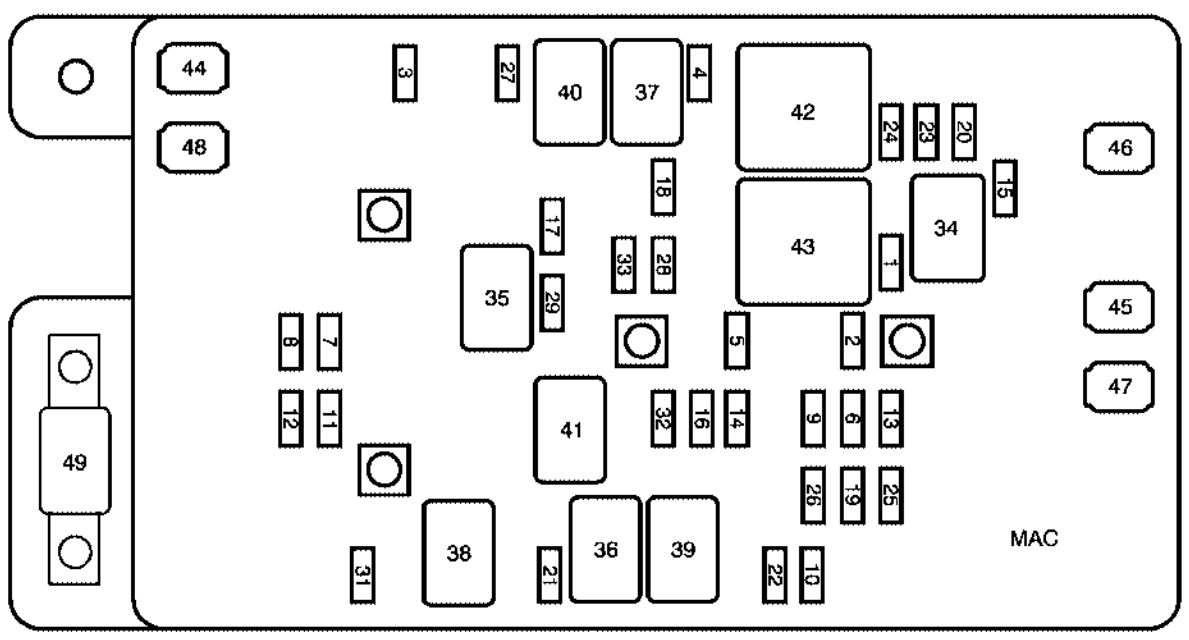

Chevrolet SSR - wiring diagram - fuse box diagram - engine compartment
Chevrolet SSR – wiring diagram – fuse box diagram – engine compartment
Fuses Usage
1 Air Conditioning
2 Automatic Transmission Shift Lock Control System
3 Canister, Fuel System
4 Ignition
5 Starter
6 Ignition
7 Driver’s Side High Beam Headlamp
8 Passenger’s Side High Beam Headlamp
9 Ignition
10 Instrument Panel Cluster, Driver Information Center (DIC)
11 Driver’s Side Low Beam Headlamp
12 Passenger’s Side Low Beam Headlamp
13 Powertrain Control Module (PCM)
14 Air Bag System
15 Truck Body Controller
16 Truck Body Control, Ignition
17 Driver’s Side Stoplamp/Turn Signals
18 Passenger’s Side Stoplamp/Turn Signals
19 Back-up Lamps
20 Throttle Actuator Control (TAC)
21 Fog Lamps
22 Horn
23 Injector A
24 Injector B
25 Oxygen Sensor A
26 Oxygen Sensor B
27 Windshield Washer
28 Cigarette Lighter
29 Powertrain Control Module (PCM)
30 Blank
31 Cargo Cover Release
32 Hazard Warning Flashers
33 Stoplamps
44 Engine Cooling Fan
45 Climate Control Fan
46 Ignition A
47 Ignition B
48 Anti-lock Brake System (ABS)
49 Body Fuse



Relays Usage
34 Air Conditioning
35 Fuel Pump
36 Fog Lamps
37 High Beam Headlamps
38 Cargo Cover Release
39 Horn
40 Windshield Washer
41 Headlamp Driver Module
42 Ignition
43 Starter



Relay Center

There is a relay center located in the area where the convertible top is stored when it is open.

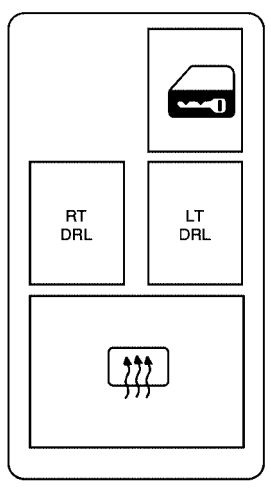

Chevrolet SSR - wiring diagram - fuse box diagram - relay center
Chevrolet SSR – wiring diagram – fuse box
diagram – relay center
Relays Usage
Driver’s Door Lock
RT DRL Passenger’s Side Daytime Running Lamps (DRL)
LT DRL Driver’s Side Daytime Running Lamps (DRL)
Rear Window Defogger

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
