Year of production: 1995

Instrument Panel Fuse Block

Some fuses are in a fuse block on the passenger side of the instrument panel.

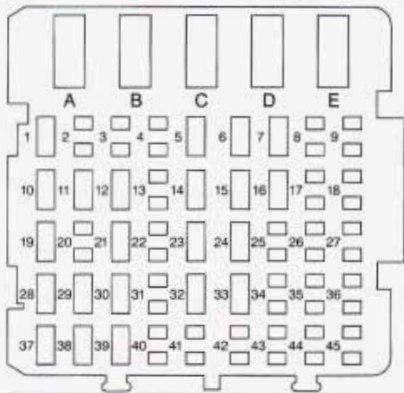

Chevrolet Monte Carlo - wiring diagram - fuse box - instrument panel
Chevrolet Monte Carlo – wiring diagram – fuse box – instrument panel
Circuit Breaker Usage
C Power Windows
D Power Seats
Fuse Description
1 CIGAR LIGHTER — Instrument Panel and Console Cigar Lighter
10 I/P ELECTRONICS BATTERY FEED — Chime Module, Electronic Brake Control Module (EBCM), Theft Deterrent Module, Radio
11 AIR BAG #2 — Sensing and Diagnostic Module (SDM), Starter Relay
12 ANTI-THEFT — Theft Deterrent Module
14 HVAC BLOWER MOTOR — Blower Motor Relay
15 HVAC #1 — Air Temperature Valve Motor,  Daytime Running Lamps Module (with DRL), HVAC Control Assembly, Multifunction Lever Cruise Control Switch
16 REAR DEFOG — HVAC Control Assembly Rear Window Defogger Switch
19 ER ACCESSORY #1– Door Lock  Switches
21 AIR BAG #1 — Sensing and Diagnostic Module (SDM)
23 STOPLAMPS — TCC/Brake Switch
24 HVAC #2 — HVAC Control Assembly, Solenoid Box
28 CTSY LAMPS — Vanity Mirrors, Defogger Relay, I/P Compartment Lamp, Trunk Courtesy Lamp, Header Courtesy and Reading Lamp, US Lighted Rearview Mirror, Dome Lamp
29 WIPER — Wiper Switch
30 TURN SIGNAL — Turn Signal Flasher
32 POWER LOCKS — Door Lock Relay, Keyless Entry Receiver
33 ABS — Electronic Brake Control Module (EBCM), ABS Relay
38 RADIO — Radio
39 I/P ELECTRONICS IGNITION FEED — Headlamp Switch, Cruise Control Cut-Out Switch, Sensing and Diagnostic Module (SDM), TCCBrake Switch, Instrument Cluster, Chime Module, Keyless Entry Receiver, Daytime Running Lamps Module (with DRL)

Underhood Electrical Center – Passenger Side

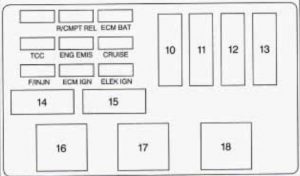

Chevrolet Monte Carlo - wiring diagram - fuse box - underhood electrical center passenger side
Chevrolet Monte Carlo – wiring diagram – fuse box – underhood electrical center passenger side
Fuse Description
R/CMPT REL Remote Trunk Release
ECM BAT Powertrain Control Module (PCM), Fuel Pump/Oil Pressure Switch, Fuel Pump Relay, Fan Cont #1 Relay
TCC Automatic Transaxle, Transaxle Range Switch (VIN M only)
ENG EMIS Generator, Digital Exhaust Recirculation (DEGR) Valve, Evaporative Emissions (EVAP) Canister Purge Valve Solenoid, Heated Oxygen Sensor, Fan Cont #2 Relay, A/C CMPR Relay (VIN M only)
CRUISE Cruise Control Module, A/C CMPR Relay (VIN X only)
F/INJN Fuel Injectors, High Resolution 24X Crankshaft Position Sensor, Camshaft Position Sensor
ECM IGN Powertrain Control Module (PCM), Mass Air Flow (MAF) Sensor (VIN X only)
ELEK IGN Electronic Ignition (EI) Control Module
10 I/P Fuse Block
11 FAN CONT #1 Relay
12 Passenger Side Underhood Electrical Center and I/P Fuse Blocks: Fuses 5, 14,23 and 32
13 FAN CONT #2 Relay and I/P Fuse Block: Fuse 16, Power Seat Circuit Breaker “D”
16 FAN CONT #2 — Secondary Cooling Fan (Passenger Side)
17 FAN CONT #1– Primary Cooling Fan (Driver Side)
18 Not Used

Underhood Electrical Center — Driver Side

Fuse Usage
FOG LPS Fog Lamps
PARK LPS Headlamp Switch
HORN Horn Relay, Underhood Lamp
VAR P/S EVO Steering
10 IGN SW2 — VP Fuse Block: PWR WDO and Circuit Breaker “D”; Passenger Side Underhood Electrical Center: TCC and ENG EMIS Fuses
11 IGN SW1 — VP Fuse Block: Radio, Wiper, HVAC, ABS and Turn Signal Fuses; Passenger Side Underhood Electrical Center: F/IJN, ECM IGN and ELEK IGN Fuses
12 HD LPS — Circuit Breaker to Headlamp Switch
13 ABS — ABS Relay
Relay Description
14 ABS — Anti-Lock Brake System


 WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
