Chevrolet Malibu (2010) – fuse box diagram

Year of production: 2010

Instrument Panel Fuse Block

The instrument panel fuse block is located at on the lower front side of the console, on the passenger side of the vehicle.

Chevrolet Malibu -  wiring diagram - fuse box diagram -  instrument panel
Chevrolet Malibu – wiring diagram – fuse box diagram – instrument panel
Fuses Usage
POWER MIRRORS Power Mirrors
EPS Electric Power Steering
RUN/CRANK Cruise Control Switch, Passenger Airbag Status Indicator
HVAC BLOWER HIGH Heating Ventilation Air Conditioning Control Diagnostic Link Connector (Battery)
PEDAL Not Used
WIPER SW Windshield Wiper/Washer Switch
IGN SENSOR Ignition Switch
STRG WHL ILLUM Steering Wheel Illumination
NOT INSTALLED Not Used
RADIO Audio System
INTERIOR LIGHTS Interior Lamps
NOT INSTALLED Not Used
POWER WINDOWS Power Windows
HVAC CTRL (IGN) Heating Ventilation Air Conditioning Control (Ignition)
HVAC BLOWER Heating Ventilation Air Conditioning Blower Switch
DOOR LOCK Door Locks
ROOF/HEAT SEAT Sunroof, Heated Seat
NOT INSTALLED Not Used
NOT INSTALLED Not Used
AIRBAG (BATT) Airbag (Battery)
SPARE FUSE HOLDER Spare Fuse Holder
SPARE FUSE HOLDER Spare Fuse Holder
SPARE FUSE HOLDER Spare Fuse Holder
SPARE FUSE HOLDER Spare Fuse Holder
FUSE PULLER Fuse Puller



Engine Compartment Fuse Block

The engine compartment fuse block is located on the driver’s side of the vehicle, near the battery.

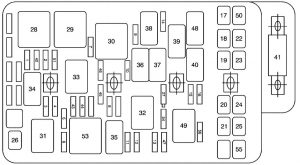

Chevrolet Malibu -  wiring diagram - fuse box diagram - engine compartment
Chevrolet Malibu – wiring diagram – fuse box diagram – engine compartment
Fuses Usage
1 Air Conditioning Clutch
2 Electronic Throttle Control
3 Not Used
4 Transmission Control Module Ignition 1
5 Mass Airflow Sensor (LY7)
6 Emission
7 Left Headlamp Low-Beam
8 Horn
9 Right Headlamp Low-Beam
10 Front Fog Lamps
11 Left Headlamp High-Beam
12 Right Headlamp High-Beam
13 Engine Control Module BATT
14 Windshield Wiper
15 Antilock Brake System (IGN 1)
16 Engine Control Module IGN 1
17 Cooling Fan 1
18 Cooling Fan 2
19 Run Relay, Heating, Ventilation, Air Conditioning Blowe
20 Body Control Module 1
21 Body Control Module Run/Crank
22 Rear Electrical Center 1
23 Rear Electrical Center 2
24 Anti-lock Brake System
25 Body Control Module 2
26 Starter
41 Electric Power Steering
42 Transmission Control Module Battery
43 Ignition Module (LZ4, LZE, LE9 & LE5); Injectors, Ignition Coils Odd (LY7)
44 Injectors (LZ4, LZE, LE9 & LE5); Injectors, Ignition Coils Even (LY7)
45 Post Cat 02 Sensor Heaters (LY7, LZ4 & LZE)
46 Daytime Running Lamps
47 Center High-Mounted Stoplamp
50 Driver Power Window
51 Not Used
52 AIR Solenoid
54 Regulated Voltage Control
55 DC/AC Inverter
56 Antilock Brake System BATT



Relays Usage
28 Cooling Fan 1
29 Cooling Fan Mode Series/Parallel
30 Cooling Fan 2
31 Starter
32 Run/Crank, Ignition
33 Powertrain
34 Air Conditioning Clutch
35 High Beam
36 Front Fog Lamps
37 Horn
38 Low-Beam Headlamps
39 Windshield Wiper 1
40 Windshield Wiper 2
48 Daytime Running Lamps
49 Stoplamps
53 AIR Solenoid

Rear Compartment Fuse Block

The rear compartment fuse block is located in the trunk of the vehicle.  Access the fuse block through the trunk panel on the driver’s side of the rear cargo area.

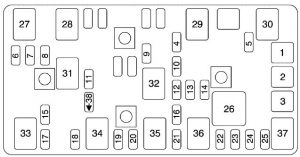

Chevrolet Malibu -  wiring diagram - fuse box diagram - rear compartment
Chevrolet Malibu – wiring diagram – fuse box diagram – rear compartment
Fuses Usage
1 Passenger Seat Controls
2 Driver Seat Controls
3 Not Used
4 Not Used
5 Emission 2, Canister Vent Solenoid
6 Park Lamps, Instrument Panel Dimming
7 Not Used
8 Not Used
9 Not Used
10 Sunroof Controls
11 Not Used
12 Not Used
13 Audio Amplifier
14 Heated Seat Controls
15 Not Used
16 Remote Keyless Entry (RKE) System, XM™ Satellite Radio, UGDO
17 Back-up Lamps
18 Not Used
19 Not Used
20 Auxiliary Power Outlets
21 Not Used
22 Trunk Release
23 Rear Defog
24 Heated Mirror
25 Fuel Pump



Relays Usage
26 Rear Window Defogger
27 Park Lamps
28 Not Used
29 Not Used
30 Not Used
31 Not Used
32 Not Used
33 Back-up Lamps
34 Not Used
35 Not Used
36 Trunk Release
37 Fuel Pump
38 (Diode) Cargo Lamp

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
