Chevrolet Malibu (2000) – fuse box diagram

Year of production: 2000

Instrument Panel Fuse Block-Left

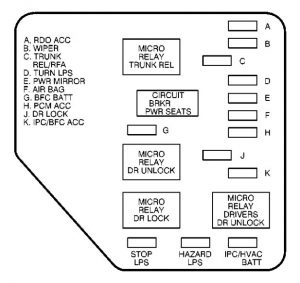

Chevrolet Malibu - wiring diagram - fuse box diagram -  instrument panel (left side)
Chevrolet Malibu – wiring diagram – fuse box diagram – instrument panel (left side)
Fuse Usage
A Radio
B Wipers
C Trunk relase and remote lock control
D Turn signal
E Power mirrors
F Air bag
G Body Function Control Module
H Powertrain Control Module
J Door Locks
K Body Function Control Module, Cluster
STOP LPS Stoplamps
HAZARD LPS Hazard Lamps
IPC/HVAC BATT Cluster, Climate Control
MICRO RELAY TRUNK REL Remote Trunk Release
CIRCUIT BRKR PWR SEATS Power Seats
MICRO RELAY DR UNLOCK Door Locks
MICRO RELAY DR LOCK Door Locks
MICRO RELAY DRIVERS DR UNLOCK Door Locks



Instrument Panel Fuse Block-Right

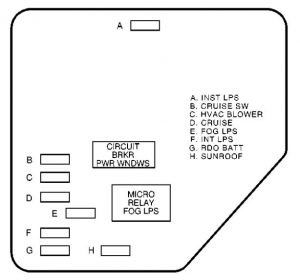

Chevrolet Malibu -  wiring diagram - fuse box diagram -  instrument panel (right side)
Chevrolet Malibu – wiring diagram – fuse box diagram – instrument panel (right side)
Fuse Usage
A Instrument Panel Lights, Dimmer
B Cruise Control Switches
C Climate Control System
D Cruise Control
E Fog Lamps
F Interior Lamps, Body Function Control Module
G Radio
H Sunroof
CIRCUIT BRKR PWR WNDWS Power Windows
MICRO RELAY FOG LPS Fog Lamps



Engine Compartment Fuse Block

The engine compartment fuse block is located on the driver’s side of the engine compartment, near the air cleaner filter.

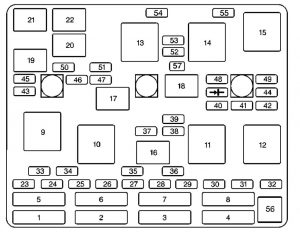

Chevrole Malibu -  wiring diagram - fuse box diagram - engine compartment
Chevrole Malibu – wiring diagram – fuse box diagram – engine compartment
Maxi-fuses Usage
1 Ignition Switch
2 Right Electrical Center-Fog Lamps, Radio, Body Function Control Module, Interior Lamps
3 Left Electrical Center -Stoplamps, Hazard Lamps, Body Function Control Module, Cluster, Climate Control System
4 Anti-Lock Brakes
5 Ignition Switch
6 A.I.R.
7 Left Electrical Center-Power Seats, Power Mirrors, Door Locks, Trunk Release and Remote Lock Control
8 Cooling Fans #1



Mini-Relays Usage
9 Rear Defog
10 A.I.R.
11 Not Used
12 Cooling Fan #1
13 HVAC Blower (Climate Control)
14 Cooling Fan #2
15 Cooling Fans



Micro-Relays Usage
16 Air Conditioning Compressor
17 Not Used
18 Fuel Pump
19 Automatic Light Control
20 Automatic Light Control
21 Horn
22 Daytime Running Lamps



Mini-Fuses Usage
23 Spare Fuse Holder
24 Spare Fuse Holder
25 Spare Fuse Holder
26 Spare Fuse Holder
27 Spare Fuse Holder
28 Spare Fuse Holder
29 Spare Fuse Holder
30 Spare Fuse Holder
31 Spare Fuse Holder
32 Spare Fuse Holder
33 Rear Defog
34 Accessory Power Outlets, Cigar Lighter
35 Generator
36 Not Used
37 Air Conditioning Compressor, Body Function Control Module
38 Automatic Transaxle
39 Powertrain Control Module, Ignition
40 Anti-Lock Brakes
41 Ignition System
42 Back-Up Lamps, Brake Transaxle Shift Interlock
43 Horn
44 Powertrain Control Module
45 Parking Lamps
46 Rear Defog, Daytime Running Lamps, Climate Control System
47 Powertrain Control Module, Exhaust Gas Recirculation, Heated O2 Sensor
48 Fuel Pump, Injectors
49 Not Used
50 Right-Hand Headlamp
51 Left-Hand Headlamp
52 Cooling Fan
53 HVAC Blower (Climate Control )
54 Not Used
55 Cooling Fan #2 Ground
56 Fuse Puller
57 Not Used

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
