Chevrolet Impala (2006 – 2013) – fuse box diagram

Chevrolet Impala (2006 – 2013) – fuse box diagram

Year of production: 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013

Engine Compartment Fuse Box

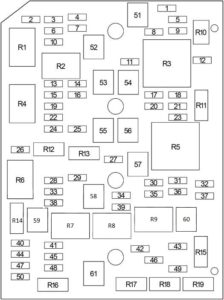

Chevrolet Impala – fuse bpx diagram – engine compartment
Chevrolet Impala – fuse bpx diagram – engine compartment

A
Protected Component
1 10 Power Drop, Crank
2 15 except 3.6L: Fuel Pump and Sender Assembly
3 10 Body Control Module (BCM), Ignition Switch, Theft Deterrent Module (TDM)
4 10 Body Control Module (Interior Lamps)
5 10 Instrument Panel Cluster (IPC), HVAC Control Module, Inflatable Restraint Passenger Air Bag On/Off Indicator, Inflatable Restraint Sensing and Diagnostic Module (SDM)
6 10 Body Control Module (Back-Up Lamp, Center High Mount Stop Lamp)
7 15 Body Control Module (Interior Lamps, Panel Dimmer Switch)
8 2 Steering Wheel Controls
9 10  –
10 10 Data Link Connector (DLC), Remote Control Door Lock Receiver (RCDLR), Instrument Panel Cluster (IPC), HVAC Control Module
11 10 Vehicle Communication Interface Module (VCIM (OnStar))
12  –
13 15 Engine Control Module (ECM), Electronic Throttle Control
14 10 A/C Compressor Clutch
15 20 3.5L (LZE, LZ4), 3.9L (LZ9, LZG, LGD, LZG): Fuel Injectors
20 5.3L (LS4): Fuel Injectors (1-3-5-7), Ignition Coils (1-3-5-7)
15 3.6L (LFX): Fuel Injectors
16 15 Secondary Air Injection Pump Solenoid Relay
17 15 Engine Control Module (ECM), Transmission ControlModule (TCM)
18 10 Transmission
19 15 Heated Oxygen Sensors, Evaporative Emission (EVAP) Canister Purge Solenoid Valve
20 25  –
21 10 Engine Control Module (ECM), Ignition
22 20 3.5L (LZE, LZ4), 3.9L (LZ9, LZG, LGD, LZG): Ignition Control Module
20 5.3L (LS4): Fuel Injectors (2-4-6-8), Ignition Coils (2-4-6-8)
15 3.6L (LFX): Ignition Control Module
23 20  –
24 15 Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor, Valve Lifter Oil Manifold (VLOM) Assembly, Secondary Air Injection (AIR) Pump Relay (SS), Secondary Air Injection (AIR) Solenoid Relay (SS), A/C Compressor Clutch Relay, Cooling Fan Relay No.1, Cooling Fan Relay No.2, Cooling Fan Relay No.3
25 20 3.6L (LFX): Brake Booster Pump (Vacuum Pump)
26 25 Wiper
27 10 Heated Mirror
28 15 Right Spot Lamp
29 25 Accessory Power Outlets
30 10 Body Control Module (Regulated Voltage Control Sensor)
31 15 Body Control Module (Passenger Side Turn Signal Lamp)
32 10 Driver Side Parking Lamp (Marker, Park/Turn Signal Lamp, Tail Lamp, Tail/Stop and Turn Signal)
33 15 Left Spot Lamp
34 30  –
35 20 Radio
36 15 Body Control Module (Driver Side Turn Signal Lamp)
37 10 Passenger Side Parking Lamp (Marker, Park/Turn Signal Lamp, Tail Lamp, Tail/Stop and Turn Signal)
38 15  –
39 15 3.6L (LFX): Fuel System Control Module
40 10 Left Headlamp (Low Beam)
41 15 Headlamp Module
42 15 except 3.6L: Windshield Washer Fluid Pump
43 15 Daytime Running Lamps
44 10 Right Headlamp (Low Beam)
45 15 Daytime Running Lamps
46 15 Front Fog Lamps
47 10 Left Headlamp (High Beam)
48 15 3.6L (LFX): Windshield Washer Fluid Pump
49 15 Horn
50 10 Right Headlamp (High Beam)
51 30 Blower Motor Control Module
52 60 Passenger Compartment Fuse Box
53 60 Antilock Brake System (ABS) Motor
54 40 Starter
55 60 Secondary Air Injection Pump Relay
56 60 Antilock Brake System (ABS) Motor
57 40 Rear Window Defogger
58 60 Passenger Compartment Fuse Box
59 30 Cooling Fan Relay No.1
60 30 Cooling Fan Relay No.2, Cooling Fan Relay No.3
61 50  –
Relay
R1 except 3.6L: Fuel Pump
3.6L (LFX): Brake Booster Pump (Vacuum Pump)
R2 A/C Compressor
R3 Starter
R4 Powertrain Control Module (PCM) / Engine Control Module (ECM)
R5 Rear Window Defogger
R6  –
R7 Cooling Fan (No.3)
R8 Cooling Fan (No.2)
R9 Cooling Fan (No.1)
Non-Serviceable
R10 Ignition
R11 Parking Lamps
R12 Wiper
R13 Wiper (High Speed)
R14 Headlamp (Low Beam)
R15 Daytime Running Lamps
R16 Headlamp (High Beam)
R17 Windshield Washer Fluid Pump
R18 Front Fog Lamps
R19 Horn

Passenger Compartment Fuse Box

Chevrolet Impala – fuse bpx diagram – passenger compartment
Chevrolet Impala – fuse bpx diagram – passenger compartment

A
Protected Component
1 10 ’09 Automatic Transmission Shift Lock Control Solenoid (with Floor Shifter), Inside Rearview Mirror, Sunroof Motor
2 25 Audio Amplifier
3 10 Evaporative Emission (EVAP) Canister Vent Solenoid
4 10 ’09 Rear Compartment Lid Release Actuator
5 20 Accessory Power Outlet – (Center Seat, Center Console 1, Center Console 2, Center Console Compartment)
6 10 Digital Radio Receiver
7 10 Inflatable Restraint Sensing and Diagnostic Module (SDM), Inflatable Restraint Front Passenger Presence System (PPS) Module
8 20 Heated Seat Control Module, Emergency Vehicle Rear Compartment Lid Lamps Relay
9 20 Sunroof Motor
10 2 Outside Rearview Mirror Switch
11 15  –
12 25 Door Locks
Circuit Breaker
CB1 25 Power Window
CB2 25 Power Seats
Relay
R2 Rear Compartment Lid Release Actuator
Non-Serviceable
R1 Accessory
R3 Power Door Lock (Lock)
R4 Driver Door Lock Actuator (Unlock)
R5 Power Door Lock (Unlock)



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
