Chevrolet Express (1995 – 1996) – fuse box diagram

Year of production: 1995, 1996

Instrument Panel Fuse Block

The fuse block access door is on the driver’s side of the instrument panel below the hood release lever.

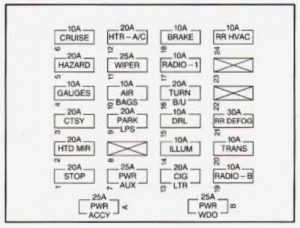

Chevrolet Express - wiring diagram - fuse box -  instrument panel
Chevrolet Express – wiring diagram – fuse box –
instrument panel
Fuse position Fuse name Circuit protected
1 STOP Stop/CHMSL, Stoplamps
2 HTD MIR Electric Heated Mirrors
3 CTSY Courtesy Lamps, Dome/RDG Lamps, Vanity Mirrors, Power Mirrors
4 GAUGES IP Cluster, DRL Relay, DRL Module, HDLP Switch, Keyless Entry Illumination, Low Coolant Module, CHIME Module, DRAB Module
5 Hazard Hazard LampsKHIME Module
6 CRUISE Cruise Control
7 PWR AUX Auxiliary Power Outlet, ALDL
8 Crank
9 PARK LPS License Plate Lamp, Parking Lamps, Taillamps, Front Sidemarkers, Glove Box Ashtray
11 WIPER Wiper Motor, Washer Pump
12 HTR-A/C NC, A/C Blower, High Blower Relay, HTD Mirror
13 CIG LTR Power Amp, Cigarette Lighter, Door Lock Relay
14 ILLUM LP Cluster, HVAC Controls, RR HVAC Controls, IP Switches, Radio Illumination, Door Switch Illumination
15 DRL DRL Relay
16 TURN B/U Front Turn, RR Turn, Back-up Lamps, BTSI Solenoid
17 RADIO- 1 Radio (Ign, Accy)
18 BRAKE 4WAL PCM, ABS, Cruise Control
19 RADIO-B Radio (Battery), Power Antenna
20 TRANS PRNDL, Automatic Transmission
21 RR FOG Rear Window Defog
22 Not Used
23 Not Used
24 RR HVAC RR HVAC Controls, HIGH, MED, LOW Relays
A* PWR ACCY Power Door Lock, Six-Way Power Seat, Keyless Entry Illumination Module
B* PWR WDO Power Windows
* Circuit Breaker

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
