Chevrolet Corvette (2010) – fuse box diagram

Year of production: 2010

Instrument panel fuse block

The instrument panel fuse block is located on the passenger’s side of the vehicle, under the instrument panel and under the toe-board.

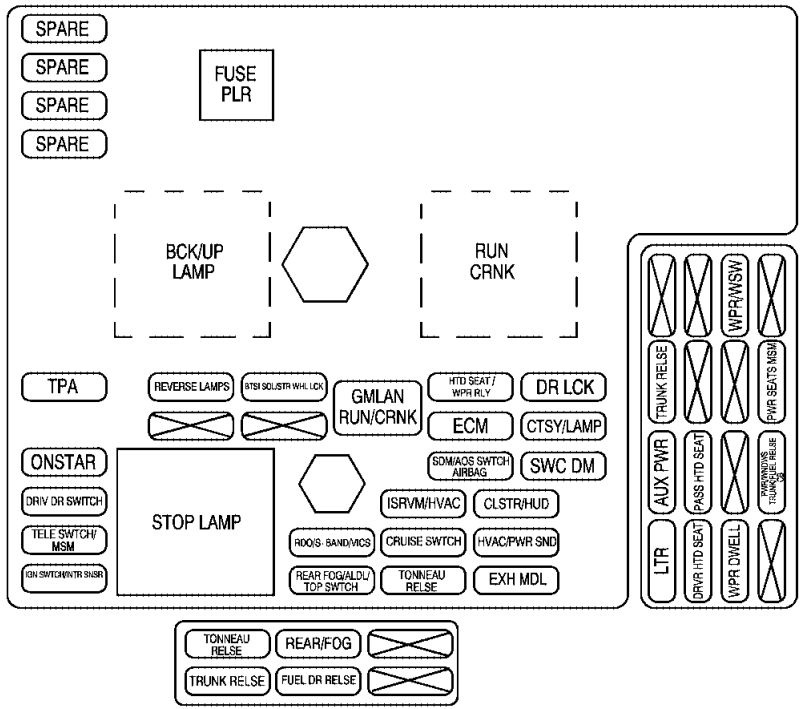

Chevrolet Corvette - wiring diagram - fuse box - instrument panel
Chevrolet Corvette – wiring diagram – fuse box –
instrument panel
Fuses Usage
BCK/UP LAMP Reverse Lamps
BLANK Not Used
BLANK Not Used
BTSI SOL/STR WHL LCK Brake Transmission Shift Interlock, Steering Wheel Column Lock
CLSTR/HUD Cluster, Heads-Up Display
CRUISE SWITCH Cruise Control Switch
CTSY/LAMP Courtesy Lamp
DR LCK Door Locks
DRIV DR SWITCH Driver Door Switch
ECM Engine Control Module (ECM)
EXH MDL Exhaust Module (Z06 & ZR1), Spare (Coupe and Convertible)
GM LAN RUN/CRNK GM LAN Devices
HTD SEAT/WPR RLY Heated Seat, Wiper Relays
HVAC/PWR SND Heating. Ventilation/Air Conditioning, Power Sounder
IGN SWTCH/INTR SNSR Ignition Switch, Intrusion Sensor
ISRVM/HVAC Electric Inside Rearview Mirror, Heating, Ventilation, Air Conditioning
ONSTAR OnStar®
RDO/S-BAND/VICS Radio, S-Band
REAR FOG/ALDL/TOP SWTCH Rear Fog Lamp, Assembly Line Diagnostic Link Connector, Convertible Top Switch
REVERSE LAMPS Reverse Lamps
RUN CRNK Run/Crank Relay
SDM/AOS SWTCH AIRBAG Sensing and Diagnostic Module, Automatic Occupant Sensing Module, Airbag
SPARE Spare
SPARE Spare
SPARE Spare
SPARE Spare
STOP LAMP Stop Lamp
SWC DM Steering Wheel Dimming
TELE SWTCH/MSM Telescope Switch, Memory Seat Module
TONNEAU RELSE Tonneau Release
TPA Tonneau Pulldown Actuator
BLANK Blank
BLANK Blank
FUEL DR RELSE Fuel Door Release
REAR/FOG Rear Fog Lamps
TONNEAU RELSE Tonneau Release
TRUNK RELSE Trunk Release
AUX PWR Auxiliary Power
BLANK Not Used
BLANK Not Used
BLANK Not Used
BLANK Not Used
BLANK Not Used
BLANK Not Used
BLANK Not Used
DRVR HTD SEAT Driver Heated Seat
LTR Cigarette Lighter
PASS HTD SEAT Passenger Heated Seat
PWR SEATS MSM Power Seats, Memory Seat Module
PWR/ WNDWS/TRUNK/FUEL RELSE Power Windows, Trunk, Fuel Door Release
TRUNK RELSE Trunk Release
WPR DWELL Wiper Dwell
WPR/WSW Windshield Wiper/Washer

 Engine compartment fuse block

There is one fuse block in the engine compartment located on the passenger’s side of the vehicle.

Chevrolet Corvette - wiring diagram - fuse box - engine compartment
Chevrolet Corvette – wiring diagram – fuse box – engine compartment
Fuse Usage
1 Transmission Control Module/Transmission
2 Horn, Alternator Sense
3 Antilock Braking System (ABS)/Real Time Damping
4 Wiper
5 Stoplamps/Back-Up Lamps
6 Oxygen Sensor
7 Battery Main 5
8 Parking Lamps
9 Powertrain Relay Input/Electronic Throttle Control
10 Manual Transmission Solenoids
11 Antilock Braking System
12 Odd Numbered Fuel Injectors
13 Electronic Suspension Control (Option)
14 Canister Purge Solenoid, Mass Air Flow Sensor
15 Air Conditioner Compressor
16 Even Numbered Fuel Injectors
17 Windshield Washer
18 Headlamp Washer
19 Passenger Side Low-Beam Headlamp
20 Fuel Pump (except ZR1)
21 Driver Side Low-Beam Headlamp
22 Front Fog Lamp
23 Passenger Side High-Beam Headlamp
24 Driver Side High-Beam Headlamp
56 Engine Control Module (ECM)/Transmission Control Module (TCM)/Easy Key Module
J-Style Fuses Usage
25 Cooling Fan
26 Battery Main 3
27 Anti-Lock Brake System
28 Heating/Ventilation/Air Conditioning Blower
29 Battery Main 2
30 Starter
31 Audio Amplifier
32 Intercooler Pump
33 Battery Main 1
Micro-Relays Usage
34 Horn
35 Air Conditioning Compressor
36 Windshield Washer
37 Parking Lamps, Foglamps
38 Front Fog Lamp
39 High-Beam Headlamp
46 Headlamp Washer
55 Fuel Pump (except ZR1)
Mini-Relays Usage
40 Rear Defog
41 Windshield Wiper High/Low
42 Windshield Wiper Run/Accessory
43 Crank
44 Powertrain Ignition 1
45 Windshield Wiper On/Off
47 Low-Beam Headlamp



Spare Fuses Usage
48 Spare
49 Spare
50 Spare
51 Spare
52 Spare
53 Spare
54 Fuse Puller
Diodes Usage
Diode 1
Wiper
Diode 2



 WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
