Chevrolet Cavalier (1995) – fuse box diagram

Year of production: 1995

Inside Vehicle Fuse Block

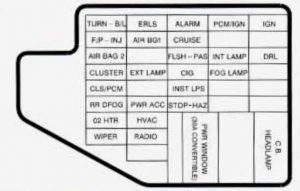

Chevrolet Cavalier - wiring diagram - fuse box - inside vehicle
Chevrolet Cavalier – wiring diagram – fuse box – inside vehicle
Fuse Circuitry
AIR BG 1 Air Bag-DERM (Diagnostic Energy Reserve Module) Power
AIR BG 2 Air Bag-DERM Crank Signal
ALARM Alarm Module: Illuminated Entry, Warning Chimes
CIG Cigar Lighter, Horn, Diagnostic Connector
CLS/PCM Instrument Cluster, Powertrain Control Module
CLUSTER Instrument Cluster, Anti-Lock Brake System
CRUISE Cruise Control
DRL Daytime Running Lamps
ERLS Automatic Transaxle, Brake-Transaxle Shift Interlock, A/C Compressor, Cruise Control, Exhaust Gas Recirculation (2.2L Engine), Cannister Purge Valve, A/C High Pressure Switch (2.3L Engine)
EXT LAMP Park Lamps, Side Marker Lamps, Instrument Panel Lamp
F/P-INJ Fuel Pump, Fuel Injectors
FLSH-PAS Flash To Pass Lamps
HEADLAMP Headlamps
HVAC Heater/A/C Control, Rear Window Defogger, Anti-lock Brake System, Engine Cooling Fan (2.2L Engine), Engine Vent Heater (2.3L Engine)
IGN Engine Ignition
INST LPS Instrument Panel Lamps
INT LAMP Alarm Module:  illuminated Entry, Warning Chimes, Overhead Lamps, Map/Reading Lamps, Glove Box Lamp, Trunk Lamp, Radio, Power Mirrors
02 HTR Rear 02 HTR Sensor Heater (2.3L Engine, Cal. Auto)
PCM/IGN Powertrain Control Module
PWR ACC Power Door Lock
PWR WINDOW Power Windows, Power Sunroof
RADIO Radio
RR DFOG Rear Window Defogger
STOP-HAZ Stop Lamps, Hazard Lamps
TURN-B/U Turn Signal Lamps, Backup Lamps
WIPER Windshield Wipers, Windshield Washers

Under Hood Fuse Block

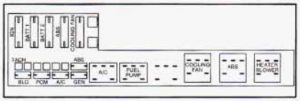

Chevrolet Cavalier - wiring diagram - fuse box under hood
Chevrolet Cavalier – wiring diagram – fuse box under hood
Fuse Circuitry
A/C A/C Compressor (2.3L Engine)
ABS Anti-Lock Brake System
ABS Electronic Variable Orifice Steering, Anti-Lock Brake System
BATT 1 Power ACC/Stop Lamp Circuits
BATT 2 Lighting Circuits
BLO Heater/ A/C Blower
COOLING FAN Engine Cooling Fan
GEN Generator-Voltage Sense
IGN Ignition Switch Circuits
PCM Powertrain Control Module
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
