Chevrolet Camaro (2016) – fuse box diagram

Year of production: 2016

Engine Compartment Fuse Block

Chevrolet Camaro - wiring diagram - fuse box - engine compartment
Chevrolet Camaro – wiring diagram – fuse box – engine compartment
Fuses Usage
F1 ABS pump
F2
F3 Driver power seat
F4 Cooling fan
F5 Passenger power seat
F6
F7
F8
F9
F10
F11
F12 Front wiper
F13 Starter
F14 Brake vacuum pump
F15
F16 Heated seat
F17 Passenger window
F18 Body control module 4
F19 Airbag module/AOS
F20 OnStar/Navigation (if equipped)
F21 Body control module 6
F22 ABS valve
F23
F24
F25 Steering column lock
F26 Body control module 2
F27
F28 Body control module 3
F29 Body control module 8
F30 Windshield wiper
F31 Right HID headlamp
F32 Left HID headlamp
F33
F34 Horn
F35
F36 Left high-beam headlamp
F37 Right high-beam headlamp
F38 Headlamp leveling
F39
F40 Rear electrical center/Ignition
F41 Malfunction indicator lamp/Ignition
F42 Instrument panel body/Ignition
F43 Exhaust valve/Active fuel management
F44 AOS display/Ignition
F45 Sunroof
F46 Body control module 7
F47 CGM
F48
F49 Heated steering whee
F50 Fuel system control module/Ignition
F51 Exhaust valve
F52 A/C clutch
F53
F54 Coolant pump
F55
F56
F57 Engine control module/Ignition
F58 Transmission control module/Ignition
F59
F60 Transmission control module battery
F61 MAF/O2 sensor
F62 Ignition coils – odd
F63 Non-walk/O2 sensor
F64 Ignition coils – even
F65 Ignition coils – odd
F66 Engine control module 1
F67 Engine control module 2
F68
F69
F70
F71
F72
F73
F74
F75
F76
F77
Relays Usage
K1
K2 Run/Crank
K3
K4 Vacuum pump
K5
K6 Coolant pump
K7 Engine control module
K8 A/C control
K9
K10 Starter

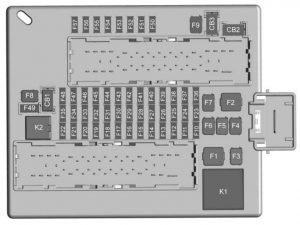

Rear Compartment Fuse Block

The rear compartment fuse block is on the right side under the trunk load floor.

Chevrolet Camaro - wiring diagram - fuse box - rear compartment
Chevrolet Camaro – wiring diagram – fuse box – rear compartment
Fuses Usage
F1 Rear defogger
F2 Front HVAC
F3 Electric parking brake
F4
F5
F6 Rear drive control module
F7 Right window 1
F8
F9 Left window 1
F10 Heated mirror 1
F11
F12 Heated steering wheel
F13
F14 HVAC control
F15
F16 Display
F17 Camera
F18
F19 Front ventilated seat 1
F20 Reverse lamps
F21
F22
F23 Body control module 1
F24
F25
F26
F27 RGB lights
F28 Passive entry/Passive start battery 1
F29 Data link connector
F30 Canister vent
F31 Memory seat module folding top
F32 Memory seat module
F33 Wireless charger
F34 Engine control module battery
F35 Fuel pump/Fuel system control module
F36
F37 Electric steering column lock
F38 Mirror window module
F39 Rear closure
F40
F41 Battery regulated voltage control
F42 SADS
F43
F44 Folding top solenoid
F45 Amplifier
F46 FPPM 22
F47 Shunt
F48
F49 Steering wheel
F50 Interior rearview mirror
F51 Camera module
F52 Rear parking assist
F53 Electronic limited-slip differential
F54 Side blind zone alert
F55 Radio controls
F56 Theft deterrent/Universal remote system
F57
Relays Usage
K1 Rear defogger
K2



Circuit Breaker Usage
CB1
CB2 Retained accessory power
CB3

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
