Chevrolet Camaro (1998) – fuse box diagram

Year of production: 1998

Main Fuse Block

Chevrolet Camaro - wiring diagram - fuse box - main fuse block
Chevrolet Camaro – wiring diagram – fuse box – main fuse block
Fuse name Usage
STOP/HAZARD

Hazard Flasher, Brake Switch Assembly

TURN B-U

Traction ControV2nd Gear Start Switch, Back-up Lamp Switch, Turn Flasher, Daytime Running Lamps (DRL) Module

PCM BATT

Powekrain Control Module (PCM), Fuel Pump Relay

RADIO ASSY

Delco Audyssey Radio Amplifier Remote CD player (trunk)

TAIL LTS

Daytime Running Lamps (DRL) Module, Headlamp Switch

HVAC

HVAC Selector Switch, Rear Defogger Switch/Timer

PWR ACCY

ParkLampRelay,Hatch Release Relay, Power Mirror Switch, Radio, Shock Sensor, Instrument Cluster

COURTESY

Body Control Module (BCM)

GAGES

Body Control Module (BCM), Brake Switch Assembly’(BTS1). Instrument Cluster, Daytime Running Lamps (DRL) Module, Auxiliary Accessory Wire

AIR BAG

Air Bag System, Dual Pole Arming Sensor

CIGAR/ACCY

Cigarette Lighter, Data Link Connector (DLC), Auxiliary Accessory Wire

DEFOG/SEATS

Rear Defogger Switchmimer, Power Seat

WIPER/WASH

Wiper Motor Assembly, Wiper/Washer Switch

WINDOWS

Power Windows Switch (RH, LH), Express Down Module, Convertible Top Switch

I/P DIMMER

Door Illumination Lamp (LH, RH), Headlamp Switch, Fog Lamp Switch,Instrument Cluster, HVAC Control Assembly, PRNDL Illumination Lamp, Ashtray Lamp, Radio, Steering Wheel Controls-Radio, Rear Window Defogger SwitcldTimer, Traction Control (ASR)/2nd Gear Start Switch

RADIO

Body Control Module (BCM), Radio, Amplifier, Steering Wheel Controls-Radio

Underhood Electrical Center

The two underhood fuse and relay centers are located in the engine compartment.

Fuse and Relay Center 1

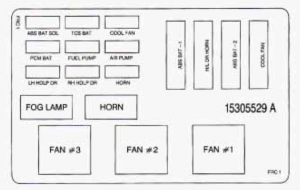

Chevrolet Camaro – wiring diagram - fuse box – underhood electrical center – Fuse and relay center 1
Chevrolet Camaro – wiring diagram – fuse box – underhood electrical center – Fuse and relay center 1
Fusename Usage
ABS BAT SOL

Anti-Lock Brake System

TCS BAT

Traction Control System

COOL FAN

Cooling Fan Control

PCM BAT

Powertrain Control Module

FUEL PUMP

Fuel Pump

AIR PUMP

Air Pump Relay and Bleed Va

LH HDLP

Headlamp Door and Module

RH HDLP

Headlamp Door and Module

HORN

Horn Relay

ABS BAT-1

Anti-Lock Brake System Module

H/L DRHORN

Horn and Headlamp Doors

ABS BAT-2

Anti-Lock Brake and Traction Control System

COOL FAN

Cooling Fan Relays

Relays

FOG LAMP

HORN

COOLING FAN#3

COOLING FAN#2

COOLING FAN#1

Fuse and Relay Center 2

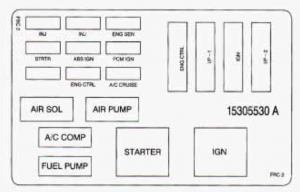

Chevrolet Camaro – wiring diagram - fuse box – underhood electrical center – Fuse and relay center 2
Chevrolet Camaro – wiring diagram – fuse box – underhood electrical center – Fuse and relay center 2
Fusename Usage
INJ

Fuel Injectors (Not Used for V6) (LH Injectors for V8 and Ignition Module)

INJ

Fuel Injectors (All for V6) (LH Injectors for V8 and Ignition Module)

ENG SEN

MassAirFlow,HeatedOxygen Sensor, Skip Shift Solenoid (V8 Only), Reverse Lockout Solenoid, Brake Switch

STRTR

Powertrain Control Module and Clutch Pedal Switch

ABS IGN

Anti-Lock Brake System Module

PCM IGN

PowertrainControlModule

ENG CTRL

IgnitionModule(V6Only), Automatic Transmission and Charcoal Canister Purge Solenoid

A/CCRUISE

Air Conditioning Compressor Relay, Cruise Control Switches and Module

ENG CTRL

EngineControls,FuelPump,PCM, A.I.R. and Cooling Fans

I/P-1

HVACBlowerControland Relay

IGN

Ignition Switch, Relay and Starter Enable Relay

I/P-2

Instrument Panel Fuse Center

Relays

AIR SOL

AIR PUMP

A/C COMP

FUEL PUMP

STARTER

IGN

 WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
