Chevrolet Camaro (1997) – fuse box diagram

Year of production: 1997

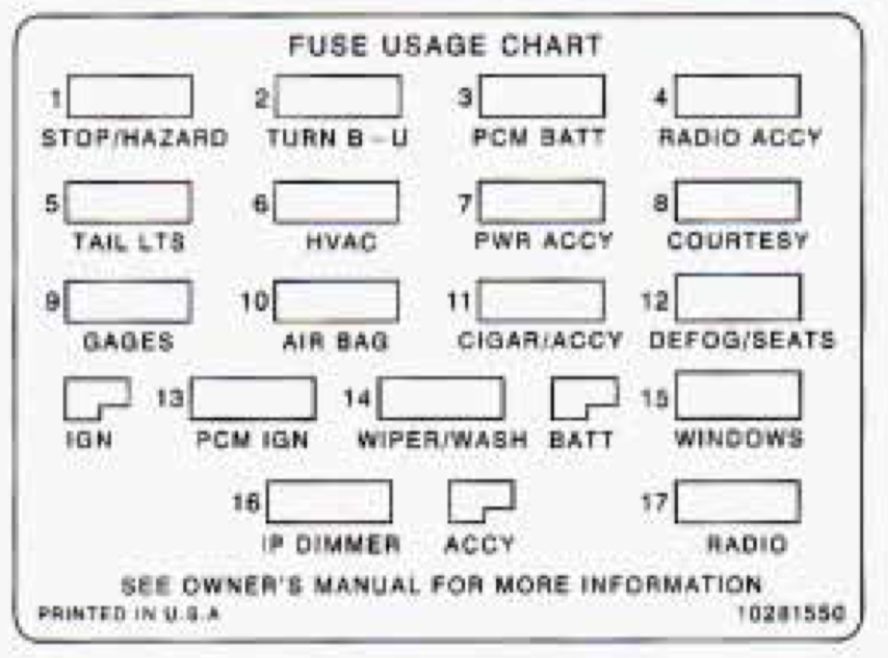

Main Fuse Block

Chevrolet Camaro - wiring diagram - fuse box - main fuse block
Chevrolet Camaro – wiring diagram – fuse box – main fuse block
Fuse name Usage
STOP/HAZARD

Hazard Flasher, Brake Switch Assembly

TURN B-U

Traction ControV2nd Gear Start Switch, Back-up Lamp Switch, Turn Flasher, Daytime Running Lamps (DRL) Module

PCM BATT

Powekrain Control Module (PCM), Fuel Pump Relay

RADIO ASSY

Delco Audyssey Radio Amplifier Remote CD player (trunk)

TAIL LTS

Daytime Running Lamps (DRL) Module, Headlamp Switch

HVAC

HVAC Selector Switch, Rear Defogger Switch/Timer

PWR ACCY

ParkLampRelay,Hatch Release Relay, Power Mirror Switch, Radio, Shock Sensor, Instrument Cluster

COURTESY

Body Control Module (BCM)

GAGES

Body Control Module (BCM), Brake Switch Assembly’(BTS1). Instrument Cluster, Daytime Running Lamps (DRL) Module, Auxiliary Accessory Wire

AIR BAG

Air Bag System, Dual Pole Arming Sensor

CIGAR/ACCY

Cigarette Lighter, Data Link Connector (DLC), Auxiliary Accessory Wire

DEFOG/SEATS

Rear Defogger Switchmimer, Power Seat

PCM IGN

Powertrain Control Module (PCM), EVAP Canister Purge Vacuum Switch, EVAP Canister Purge Valve, Transmission

WIPER/WASH

Wiper Motor Assembly, Wiper/Washer Switch

WINDOWS

Power Windows Switch (RH, LH), Express Down Module, Convertible Top Switch

I/P DIMMER

Door Illumination Lamp (LH, RH), Headlamp Switch, Fog Lamp Switch,Instrument Cluster, HVAC Control Assembly, PRNDL Illumination Lamp, Ashtray Lamp, Radio, Steering Wheel Controls-Radio, Rear Window Defogger SwitcldTimer, Traction Control (ASR)/2nd Gear Start Switch

RADIO

Body Control Module (BCM), Radio, Amplifier, Steering Wheel Controls-Radio

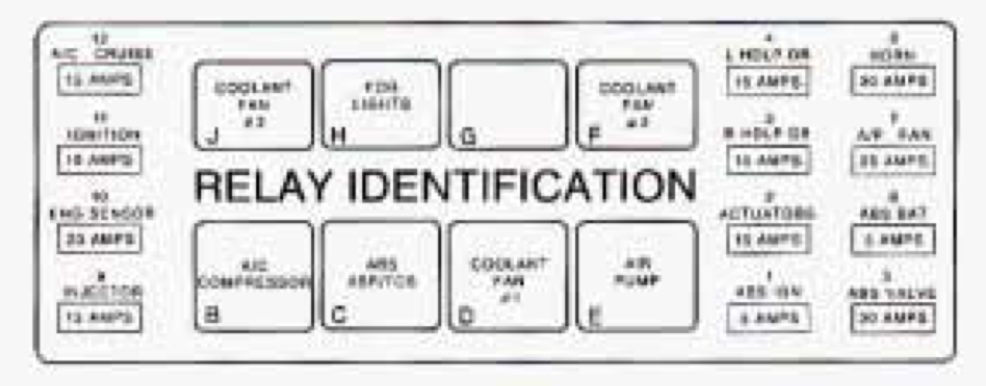

Underhood Electrical Center

Chevrolet Camaro - wiring diagram - fuse box - underhood electrical center
Chevrolet Camaro – wiring diagram – fuse box – underhood electrical center
Fusename Usage
ABS IGN

Anti-Lock Brake System

ACTUATORS

Daytime Running Lamp Module, Headlamp Switch, Cooling Fan Relay, Exhaust, Gas Recirculation, EVAP Canister Purge Solenoid

R HDLP DR

Headlamp Door Module

L HDLP DR

Headlamp Door Module

ABS VLV

Brake Pressure Valve

ABS BAT

Electronic Brake Control Module

AIR PUMP

Air Pump (V8) Relay, Pump, Bleed Valve and Cooling Fan

HORN

Horn Relay

INJECTOR

Fuel Injector

ENG SEN

Mass Air Flow, Heated Oxygen Sensor, Reverse Lockout Solenoid, Skip Shift Solenoid, Automatic Transmission, Brake Switch

IGNITION

V6 VIN K: ElectronicIgnition Control Module

V8 VIN P: Ignition Coil Module, Crankshaft Position Sensor, Ignition Coil

A/C-CRUISE

Air Conditioning Compressor Relay; Cruise Control Switches and Module

Relays Usage
B

Air Conditioning Compressor

C

Anti-Lock Brake System/Traction Control System (ASR)

D

Cooling Fan 1

E

Air Pump

F

Cooling Fan 2

G

H

Fan Lamps

J

Cooling Fan 3

 WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
